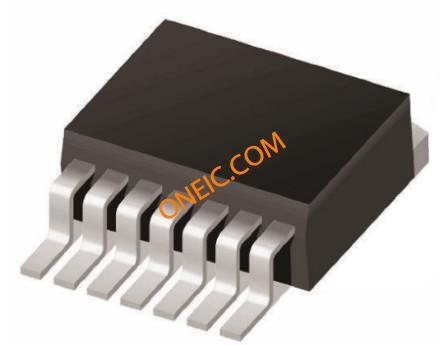

TPS74401KTWT
| 制造商 | Texas Instruments Incorporated |
| 描述 | LDO Regulator Pos 0.796V to 3.6V 3A 8-Pin(7+Tab) PFM T/R LDO Regulator Pos 0.796V to 3.6V 3A 8-Pin(7+Tab) TO-263 T/R IC REG LDO ADJ 3A 7DDPAK TPS74401KTWT, Low Dropout Voltage Regulator, Adjustable 3A, 0.796 to 3.6V ±1%, 8-Pin PFM, TO-263 LDO Voltage Regulators Sgl Output 3.0A Adj. Prgrmbl SoftStart LDO, REG, 5.5VIN, 3A, ADJ, 7D2PAK Single Output LDO, 3.0A, Adj.(0.8 to 3.3V), Fast Transient Response, Programmable Soft Start Texas Instruments , LDO 调节器, 可调整的输出, 3A, 0.796 → 3.6 V输出 ±1%, 8针 D2PAK封装 |
| 分类 |
商业参数
| 其他名称 | 296-21507-6 | 产品类别 | LDO Voltage Regulators |
| 标准包装数量 | Tape & Reel, Cut Tape | 工厂包装数量 | 50 |
| 标准封装名称 | D2PAK | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电源抑制比 | 50 | 噪声 | 13 |
| 输出端 | 1 | 精度 | ±1 % |
| 输出类型 | Adjustable | 额定功率 | 5320 W |
| 稳压器类型 | Linear | 额定电压 | 0.8 V |
| 电源调整率 | 0.0005(Typ) %/V | 负载调整率 | 0.03(Typ) %/A |
| 输出电流 | 3 A | 供电电压 | 0.12@3A V |
| 输出数量 | 1 | 电压基准 | 0.804 V |
| 稳压器拓扑 | Positive Adjustable | 电容 @ Vr, F | Cap Free Ceramic |
| 最大额定电流 | Catalog | 稳压器数量 | 1 |
| 最小输入电压 | 0.8 V ~ 3.6 V | 输出电压（最大） | :3.6V |
| 输出电压精度 | �1 % | 最大功耗 | 5320 mW |
| 静态电流 (Iq) | 3 | 直流输入电压（最小） | 0.8 V |
| 静态电流（最大） | 3.5A | 电压负载调整率 | 1 % |
| 输入偏置电流（最大） | 2 mA | 输出电压（最小/固定） | :800mV |
| 最大持续工作电压（MCOV） | :5.5V | ||
机械参数
| 宽度 | 8.89mm | 高度 | 4.44mm |
| 长度 | 10.1mm | 重量 | 0.001 |
| 包装方式 | Tape and Reel | 插片宽度 | Tab |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :7 |
| 封装形式 | 8PFM | 冷却的封装 | PFM, TO-263 |
| 材料表面处理 | :- | 总长度 | 10.41(Max) |
| 包装数量 | TO-263 | 尺寸/外形 | 10.1 x 8.89 x 4.44mm |
| 位数 | 8 | 外壳尺寸-插件 | 4.65(Max) |
| 供应商器件封装 | DDPAK/TO-263-7 | ||
产品信息
| 类型 | LDO | 系列 | TPS74401 |
| 产品特性 | Current Limit|Thermal Protection | 极性 | Positive |
| 软件 | SBVS066Q | 拓扑 | LDO |
| 图案编号 | Y | 输出及类型 | Adjustable Output |
| 功能框图 | alt_sbvs066q.gif | 使用的IC/零件 | View |
| 其他规格 | :800mV to 3.6V | 印刷电路板数量 | 7 |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
文档与媒体
相关型号
SN74LVC1G08DCKR
texas instruments
AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R SINGLE POSITIVE AND GATE SC-70 Logic Gates Single 2-Input Pos IC, AND GATE, SINGLE 2-INPUT, SMD IC, AND GATE, SC-70-5, FULL REEL Single 2-Input Positive-AND Gate Logic IC SC-70-5, SN74LVC1G08, SN74LVC1G08DCKR, Texas Instruments Texas Instruments 逻辑门, CMOS输出, 32mA, 1.65 至 5.5 V, 5针 SC-70封装
TXB0108PWR
texas instruments
Voltage Level Translator 20-Pin TSSOP T/R IC 8-BIT TRNSTR 15KV ESD 20TSSOP IC VOLT-LVL TRANSL 8BIT 20-TSSOP TXB0108PWR, Voltage Level Translator, 3-State 1.2 to 3.6, 1.65 to 5.5V 20-Pin TSSOP Translation - Voltage Levels 8-Bit Bi-directional V-Level Translator IC, TRANSLATOR, 8BIT, BIDIRECTIONAL IC, VOLTAGE LEVEL TRANSLATOR, TSSOP-20, FULL REEL 8-Bit Bidirectional Voltage-Level Translator with Auto Direction Sensing and +/-15-kV ESD Protect 电压电平移位器, 三态输出, 1.2 → 3.6 V，1.65 → 5.5 V, 20针 TSSOP封装
ADS8364Y/250
texas instruments
ADC Triple SAR 250ksps 16-bit Parallel 64-Pin TQFP T/R Triple ADC SAR 250ksps 16-bit Parallel 64-Pin TQFP T/R IC ADC LP 16BIT 250KSPS 64TQFP Analog to Digital Converters - ADC 16-Bit 250kSPS 6 ADC Parallel Out 6-Channel Simultaneous Sampling SAR ADC, 16-bits with 250kSPS for Motor and Power Control Texas Instruments , 3通道 16 位 ADC, 差分输入, 并行接口, 64针 TQFP封装
LM339ADR
texas instruments
Comparator Quad ±15V/30V 14-Pin SOIC T/R IC QUAD DIFF COMPARATOR 14 -SOIC Comparator ICs Quad Diff A Grade Comparator Quad ?15V/30V 14-Pin SOIC T/R IC, DIFFERENTIAL COMP, QUAD 0.3 uS SOIC14 Quad Differential Comparator 4通道 比较器, 开路集电极输出, 1.3μs, 多种电源电压适用, 14引脚 SOIC封装 Analog Comparators Quad Diff A Grade
TPS74401KTWT
texas instruments
LDO Regulator Pos 0.796V to 3.6V 3A 8-Pin(7+Tab) PFM T/R LDO Regulator Pos 0.796V to 3.6V 3A 8-Pin(7+Tab) TO-263 T/R IC REG LDO ADJ 3A 7DDPAK TPS74401KTWT, Low Dropout Voltage Regulator, Adjustable 3A, 0.796 to 3.6V ±1%, 8-Pin PFM, TO-263 LDO Voltage Regulators Sgl Output 3.0A Adj. Prgrmbl SoftStart LDO, REG, 5.5VIN, 3A, ADJ, 7D2PAK Single Output LDO, 3.0A, Adj.(0.8 to 3.3V), Fast Transient Response, Programmable Soft Start Texas Instruments , LDO 调节器, 可调整的输出, 3A, 0.796 → 3.6 V输出 ±1%, 8针 D2PAK封装
TUSB3210PM
texas instruments
USB CONTROLLER FOR STORAGE Universal Serial Bus Controller 64-Pin LQFP Full Speed General Purpose Device Controller USB 2.0 3.3V Tray 64-Pin LQFP IC USB CNTRLR STORAGE 64-LQFP USB Interface IC USB 2.0 8052-Based Gen Purpose MCU UNIVERSAL SERIAL BUS GENERAL-PURPOSE DEVICE CONTROLLER IC, USB CONTROLLER, 12MBPS, LQFP-64 IC, CONTROLLER, USB, 64LQFP Universal Serial Bus General-Purpose Device Controller
TPS56121DQPT
texas instruments
Conv DC-DC Single Step Down 4.5V to 14V 22-Pin QFN EP T/R Conv DC-DC Single Step Down 4.5V to 14V 22-Pin SON EP T/R IC REG BUCK SYNC ADJ 15A 22SON Converter, Sync, Buck, High Current,15A Voltage Regulators - Switching Regulators 4.5-14Vinp,15A High Crnt Synch Step-Down BUCK, SYNC, 15A, 22SON 4.5V to 14V Input, 15A Synchronous Step-Down SWIFT™ Converter Texas Instruments 降压 开关稳压器, 15A, 可调输出, 0.6 → 12 V, 1000 kHz, 22针 PQFN封装 Switching Voltage Regulators 4.5-14Vinp,15A High Crnt Synch Step-Down
TPS74401EVM-118
texas instruments
Evaluation Module Is Designed To Help The User Easily Evaluate And Test The Operation And Functionality Of The TPS74401 LDO Linear Regulator Power Management IC Development Tools LDO REGULATOR EVAL MODULE FOR TPS74401-118 TPS74401EVM-118 EVALUATION MODULE EVAL BOARD, TPS74301 ADJ 3A LDO REGULATOR
33117
Capital Advanced Technologies

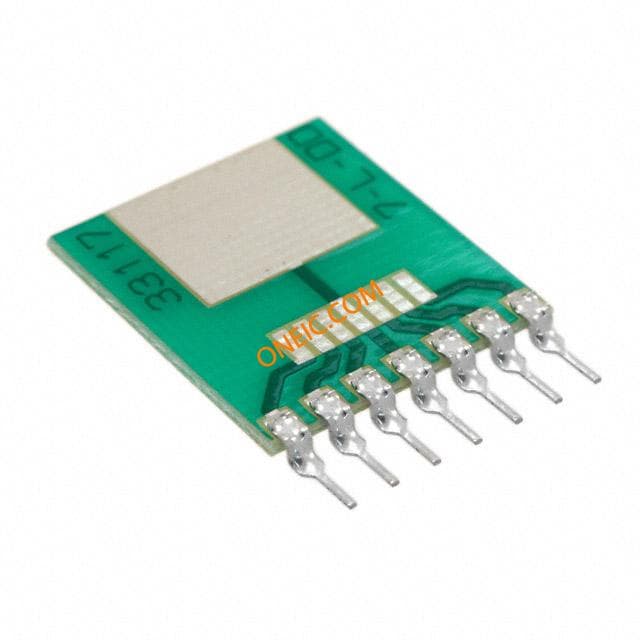

PROTO-BOARD ADAPTER FOR 7-PIN D2
