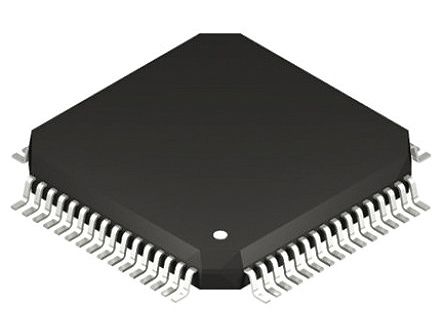

ADS8364Y/250
| 制造商 | Texas Instruments Incorporated |
| 描述 | ADC Triple SAR 250ksps 16-bit Parallel 64-Pin TQFP T/R Triple ADC SAR 250ksps 16-bit Parallel 64-Pin TQFP T/R IC ADC LP 16BIT 250KSPS 64TQFP Analog to Digital Converters - ADC 16-Bit 250kSPS 6 ADC Parallel Out 6-Channel Simultaneous Sampling SAR ADC, 16-bits with 250kSPS for Motor and Power Control Texas Instruments , 3通道 16 位 ADC, 差分输入, 并行接口, 64针 TQFP封装 |
| 分类 |
商业参数
| 产品 | Analog to Digital Converters | 其他名称 | 296-13449-1 |
| 产品类别 | Analog to Digital Converters - ADC | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 250 | 标准封装名称 | QFP |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | Parallel | 线性度 | �1.5LSB(Typ) |
| 信噪比 | 83.2(Typ) dB | 输入类型 | Voltage |
| 分辨率 | 16 Bit | 输入信号 | Differential |
| INL/DNL（LSB） | ±8LSB | 输入功率 | Analog and Digital |
| 额定功率 | 471.5 W | 转换器类型 | General Purpose |
| 数据接口 | Parallel | 输入极性 | Bipolar |
| 位数 | 16 | 基准类型 | Ext Int |
| 额定电压 | ±2.5V | 数据速率（最大） | 250 KSPs |
| 采样保持与ADC比率（如1:2） | Yes | 额定电压值 | �2.5 |
| 输入数量 | 6 | 供电电压 | 5 V |
| 数字I/O线数 | 并行 | 失真额定值（如THD） | ±8LSB |
| 电压基准 | Internal|External | 通道数量 | 6 Channel |
| 元件数量 | 3 | 采样频率 | 250 ksps |
| 最大额定电流 | Catalog | ADC/DAC 数量 | 3 |
| 供电电源 | Analog and Digital | 平均正向功率 | 471.5 mW |
| 最大功耗 | 471.5 mW | 模拟供电电压 | 4.75 V to 5.25 V |
| 差分非线性 | ±1.5LSB(Typ) | 数字供电电压 | 2.7 V to 5.5 V |
| 输出数量与类型 | 6 | 采样率（每秒） | 250k |
| 差分 - 输入:输出 | Yes | 电源电压范围（典型） | Not Required V |
| 信噪比，ADC/DAC（dB）典型值 | 83.2 dB | ||
机械参数
| 宽度 | 10.2mm | 高度 | 1.05mm |
| 长度 | 10.2mm | 重量 | 0.009690 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 连接器类型 | Parallel |
| 安装样式 | SMD/SMT | 引脚数 | 64 |
| 封装形式 | 64TQFP | 冷却的封装 | TQFP |
| 总长度 | 10.2(Max) | 包装数量 | TQFP |
| 尺寸/外形 | 10.2 x 10.2 x 1.05mm | 位数 | 64 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 64-TQFP (10x10) |
| 外壳尺寸-插入件（转换至） | SAR | ||
产品信息
| 系列 | ADS8364 | 产品特性 | Internal Reference, Simultaneous Sampling |
| 软件 | SBAS219C | 架构 | SAR |
| 制造商全称 | Texas Instruments | 开发套件 | ADS8364M-EVM |
| 功能框图 | fbd_sbas219c.gif | 使用的IC/零件 | View |
| 输出配置 | Surface Mount | 印刷电路板数量 | 64 |
| A/D转换器数量 | 6 | 输入数量及类型 | 12 Single-Ended, Bipolar; 6 Differential, Bipolar |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
OPA2227U
texas instruments
OP Amp Dual GP ±18V 8-Pin SOIC Tube IC OPAMP GP 8MHZ 8SOIC OPA2227U, Dual Operational Amplifier 8MHz, 8-Pin SOIC Operational Amplifiers - Op Amps High Prec Low Noise Oper Amplifier OP Amp Dual GP �18V 8-Pin SOIC Tube High Precision, Low Noise Operational Amplifiers Operational Amplifier Dual 8 MHz SOIC-8, OPA2227, OPA2227U, Texas Instruments Texas Instruments 双 运算放大器, 8MHz, 8针 SOIC
TMS320F28335PGFA
texas instruments
MCU 32-Bit C2000 C28x RISC 512KB Flash 1.9V/3.3V 176-Pin LQFP MCU 32-bit C2000 C28x RISC 512KB Flash 1.9V/3.3V 176-Pin LQFP Tray IC MCU 32BIT 512KB FLASH 176LQFP TMS320F28335PGFA, 32 bit Microcontroller C28x 150MHz 512kb Flash, 68kb RAM, I2C SPI 176-Pin LQFP IC, 32BIT MCU, C2000 DELFINO, 150MHZ 1.995V LQFP176 MCU,32BIT,512K FLASH,DELFINO,176LQFP Digital Signal Processor; Flash:256kB; 150MHz; Mounting: SMD Delfino Microcontroller Microcontroller 16/32 Bit LQFP-176, TMS320 F28335, TMS320F28335PGFA, Texas Instruments Texas Instruments Delfino 系列 32 bit C28x MCU, 150MHz, 512 kB ROM 闪存, 68 kB RAM, 176针 LQFP封装 Digital Signal Processors & Controllers - DSP, DSC Digital Signal Controller
OPA2132PA
texas instruments
OP Amp Dual GP ±18V 8-Pin PDIP Tube IC OPAMP GP 8MHZ 8DIP OPA2132PA, Dual Operational Amplifier 8MHz, 8-Pin PDIP High Speed Operational Amplifiers High Speed FET-Input Oper Amplifier OP Amp Dual GP �18V 8-Pin PDIP Tube OP AMP, DUAL FET I/P, 2132, PDIP8 Operational amplifier; 8MHz; 2.5÷18VDC; Channels:2; DIP8 High Speed FET-Input Operational Amplifiers Operational Amplifier Dual 8 MHz DIL-8, OPA2132, OPA2132PA, Texas Instruments Texas Instruments 双 运算放大器, 8MHz, 8针 PDIP
INA159AIDGKT
texas instruments
SP Amp DIFF AMP Single R-R I/P 5.5V 8-Pin VSSOP T/R IC OPAMP DIFF 1.5MHZ 8VSSOP Differential Amplifiers Hi-Sp Prec Gain of 0.2 Lvl Translation IC, OP-AMP DIFF 1.5MHZ SGL 8MSOP IC, DIFF AMP, 1.5MHZ, 15V/ uS, MSOP-8 High-Speed, Precision Gain of 0.2 Level Translation Difference Amplifier Differential Amplifier VSSOP-8, INA159, INA159AIDGKT, Texas Instruments 差分放大器, 3 V 5 V, 轨至轨输入, 8引脚 MSOP封装
TMS320F2808PZA
texas instruments
DSP Fixed-Point 32-Bit 100MHz 100MIPS 100-Pin LQFP IC MCU 32BIT 128KB FLASH 100LQFP TMS320F2808PZA, 32bit Digital Signal Processor 100MHz 128kb Flash, 36kb RAM, 100-Pin LQFP IC, 16BIT DSP, SMD, LQFP100, 320 32-Bit Digital Signal Controller with Flash Microprocessor LQFP-100, TMS320 F2808, TMS320F2808PZA, Texas Instruments Texas Instruments 32bit 数字信号处理器 DSP, 100MHz, 128 kB ROM 闪存, 36 kB RAM, 100针 LQFP封装 Digital Signal Processors & Controllers - DSP, DSC 32-Bit Digital Sig Controller w/Flash
DAC7724U
texas instruments
DAC 4-CH R-2R 12-bit 28-Pin SOIC Tube Digital to Analog Converters - DAC 12-Bit Quad Voltage Output IC 12-BIT QUAD D/A 28-SO 12-Bit Quad Voltage Output Digital-to-Analog Converter Texas Instruments 四 12 位 DAC, 100ksps, 并行接口, 28针 SOIC封装

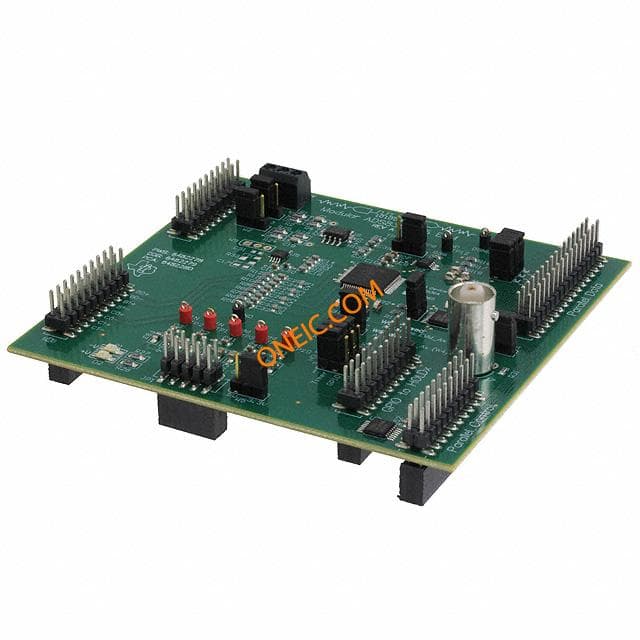

ADS8364M-EVM
