TMS320F28335PGFA
| 制造商 | Texas Instruments Incorporated |
| 描述 | MCU 32-Bit C2000 C28x RISC 512KB Flash 1.9V/3.3V 176-Pin LQFP MCU 32-bit C2000 C28x RISC 512KB Flash 1.9V/3.3V 176-Pin LQFP Tray IC MCU 32BIT 512KB FLASH 176LQFP TMS320F28335PGFA, 32 bit Microcontroller C28x 150MHz 512kb Flash, 68kb RAM, I2C SPI 176-Pin LQFP IC, 32BIT MCU, C2000 DELFINO, 150MHZ 1.995V LQFP176 MCU,32BIT,512K FLASH,DELFINO,176LQFP Digital Signal Processor; Flash:256kB; 150MHz; Mounting: SMD Delfino Microcontroller Microcontroller 16/32 Bit LQFP-176, TMS320 F28335, TMS320F28335PGFA, Texas Instruments Texas Instruments Delfino 系列 32 bit C28x MCU, 150MHz, 512 kB ROM 闪存, 68 kB RAM, 176针 LQFP封装 Digital Signal Processors & Controllers - DSP, DSC Digital Signal Controller |
| 分类 |
商业参数
| 标准包装数量 | Trays | 标准封装名称 | QFP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| 认证机构 | No | ||
电气参数
| GPIO | 88 | 转速 | 150 MHz |
| 定时器 | 3 x 32 bit | 存储器 | 1 6-Ch DMA |
| RAM 大小 | 68 KB | 内核大小 | 32-Bit |
| 核心类型 | C28x | 频率 | 150 MHz |
| 接口 | CAN/I2C/SCI/SPI/UART | 时钟速率 | 150 |
| 存储器容量 | 6/2 | I/O 数量 | 88 |
| 位数 | 12 | 核心电压 | :1.9V |
| 额定电压 | 3.135 → 3.465 V | 看门狗定时器 | 1 |
| 数据转换器 | A/D 16x12b | 最大频率 | 150MHz |
| DAC数量 | 1 | 振荡器类型 | Internal |
| 采样保持与ADC比率（如1:2） | Dual | 串行协议 | 3 |
| 供电电压 | 1.9|3.3 V | RS-232（422、485） | 2 |
| 分辨率（位） | 12bit | 通道数量 | 2 |
| 程序存储器大小 | 512 KB | 程序存储器类型 | Flash |
| 工作频率 | :150MHz | ADC/DAC 数量 | 16 |
| 最小供电电压 | 1.805/3.135 V | 频率（中心/带宽） | 32bit |
| 供电电压 (Vcc/Vdd) | 1.805 V ~ 1.995 V | 峰值脉冲电流（8/20µs） | 150 |
机械参数
| 宽度 | 24.2mm | 高度 | 1.45mm |
| 长度 | 24.2mm | 重量 | 0.002 |
| 包装方式 | Tray | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 引脚数 | :176 |
| 封装形式 | 176LQFP | 冷却的封装 | LQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 24 |
| 包装数量 | LQFP | 尺寸/外形 | 24.2 x 24.2 x 1.45mm |
| 位数 | 176 | 外壳尺寸-插件 | 1.4 |
| 核心数/总线宽度 | 32 Bit | 脉冲宽度失真（最大） | 1(18 Channel) |
产品信息
| SPI | 1 | SPG | 29 |
| USB | 0 | 类型 | Digital Signal Processor |
| 系列 | :C2000 | 已删除 | Compliant |
| 功能 | C28x | 协议 | 1 |
| 软件 | SPRS439M | 闪存大小 | :512KB |
| 片内RAM（通道数×位宽） | 16-chx12-bit | 外设 | DMA, POR, PWM, WDT |
| 架构 | RISC | 连接性 | CAN, EBI/EMI, I²C, McBSP, SCI, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | C28x |
| 单元数量 | 1 | 定时器数量 | 3 |
| 控制器系列 | :C2000 | 模块数 | 1 |
| 功能框图 | fbd_sprs439m.gif | 射频系列/标准 | C2000 |
| 使用的IC/零件 | View | DigiKey可编程 | Yes |
| 其他规格 | :150 | 印刷电路板数量 | 176 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
相关型号
NE5532P
texas instruments
OP Amp Dual GP ±15V 8-Pin PDIP Tube IC OPAMP GP 10MHZ 8DIP NE5532P, Operational Amplifier 10MHz, 8-Pin PDIP OP Amp Dual GP �15V 8-Pin PDIP Tube OP AMP, DUAL LOW NOISE, 5532, DIP8 Operational amplifier; 10MHz; 5÷15VDC; Channels:2; DIP8 Dual Low-Noise High-Speed Audio Operational Amplifier Operational Amplifier Dual 10 MHz DIL-8, NE5532, NE5532P, Texas Instruments Texas Instruments 双 运算放大器, 10MHz, 8针 PDIP Operational Amplifiers - Op Amps Dual Low Noise
PTN78020WAH
texas instruments

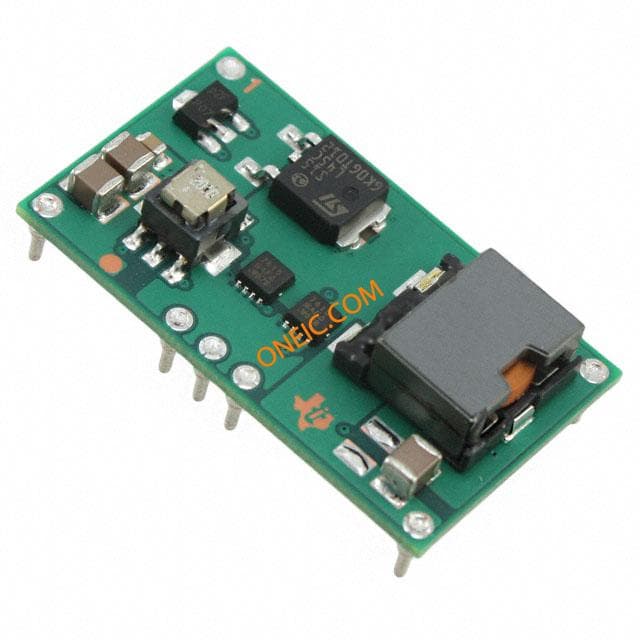

Module DC-DC 1-OUT 2.5V to 12.6V 6A 90W 7-Pin DIP Module REG SW 2.5-12.6V 6A HORZ T/H PTN78020WAH, Switching Regulator, Buck Controller,, 7-Pin DIP Module DC/DC Converters 6-A Wide-Input Vltg Adj Swtch Regulator IC, SWITCHING REG 6A ADJ, 8020 DC-DC CONV, LINEAR REG, 1 O/P, 90W, 6A 6-A Wide-Input Voltage Adjustable Switching Regulator Texas Instruments 降压 开关稳压器, 6A, 7针 DIP 模块封装
MSP430F1612IPM
texas instruments
MCU 16-Bit MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP MCU 16-bit MSP430 MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP Tray IC MCU 16BIT 55KB FLASH 64LQFP MSP430F1612IPM, 16 bit Microcontroller MSP430 8MHz 55, 256kB, B Flash, 5kb RAM, I2C SPI 64-Pin LQFP MSP430 FLASH MCU, SMD, LQFP64, 430 Microcontroller; Flash:55kB; RAM:5kB; 8MHz; QFP64 16-bit Ultra-Low-Power MCU, 55kB Flash, 5120B RAM, 12-Bit ADC, Dual DAC, 2 USART, I2C, HW Mult, DMA Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B，55 kB ROM 闪存, 5 kB RAM, 64针 LQFP封装 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
INA122P
texas instruments
SP Amp INSTR Amp Single R-R O/P ±18V/36V 8-Pin PDIP Tube IC OPAMP INSTR 120KHZ 8DIP Instrumentation Amplifiers Single Supply MicroPower SP Amp INSTR Amp Single R-R O/P �18V/36V 8-Pin PDIP Tube IC, AMP INST, SINGLE SUPPLY, PDIP8 Single Supply, MicroPower Instrumentation Amplifier Texas Instruments 仪表放大器, 0.25mV偏置, 83dB CMRR, 轨至轨输出, 5 V电源, 8针 PDIP封装
REF2925AIDBZT
texas instruments
V-Ref Precision 2.5V 25mA 3-Pin SOT-23 T/R IC VREF SERIES PREC 2.5V SOT23-3 Voltage References 2.5V 100ppm/DegC 50uA SOT23-3 Series IC, SERIES V-REF, 2.5V, 2%, 3-SOT-23 2.5V 100ppm/Degrees C, 50uA in SOT23-3 Series (Bandgap) Voltage Reference Texas Instruments Fixed 2.5V 电压参考, ±2.0 %精确度, 25mA, 7 V输入, 3针 SOT-23封装
TMDSDOCK28335
texas instruments
TMS320F28335 Experimenter Kit Development Boards & Kits - TMS320 TMS320F28335 Experimenter Kit KIT EXPERIMENTER TMS320F28335 TMDSDOCK28335, Development Kit, 32 bit, C2000 TMS320F28335, EXPERIMENTER KIT Texas Instruments 32 位 MCU 处理器和微控制器开发套件
DRV8332DKD
texas instruments

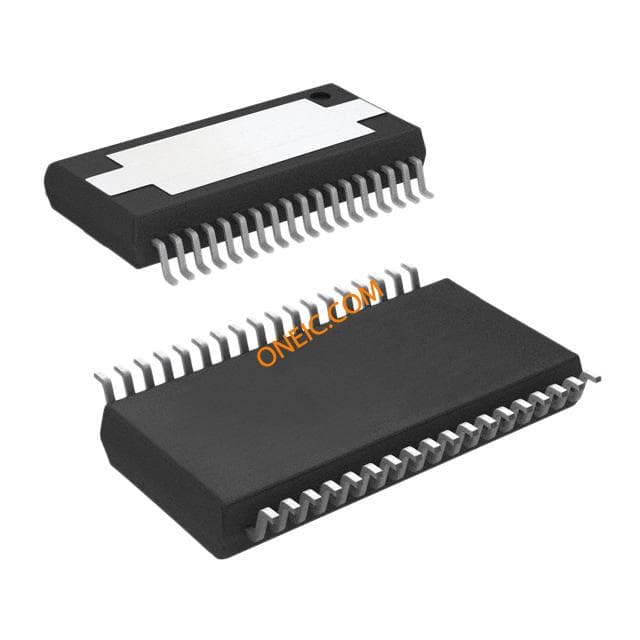

3-Phase Motor Driver 12V 36-Pin HSSOP EP Tube IC BRIDGE DRIVER PAR 36HSSOP DRV8332DKD, Motor Driver, Motor / Motion / Ignition Controllers & Drivers Three Phase PWM Motor Driver IC, MOTOR DRIVER, PWM, 3PH, 36HSSOP 13A Three Phase Brushless DC Motor Driver with Inrush Protection (PWM Ctrl) Motor Driver IC HSSOP-36, DRV8332, DRV8332DKD, Texas Instruments Texas Instruments 电机驱动器 IC , 用于BLDC 电机, 8A, 500kHz, 10.8 → 13.2 V
.jpg&w=3840&q=75)
ISO1176DW
texas instruments
Single Transmitter/Receiver RS-485 16-Pin SOIC Tube IC RS485 PROFIBUS TXRX 16-SOIC Isolator Interface IC Iso PROFIBUS RS-485 Xcvr IC, RS-485 TRANSCEIVER, 5.5V, SOIC-16 IC, RS485 PROFIBUS TXRX 16-SOIC Isolated PROFIBUS RS-485 Transceiver Interface IC RS485 SO-16W, ISO1176, ISO1176DW, Texas Instruments Texas Instruments 40MBps 线路收发器, RS-485接口, 差分接收器信号, 3.3 V, 16针 SOIC封装 Digital Isolators Iso PROFIBUS RS-485 Xcvr
ISO1050DUBR
texas instruments

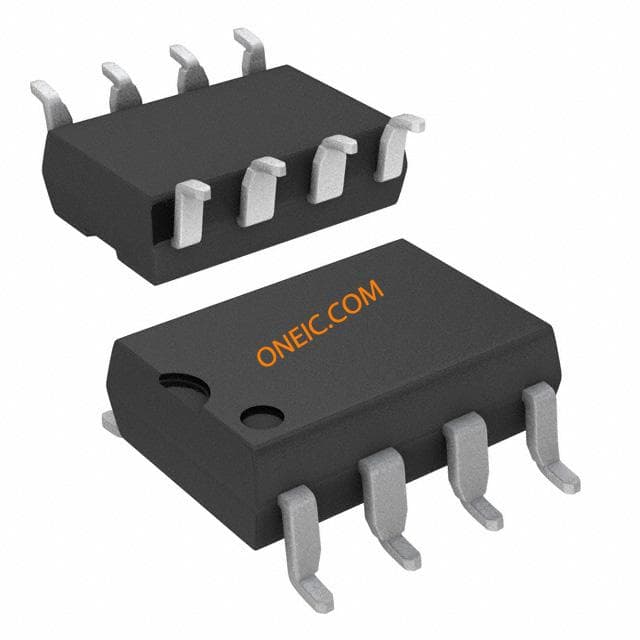

ISOLATED 5V CAN TRANSCEIVER CAN 1Mbps 3.3V/5V 8-Pin SOP IC TXRX CAN 5V 8SOP Isolator Interface IC Iso 5V CAN Xcvr IC, CAN TRANSCEIVER, ISOLATED, 5V IC, CAN TXRX, 1MBPS, 1/1, 5V, SOP-8 IC, CAN, 1MBPS, 1TX/RX, SOP-8, FULL REEL Isolated 5-V CAN Transceivers Interface IC CAN SOP-8, ISO1050, ISO1050DUBR, Texas Instruments Digital Isolators Iso 5V CAN Xcvr
