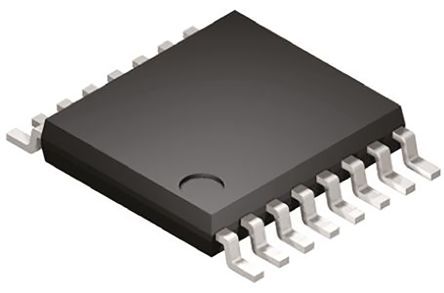

TLV5604IPW

点击放大查看

TLV5604IPW

制造商
Texas Instruments Incorporated
描述DAC 4-CH Resistor-String 10-bit 16-Pin TSSOP Tube IC 10-BIT QUAD SER DAC 16-TSSOP TLV5604IPW, 10-Bit 10 Bit DAC Quad 102ksps, SPI, Microwire, 16-Pin TSSOP Digital to Analog Converters - DAC 10bit Quad Serial D 10-Bit, 3 us Quad DAC, Serial Input, Simultaneous Update, Programmable Settling Time, PowerDown Texas Instruments 四 10 位 DAC, 102ksps, SPI, Microwire接口, 16针 TSSOP封装
分类
集成电路数据转换器通用数据转换器
对参数有疑问？问 AI 助手

商业参数

产品Digital to Analog Converters产品类别Digital to Analog Converters - DAC
标准包装数量Rail / Tube工厂包装数量90
标准封装名称TSSOP

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
零件状态ACTIVE抗辐射加固No

电气参数

数据速率102ksps接口Serial (3-Wire, 4-Wire, SPI, QSPI, Microwire)
信噪比68(Typ) dB满量程±0.6 %FSR
分辨率10 Bit输出类型Voltage
输出范围0INL/DNL（LSB）±1 LSB
输入功率Analog and Digital建立时间18 us
转换器类型General Purpose数据接口Serial
位数10基准类型Ext
数据速率（最大）102 KspsDAC数量4
供电电压5.5 V数字I/O线数串行 (SPI/QSPI/Microwire)
失真额定值（如THD）+/- 1 LSB输出数量4
供电类型Analog and Digital电压基准External
通道数量4最大额定电流Catalog
供电电源Analog and Digital增益带宽积0.6
平均正向功率3输出数量与类型4 Voltage, Unipolar
采样率（每秒）102k电源电压范围（典型）Not Required V
精度 - 电压表；电流表±0.6%FSR

机械参数

宽度4.4mm高度1.15mm
长度5mm重量0.002222 oz
包装方式Tube引脚样式Gull-wing
安装类型Surface Mount安装样式SMD/SMT
引脚数16封装形式16TSSOP
冷却的封装TSSOP总长度5.1(Max)
包装数量TSSOP尺寸/外形5 x 4.4 x 1.15mm
位数16外壳尺寸-插件1.05(Max)
供应商器件封装16-TSSOP外壳尺寸-插入件（转换至）电阻串

产品信息

系列TLV5604功能Y
软件SLAS176B架构Resistor-String
制造商全称Texas Instruments使用的IC/零件View
其他规格18µs印刷电路板数量16
A/D转换器数量4

环境参数

测试温度-40 to 85工作温度-40 to 85 °C
结工作温度85C

文档与媒体

PDF 文档
slas176b.pdf
PDF 文档
TLV5604
PDF 文档
tlv5604.pdf
PDF 文档
80105.pdf
在线文档
slas176b
在线文档
tlv5604
