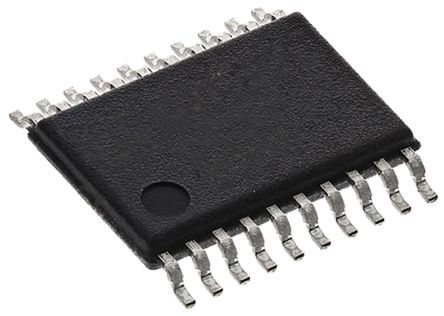

TLV5631IPW
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 8-CH Resistor-String 10-bit 20-Pin TSSOP Tube Digital to Analog Converters - DAC 10bit 8Chl DAC IC 10 BIT DAC 8 CH S/O 20-TSSOP 10BIT DAC, POWER DOWN, SMD, TSSOP20 2.7V to 5.5V 10-Bit 8-Channel Serial DAC W/Int Ref Texas Instruments , 8通道 10 位 DAC, 283ksps, SPI接口, 20针 TSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-3068-5 | 产品类别 | Digital to Analog Converters - DAC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 70 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | Serial (SPI, QSPI, Microwire) | 满量程 | ±0.6 %FSR |
| 输入类型 | :Serial | 分辨率 | 10 Bit |
| 输出类型 | Voltage | 输出范围 | 0 |
| INL/DNL（LSB） | ±2 LSB | 输入功率 | Analog and Digital |
| 建立时间 | 7 us | 转换器类型 | General Purpose |
| 数据接口 | Serial | 位数 | 10 |
| 基准类型 | Ext Int | 数据速率（最大） | 283 Ksps |
| DAC数量 | 8 | 输出电流 | :16mA |
| 供电电压 | 5.5 V | 失真额定值（如THD） | +/- 2 LSB |
| 输出数量 | 8 | 供电类型 | Analog and Digital |
| 分辨率（位） | :10bit | 电压基准 | Internal or External |
| 通道数量 | 8 | 采样频率 | :283kSPS |
| 最大额定电流 | Catalog | 供电电源 | Analog and Digital |
| 增益带宽积 | 0.6 | 平均正向功率 | 18 |
| 数字供电电压 | :2.7V to 3.3V, 4.5V to 5.5V | 内部供电电压 | :2.7V to 3.3V, 4.5V to 5.5V |
| 输出数量与类型 | 8 Voltage, Unipolar | 采样率（每秒） | 283k |
| 电源电压范围（典型） | Not Required V | ||
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.002758 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :20 |
| 封装形式 | 20TSSOP | 冷却的封装 | TSSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 6.6(Max) |
| 包装数量 | TSSOP | 位数 | 20 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 20-TSSOP |
产品信息
| 系列 | TLV5631 | 已删除 | Compliant |
| 软件 | SLAS269F | 架构 | Resistor-String |
| 功能框图 | fbd_slas269f.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 20 | A/D转换器数量 | 1 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
