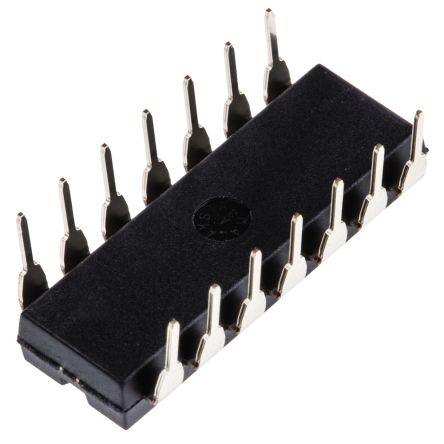

INA101HP

制造商	Texas Instruments Incorporated
描述	SP Amp INSTR Amp Single ±20V 14-Pin PDIP Tube IC OPAMP INSTR 300KHZ 14DIP Instrumentation amplifier,INA101HP DIP14 INA101HP, Instrumention Amplifier, 14-Pin PDIP Instrumentation Amplifiers Very High Accuracy Instrumentation Amp SP Amp INSTR Amp Single �20V 14-Pin PDIP Tube IC, AMP, INSTRUMENTATION, 300KHZ Very High Accuracy Instrumentation Amplifier Texas Instruments 仪表放大器, 250μV偏置, 300kHz 14针 PDIP封装
分类	集成电路放大器与比较器比较器

对参数有疑问？问 AI 助手

商业参数

产品类别	Instrumentation Amplifiers	标准包装数量	Trays, Rail / Tube
工厂包装数量	25	标准封装名称	PDIP

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85411000
零件状态	ACTIVE	抗辐射加固	No

电气参数

增益	60 dB	输出端	:Single Ended
压摆率	0.4 V/µs	输出类型	No
输入功率	Dual	额定功率	0.6 W
共模抑制比、电源抑制比（典型）	106 dB	输出电流	6.7mA
供电电压	±5 V	供电类型	Dual
通道数量	1	元件数量	3
输入电阻	10GΩ	非易失性存储器	0.002
输入偏置电流	15nA	最大额定电流	Catalog
ADC/DAC 数量	:1	最小输入电压	60 dB
增益带宽积	300 KHz	轨到轨工作	No
最大功耗	600 mW	静态电流 (Iq)	6.7
输入偏置电流（最大）	0.02@±15V	输出电流/通道	10mA
供电电压 (Vcc/Vdd)	40	电源电压范围（典型）	�15 V

机械参数

宽度	6.35mm	高度	4.57mm
长度	19.3mm	重量	0.0001
带宽	:300kHz	包装方式	Tube
引脚样式	Through Hole	端接方式	:Through Hole
安装类型	Through Hole	-3dB带宽	300kHz
安装样式	Through Hole	引脚数	:14
封装形式	14PDIP	冷却的封装	PDIP
材料表面处理	:-	总长度	19.69(Max)
包装数量	PDIP	尺寸/外形	19.3 x 6.35 x 4.57mm
位数	14	外壳尺寸-插件	5.08(Max) - 0.51(Min)
供应商器件封装	14-PDIP

产品信息

类型	Instrumentation Amplifier	系列	INA101
软件	SBOS133	放大器类型	Instrumentation
电路数	1	使用的IC/零件	View
印刷电路板数量	14	可编程特性	:1000

环境参数

工作温度

0 to 70 °C

文档与媒体

PDF 文档

710388.pdf
