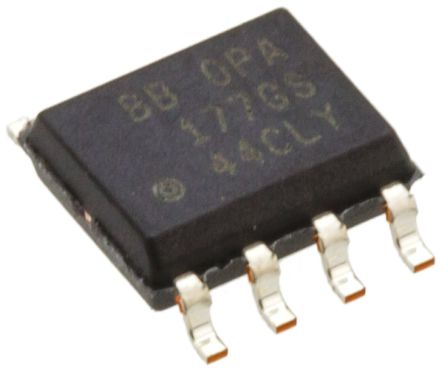

OPA177GS
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP ±22V 8-Pin SOIC Tube IC OPAMP GP 600KHZ 8SOIC Single precision op-amp,OPA177GS SO8 OPA177GS, Operational Amplifier, 8-Pin SOIC Operational Amplifiers - Op Amps Precision Oper Amplifier OP Amp Single GP �22V 8-Pin SOIC Tube OP AMP, PRECISION, SMD, SOIC8, 177 Operational amplifier; 600kHz; 3÷18VDC; Channels:1; SO8 Precision Operational Amplifier Operational Amplifier Single 600 kHz SO-8, OPA177GS, Texas Instruments Texas Instruments 运算放大器, 600kHz, 8针 SOIC Precision Amplifiers Precision Oper Amplifier |
| 分类 |
商业参数
| 产品类别 | Operational Amplifiers - Op Amps | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | :177 | 抗辐射加固 | No |
电气参数
| 增益 | 135.56 dB | 电源抑制比 | 110 dB |
| 压摆率 | 0.3@±15V V/us | 1kHz噪声电压 | 7.5 |
| 输出类型 | No | 失调漂移 | 0.1 |
| 输入功率 | Dual | 上升时间（典型） | 300mV/μs |
| 晶体管类型 | :Precision | 共模抑制比、电源抑制比（典型） | 115 dB |
| 输出电流 | 1.3mA | 供电电流 | 2@±15V mA |
| 供电电压 | 6 V ~ 36 V, ±3 V ~ 18 V | 供电类型 | Dual |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入偏置电流 | 500pA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :1 | 最小输入电压 | 20µV |
| 增益带宽积 | 600kHz | 轨到轨工作 | No |
| 静态电流 (Iq) | 2 | 输入偏置电流（最大） | 0.0028@±15V uA |
| 输入失调电流（最大） | 0.0028@±15V | 供电电压 (Vcc/Vdd) | 36 |
| 25°C失调电压 | 0.025 | 电源电压范围（典型） | �5/�9/�12/�15 V |
| 频段（低/高） | 600kHz | 输入失调电压（最大） | 0.06@±15V mV |
| 电压输出差（典型值）@ 距离 | 135.56 dB | ||
机械参数
| 宽度 | 4(Max) | 重量 | 0.002677 oz |
| 带宽 | :600kHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 5(Max) |
| 包装数量 | SOIC | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| SPG | 25 | 类型 | General Purpose Amplifier |
| 系列 | OPA177 | 关断 | No |
| 软件 | SBOS008 | 基本单元 | :177 |
| 技术 | Bipolar | 制造商全称 | Low Offset Voltage Amplifier |
| 放大器类型 | General Purpose | 单元数量 | 1 |
| 电路数 | 1 | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | ||
环境参数
| 工作温度 | -40 to 85 °C | ||
