点击放大查看

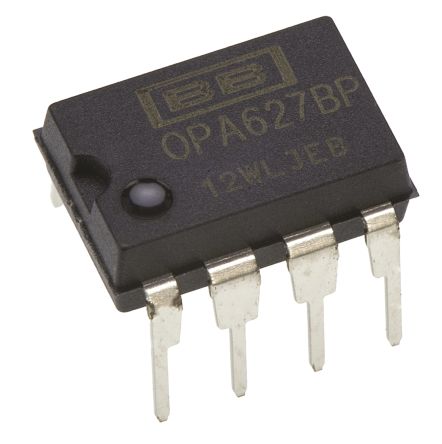

OPA627BP
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP ±18V 8-Pin PDIP Tube IC OPAMP GP 16MHZ 8DIP OP Amp Single GP �18V 8-Pin PDIP Tube OP AMP, DIFET PRECISION, PDIP8, 627 Operational amplifier; 16MHz; 4.5÷18VDC; Channels:1; DIP8 Precision High-Speed Difet(R) Operational Amplifiers Texas Instruments 运算放大器, 16MHz, 8针 PDIP High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | :627 | 抗辐射加固 | No |
电气参数
| 增益 | 120 dB | 电源抑制比 | 106 dB |
| 压摆率 | 55@±15V V/us | 1kHz噪声电压 | 5.6 |
| 输出类型 | No | 失调漂移 | 1.2 |
| 输入功率 | Dual | 额定功率 | 1 W |
| 上升时间（典型） | 55V/μs | 晶体管类型 | :High Speed |
| 共模抑制比、电源抑制比（典型） | 106 dB | 输出电流 | 7mA |
| 供电电流 | 7.5@±15V mA | 供电电压 | ±4.5 V |
| 供电类型 | Dual | 通道数量 | 1 |
| 元件数量 | 1 | 输入偏置电流 | 1pA |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :1 |
| 最小输入电压 | 40µV | 增益带宽积 | 16 MHz |
| 轨到轨工作 | No | 最大功耗 | 1000 |
| 静态电流 (Iq) | 7.5 | 输入偏置电流（最大） | 0.000005@±15V uA |
| 输出电流/通道 | 45mA | 输入失调电流（最大） | 0.000005@±15V |
| 供电电压 (Vcc/Vdd) | 36 | 25°C失调电压 | 0.25 |
| 输入噪声电流密度 | 0.0016@±15V pA/rtHz | 输入噪声电压密度 | 15@±15V nV/rtHz |
| 电源电压范围（典型） | �15 V | 频段（低/高） | 16MHz |
| 输入失调电压（最大） | 0.25@±15V mV | 共模瞬态抗扰度（最小） | Industrial |
| 电压输出差（典型值）@ 距离 | 120 dB | ||
机械参数
| 宽度 | 6.6(Max) | 重量 | 0.000075 |
| 带宽 | :16MHz | 包装方式 | Tube |
| 引脚样式 | Through Hole | 安装类型 | Through Hole |
| 引脚数 | :8 | 封装形式 | 8PDIP |
| 冷却的封装 | PDIP | 材料表面处理 | :- |
| 总长度 | 10.16(Max) | 包装数量 | PDIP |
| 位数 | 8 | 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) |
| 供应商器件封装 | 8-PDIP | ||
产品信息
| SPG | 4 | 类型 | General Purpose Amplifier |
| 关断 | No | 软件 | SBOS165 |
| 基本单元 | :627 | 技术 | BiFET |
| 制造商全称 | Low Offset Voltage Amplifier | 放大器类型 | General Purpose |
| 单元数量 | 1 | 电路数 | 1 |
| 使用的IC/零件 | View | 印刷电路板数量 | 8 |
环境参数
| 工作温度 | -25 to 85 °C | ||
