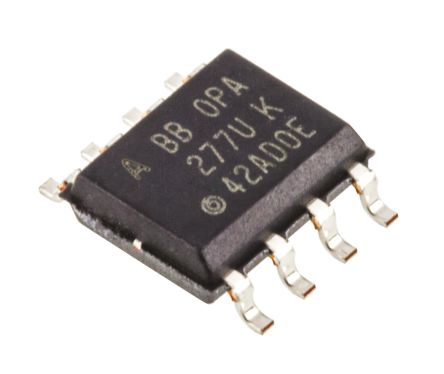

点击放大查看
OPA277UA
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP ±18V 8-Pin SOIC Tube IC OPAMP GP 1MHZ 8SOIC OPA277UA, Operational Amplifier 1MHz, 8-Pin SOIC Operational Amplifiers - Op Amps High Precision Oper Amplifier OP Amp Single GP ?18V 8-Pin SOIC Tube OP AMP, HIGH PRECISION, SOIC8, 277 IC, OP-AMP, 1MHZ, 0.8V/ us, SOIC-8 Operational amplifier; 1MHz; 2÷18VDC; Channels:1; SO8 High Precision Operational Amplifiers Operational Amplifier Single 1 MHz SO-8, OPA277, OPA277UA, Texas Instruments Texas Instruments 运算放大器, 1MHz, 8针 SOIC Precision Amplifiers High Precision Oper Amplifier |
| 分类 |
商业参数
| 产品类别 | Operational Amplifiers - Op Amps | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423300 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 增益 | 140 dB | 压摆率 | 0.8@±15V V/us |
| 1kHz噪声电压 | 8 | 输出类型 | No |
| 失调漂移 | 0.1 | 输入功率 | Dual |
| 上升时间（典型） | 800mV/μs | 晶体管类型 | :Precision |
| 共模抑制比、电源抑制比（典型） | 115 dB | 输出电流 | 790µA |
| 供电电压 | ±2 V | 通道数量 | 1 |
| 元件数量 | 1 | 输入偏置电流 | 500pA |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :1 |
| 最小输入电压 | 20µV | 增益带宽积 | 1 MHz |
| 静态电流 (Iq) | 0.825 | 输入偏置电流（最大） | 0.0028@±15V uA |
| 输出电流/通道 | 35mA | 供电电压 (Vcc/Vdd) | 36 |
| 25°C失调电压 | 0.02 | 输入噪声电流密度 | 0.2@±15V pA/rtHz |
| 输入噪声电压密度 | 12@±15V nV/rtHz | 频段（低/高） | 1MHz |
| 输入失调电压（最大） | 0.05@±15V mV | 电压输出差（典型值）@ 距离 | 140 dB |
机械参数
| 重量 | 0.002677 oz | 带宽 | :1MHz |
| 包装方式 | Tube | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 3 - 168 hours | 包装数量 | 150 |
| 位数 | 8 | 供应商器件封装 | 8-SOIC |
产品信息
| SPG | 150 | 类型 | General Purpose Amplifier |
| 系列 | OPA277 | 关断 | No Shutdown |
| 软件 | SBOS079B | 基本单元 | :277 |
| 技术 | Bipolar | 放大器类型 | General Purpose |
| 图案编号 | Y | 单元数量 | 1 |
| 功能框图 | fbd_sbos079b.gif | 电路数 | 1 |
| 使用的IC/零件 | :OPA277UA | 其他规格 | :High Precision |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
