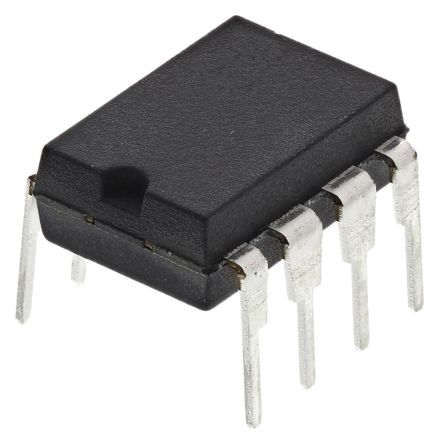

TLC5615IP
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 1-CH Resistor-String 10-bit 8-Pin PDIP Tube Digital to Analog Converters - DAC 10bit DAC IC 10-BIT SERIAL D/A 8-DIP TLC5615IP, 10-Bit 10 Bit DAC 75ksps, SPI, Microwire, 8-Pin PDIP 10-Bit, 12.5 us DAC, Serial Input, Low Power Texas Instruments , 10 位 DAC, 75ksps, Serial (SPI/QSPI/Microwire)接口, 8针 PDIP封装 |
| 分类 |
商业参数
| 产品 | Digital to Analog Converters | 其他名称 | 296-2292-5 |
| 产品类别 | Digital to Analog Converters - DAC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 50 | 标准封装名称 | PDIP |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 数据速率 | 75ksps | 接口 | Serial (3-Wire, SPI, QSPI, Microwire) |
| 满量程 | ±3 LSB | 分辨率 | 10 Bit |
| 输出类型 | Voltage | 输出范围 | 0 |
| INL/DNL（LSB） | ±1 LSB | 输入功率 | Single |
| 建立时间 | 12.5(Typ) us | 转换器类型 | General Purpose |
| 数据接口 | MICROWIRE™, QSPI™, Serial, SPI™ | 位数 | 10 |
| 基准类型 | Ext | 数据速率（最大） | 75 Ksps |
| DAC数量 | 1 | 供电电压 | 5.5 V |
| 数字I/O线数 | 串行 (SPI/QSPI/Microwire) | 失真额定值（如THD） | +/- 1 LSB |
| 输出数量 | 1 | 供电类型 | Single |
| 电压基准 | External | 通道数量 | 1 |
| 最大额定电流 | Catalog | 供电电源 | Single Supply |
| 增益带宽积 | 0.3 | 平均正向功率 | 0.75 |
| 传播延迟时间 | 12.5µs | 输出数量与类型 | 1 Voltage, Unipolar |
| 采样率（每秒） | 0.075 | 电源电压范围（典型） | Not Required V |
| 精度 - 电压表；电流表 | ±3LSB | ||
机械参数
| 宽度 | 6.35mm | 高度 | 4.57mm |
| 长度 | 9.81mm | 重量 | 0.015535 oz |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 安装类型 | Through Hole | 连接器类型 | MICROWIRE™, QSPI™, Serial, SPI™ |
| 安装样式 | Through Hole | 引脚数 | 8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 总长度 | 10.16(Max) | 包装数量 | PDIP |
| 尺寸/外形 | 9.81 x 6.35 x 4.57mm | 位数 | 8 |
| 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) | 供应商器件封装 | 8-PDIP |
| 外壳尺寸-插入件（转换至） | 电阻串 | ||
产品信息
| 系列 | TLC5615 | 功能 | Y |
| 软件 | SLAS142E | 架构 | Resistor-String |
| 制造商全称 | Texas Instruments | 功能框图 | fbd_slas142e.gif |
| 使用的IC/零件 | View | 其他规格 | 12.5µs |
| 印刷电路板数量 | 8 | A/D转换器数量 | 1 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
