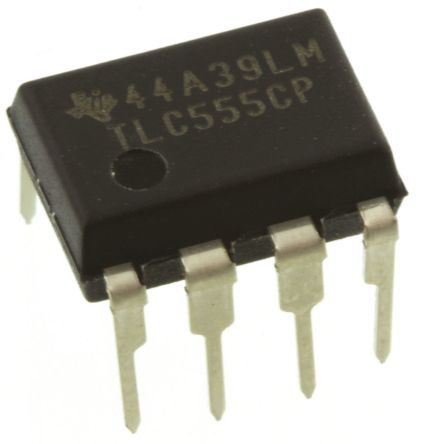

TLC555CP
| 制造商 | Texas Instruments Incorporated |
| 描述 | Standard Timer Single 8-Pin PDIP Tube IC OSC MONO TIMING 2.1MHZ 8-DIP TLC555CP, Timer 2MHz, 2 to 15V, 8-Pin PDIP-8 IC, TIMER CMOS, DIP8, 555 Peripheral circuit; astable, timer; 1,33 V; 2.1MHz; 2÷15VDC; DIP8 Low Power Timer Timer IC PDIP-8, TLC555, TLC555CP, Texas Instruments 2MHz 计时器电路, 2 → 15 V, 8针 PDIP封装 Timers & Support Products CMOS |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | :555 | 抗辐射加固 | No |
| 高可靠性 | Y | ||
电气参数
| 频率 | 2.1MHz | 定时器类型 | Standard |
| 输入信号 | :No | 额定功率 | 1 W |
| 工作模式 | :Astable | 额定电压 | 2 V |
| 最大频率 | 2MHz | 输出电流 | 360µA |
| 供电电流 | 250µA | 供电电压 | 2.5|3.3|5|9|12 V |
| 元件数量 | 1 | 最大额定电流 | Military |
| 最小供电电压 | 15 V | 最大功耗 | 1000 mW |
| 输出高/低电流 | -10 mA | 驱动电压（最大Rds On，最小Rds On） | 1,33 V |
机械参数
| 宽度 | 6.35mm | 高度 | 4.57mm |
| 长度 | 9.81mm | 重量 | 0.001 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 引脚数 | :8 | 封装形式 | 8PDIP |
| 冷却的封装 | PDIP-8 | 材料表面处理 | :- |
| 总长度 | 10.16(Max) | 包装数量 | PDIP |
| 尺寸/外形 | 9.81 x 6.35 x 4.57mm | 位数 | 8 |
| 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) | 供应商器件封装 | 8-PDIP |
产品信息
| SPG | 700 | 类型 | Standard |
| 已删除 | Compliant | 工艺（或'制程'，根据具体值如CMOS） | LinCMOS |
| 产品特性 | low power | 软件 | SLFS043F |
| 基本单元 | :555 | 图案编号 | Y |
| 单元数量 | 1 | 定时器数量 | :1 |
| 内部开关 | 1 | 使用的IC/零件 | :TLC555CP |
| 印刷电路板数量 | 8 | ||
环境参数
| 温度范围 | :Commercial | 测试温度 | 0 to 70 |
| 工作温度 | 0°C ~ 70°C | ||
