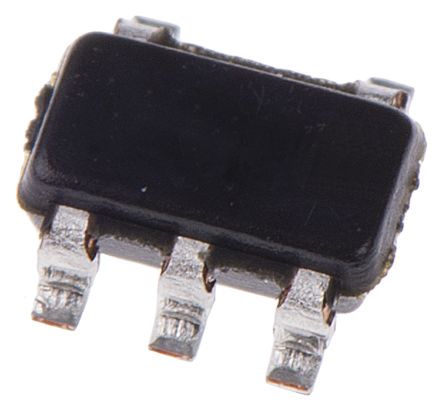

SN74LVC1G125DBVR
| 制造商 | Texas Instruments Incorporated |
| 描述 | Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 SN74LVC1G125DBVR, Bus Buffer, LVC, 4 @ 5 Vns, 32mA 1.65 to 5.5V 5-Pin SOT-23 IC, BUFFER GATE, BUS, SMD, SOT-23-5 IC, BUFFER, NON-INVERT, SOT-23-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SOT-23-5, SN74LVC1G125, SN74LVC1G125DBVR, Texas Instruments LVC 总线缓冲器, 4 ns @ 5 V, 32mA, 1.65 → 5.5 V, 5针 SOT-23封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE |
| 分类 |
商业参数
| 其他名称 | 296-11603-2 | 标准包装数量 | Tape & Reel |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电压 | 1.8 2.5 3.3 5 | 输入类型 | CMOS/TTL |
| 逻辑类型 | LVC | 输出类型 | 3-State |
| 输入信号 | Single-Ended | I/O 数量 | 5 V |
| 位数 | 1 | 额定电压 | 1.65 V |
| 输入数量 | 1 | 供电电压 | 1.65 V ~ 5.5 V |
| 输出数量 | 1 | 传播延迟 | 50pF |
| 通道数量 | 1 | 元件数量 | 1 |
| 最大额定电流 | Catalog | 输出1频率 | 150 |
| 施密特触发器输入 | No | 最小供电电压 | 5.5 V |
| 传播延迟（最大） | 10.1 | 静态电流 (Iq) | 10 uA |
| 传播延迟时间 | 10.1 ns | 静态电流（最大） | 0.01 |
| 输出高/低电流 | 32mA, 32mA | 每元件位数 | 1 |
| 输出源/灌电流 | 32/-32 | 最大传播延迟 @ V, 最大CL | 4.5@3.3V|4@5V ns |
| 传播延迟 tpLH / tpHL（最大） | 9 5.5 4.5 4 | 共模瞬态抗扰度（最小） | Commercial |
机械参数
| 宽度 | 1.6mm | 高度 | 1.15mm |
| 长度 | 2.9mm | 重量 | 0.0001 |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 引脚数 | :5 | 封装形式 | 5SOT-23 |
| 冷却的封装 | SOT-23 | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 3.05(Max) | 包装数量 | SOT-23 |
| 尺寸/外形 | 2.9 x 1.6 x 1.15mm | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| 系列 | :LVC | 已删除 | Compliant |
| 工艺（或'制程'，根据具体值如CMOS） | CMOS | 功能 | Buffer/Line Driver |
| 极性 | Non-Inverting | 软件 | SCES223T |
| 基本单元 | :741G125 | 技术 | CMOS |
| 图案编号 | Y | 射频系列/标准 | LVC |
| 使用的IC/零件 | View | 印刷电路板数量 | 5 |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40°C ~ 125°C |
相关型号
SN74LVC1G125DCKR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-70 T/R IC BUS BUFF TRI-ST N-INV SC705 SN74LVC1G125DCKR, 1-Bit Buffer, Line Driver, LVC, 3-State Non-Inverting 1.65 to 5.5V 5-Pin SC-70 BUFFER GATE, SINGLE, SMD, SC-70-5 IC, BUFFER, NON-INVERT, SC-70-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SC-70-5, SN74LVC1G125, SN74LVC1G125DCKR, Texas Instruments LVC, 1-Bit 三态 非反相 缓冲器，线路驱动器, 5针 SC-70封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE
SN74LVC2G17DBVR
texas instruments
Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SOT-23 T/R IC BUFF DL SCHMIT TRIG SOT23-6 Buffers & Line Drivers Dual Schmitt-Trgr IC, SCHMITT TRIGGER BUFF, 2BIT, 6SOT-23 IC, SCHMITT TRIGGER BUFFER, SOT-23-6, FULL REEL Dual Schmitt-Trigger Buffer Logic IC SOT-23-6, SN74LVC2G17, SN74LVC2G17DBVR, Texas Instruments
TPS70302PWP
texas instruments
LDO Regulator Pos 1.22V to 5.5V 1A/2A 24-Pin HTSSOP EP Tube IC REG LDO ADJ 1A/2A 24HTSSOP LDO Voltage Regulators 1A/2A Dual-Output IC, V REG, LINEAR, 2A, HTSSOP24 1A/2A Dual-Output LDO Voltage Regulator W/Power Up Seq. For Split Vo, Adjust. Outputs 1.22V - 5.5V Texas Instruments 双 LDO 调节器, 可调整的输出, 2A, 1.22 → 5.5 V输出 ±2%, 4.115W, 24针 HTSSOP封装
SN74LVC2G125DCUR
texas instruments
Buffer/Line Driver 2-CH Non-Inverting 3-ST CMOS 8-Pin VSSOP T/R Buffers & Line Drivers Tri-State Dual Bus IC BUS BUFF TRI-ST DL US8 IC, BUFFER GATE, DUAL 3STATE, SMD Dual Bus Buffer Gate with 3-State Outputs LVC 总线缓冲器, 4.2 ns@ 5 V, 1.65 → 5.5 V, 8针 US封装
SN74LVC1G125DBVT
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 Buffers & Line Drivers SNGL Bus Buffer Gate IC, SM, LOGIC, 74LVC1G, BUFFER Single Bus Buffer Gate With 3-State Outputs
REF3025AIDBZT
texas instruments
V-Ref Precision 2.5V 25mA 3-Pin SOT-23 T/R IC VREF SERIES PREC 2.5V SOT23-3 REF3025AIDBZT, Voltage Reference 2.495 to 2.505V, 0.2% 25mA 7V Max. 3-Pin SOT-23 Voltage References 2.5V 50ppm/DegC 50uA SOT23-3 Series IC, SM, VOLT REF 2.5V 50ppm/Degrees C, 50uA in SOT23-3 Series (Bandgap) Voltage Reference Voltage reference 2.495...2.505 V SOT-23-3, REF3025, REF3025AIDBZT, Texas Instruments Texas Instruments Fixed 2.5V 电压参考, ±0.2 %精确度, 25mA, 7 V输入, 3针 SOT-23封装
SN74LVC125APWR
texas instruments

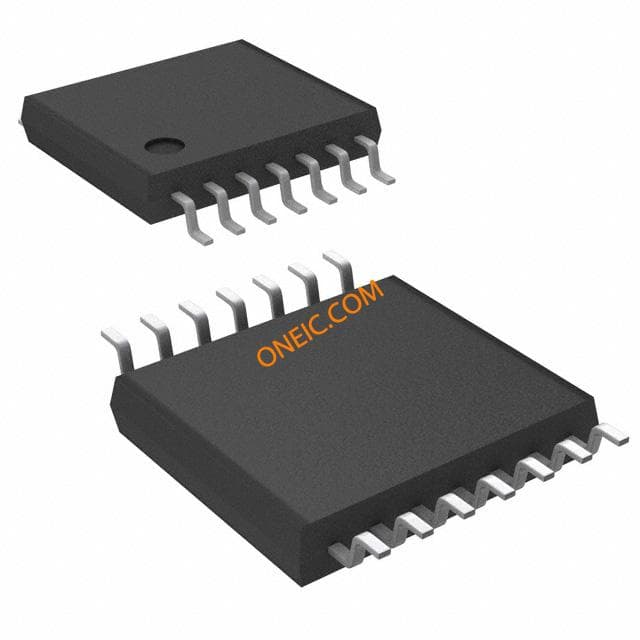

Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP T/R IC BUS BUFF TRI-ST QD 14TSSOP Buffers & Line Drivers Tri-State Quad Bus IC, 74LVC, SMD, 74LVC125, TSSOP14 Quadruple Bus Buffer Gate With 3-State Outputs Logic IC TSSOP-14, SN74LVC125, SN74LVC125APWR, Texas Instruments LVC 四总线缓冲器, 5.3 ns @ 2.7 V, 24mA, 1.65 → 3.6 V, 14针 TSSOP封装
