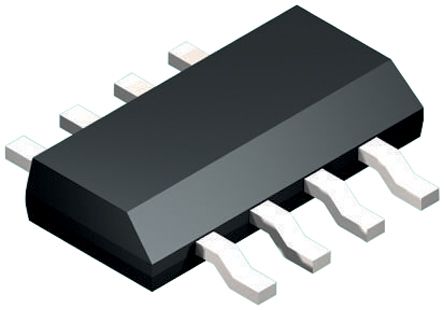

SN74LVC2G125DCTR

制造商	Texas Instruments Incorporated
描述	Buffer/Line Driver 2-CH Non-Inverting 3-ST CMOS 8-Pin SSOP T/R IC BUS BUFF TRI-ST DL N-INV SM8 Buffers & Line Drivers Tri-State Dual Bus IC, BUFFER/DRIVER, SMD Dual Bus Buffer Gate with 3-State Outputs Logic IC SM-8, SN74LVC2G125, SN74LVC2G125DCTR, Texas Instruments LVC 双总线缓冲器, 10.1 ns@ 30 pF, 32mA, 1.65 → 5.5 V, 8针 SM封装
分类	集成电路通用IC缓冲器与线路驱动器

商业参数

其他名称	296-12164-2	产品类别	Buffers & Line Drivers
标准包装数量	Tape & Reel	工厂包装数量	3000
标准封装名称	SSOP

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85411000
零件状态	ACTIVE	抗辐射加固	No

电气参数

电压	1.8 2.5 3.3 5	输入类型	CMOS/TTL
逻辑类型	LVC	输出类型	3-State
输入信号	Single-Ended	I/O 数量	5 V
位数	2	额定电压	1.65
输出电流	:32mA	输入数量	2
供电电压	1.65 V ~ 5.5 V	输出数量	2
通道数量	2	元件数量	2
最大额定电流	Catalog	输出1频率	150
施密特触发器输入	No	最小供电电压	1.65 V
传播延迟（最大）	11.6	静态电流 (Iq)	10 uA
传播延迟时间	4.3 ns at 3.3 V, 3.7 ns at 5 V	静态电流（最大）	0.01
输出高/低电流	32mA, 32mA	每元件位数	1
输出源/灌电流	32/-32	最大传播延迟 @ V, 最大CL	4.3@3.3V\|3.7@5V ns
传播延迟 tpLH / tpHL（最大）	9.1 4.8 4.3 3.7

机械参数

宽度	2.9(Max)	重量	0.000825 oz
包装方式	Tape and Reel	引脚样式	Gull-wing
端接方式	:SMD	安装类型	Surface Mount
安装样式	SMD/SMT	引脚数	:8
封装形式	8SSOP	冷却的封装	SSOP
材料表面处理	:MSL 1 - Unlimited	总长度	3.15(Max)
包装数量	SSOP	位数	8
外壳尺寸-插件	1.2(Max)	供应商器件封装	SM8

产品信息

系列	SN74LVC2G125	工艺（或'制程'，根据具体值如CMOS）	CMOS
功能	Buffer/Line Driver	极性	Non-Inverting
软件	SCES204O	基本单元	:742G125
技术	CMOS	图案编号	Y
功能框图	alt_sces204o.gif	射频系列/标准	LVC
使用的IC/零件	View	印刷电路板数量	8
