SN74LVC125APWR
| 制造商 | Texas Instruments Incorporated |
| 描述 | Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP T/R IC BUS BUFF TRI-ST QD 14TSSOP Buffers & Line Drivers Tri-State Quad Bus IC, 74LVC, SMD, 74LVC125, TSSOP14 Quadruple Bus Buffer Gate With 3-State Outputs Logic IC TSSOP-14, SN74LVC125, SN74LVC125APWR, Texas Instruments LVC 四总线缓冲器, 5.3 ns @ 2.7 V, 24mA, 1.65 → 3.6 V, 14针 TSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-1222-1 | 产品类别 | Buffers & Line Drivers |
| 标准包装数量 | Cut Tape, Tape & Reel | 工厂包装数量 | 2000 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :74LVC125 | 抗辐射加固 | No |
电气参数
| 电压 | 1.8 2.5 2.7 3.3 | 输入类型 | TTL/CMOS |
| 逻辑类型 | LVC | 输出类型 | 3-State |
| 输入信号 | Single-Ended | I/O 数量 | 5 V |
| 位数 | 4 | 额定电压 | 1.65 |
| 输入数量 | 4 | 供电电压 | 1.65 V ~ 3.6 V |
| 输出数量 | 4 | 通道数量 | 4 |
| 元件数量 | 4 | 最大额定电流 | Catalog |
| 输出1频率 | 100 | 施密特触发器输入 | No |
| 最小供电电压 | 1.65 V | 最大功耗 | 500 mW |
| 传播延迟（最大） | 15.8 | 静态电流 (Iq) | 1 uA |
| 传播延迟时间 | 5.3 ns at 2.7 V, 4.6 ns at 3.3 V | 静态电流（最大） | 0.04 |
| 输出高/低电流 | 24mA, 24mA | 每元件位数 | 1 |
| 输出源/灌电流 | -24/24 | 最大传播延迟 @ V, 最大CL | 5.3@2.7V|4.6@3.3V ns |
| 传播延迟 tpLH / tpHL（最大） | 11.8 5.8 5.3 4.6 | ||
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.002018 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :14 |
| 封装形式 | 14TSSOP | 冷却的封装 | TSSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 5.1(Max) |
| 包装数量 | TSSOP | 位数 | 14 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 14-TSSOP |
产品信息
| 系列 | SN74LVC125A | 工艺（或'制程'，根据具体值如CMOS） | CMOS |
| 功能 | Buffer/Line Driver | 极性 | Non-Inverting |
| 软件 | SCAS290Q | 基本单元 | :74 |
| 技术 | CMOS | 图案编号 | Y |
| 门数量 | :4 | 功能框图 | alt_scas290q.gif |
| 射频系列/标准 | LVC | 使用的IC/零件 | View |
| 印刷电路板数量 | 14 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40°C ~ 125°C |
相关型号
REF1004C-2.5
texas instruments
V-Ref Precision 2.5V 20mA 8-Pin SOIC Tube IC VREF SHUNT 2.5V 8-SOIC REF1004C-2.5, Voltage Reference 2.49 to 2.511V, 20mV 20mA 8-Pin SOIC Voltage References Micropower Voltage Reference VOLTAGE REFERENCE, SHUNT, 2.5V, SOIC-8 Voltage reference source; 2.5V; SO8 Micropower Voltage Reference Texas Instruments Fixed 2.5V 电压参考, ±0.8 %精确度, 20mA, 8针 SOIC封装
SN74LVC1G17DBVR
texas instruments
Schmitt Trigger Buffer 1-CH Non-Inverting CMOS 5-Pin SOT-23 T/R IC BUFFER SCHMIT TRIG SOT23-5 Buffers & Line Drivers Single Schmitt-Trgr IC, BUFFER, SCHMITT TRIG, 5SOT23 IC, SCHMITT TRIGGER BUFFER, SOT-23-5, FULL REEL IC: digital; Schmitt trigger, buffer; SOT23-5 Single Schmitt-Trigger Buffer Logic IC SOT-23-5, SN74LVC1G17, SN74LVC1G17DBVR, Texas Instruments Texas Instruments LVC 系列 非反相 施密特触发缓冲器 , 5针 SOT-23封装
MSP430F1612IPM
texas instruments

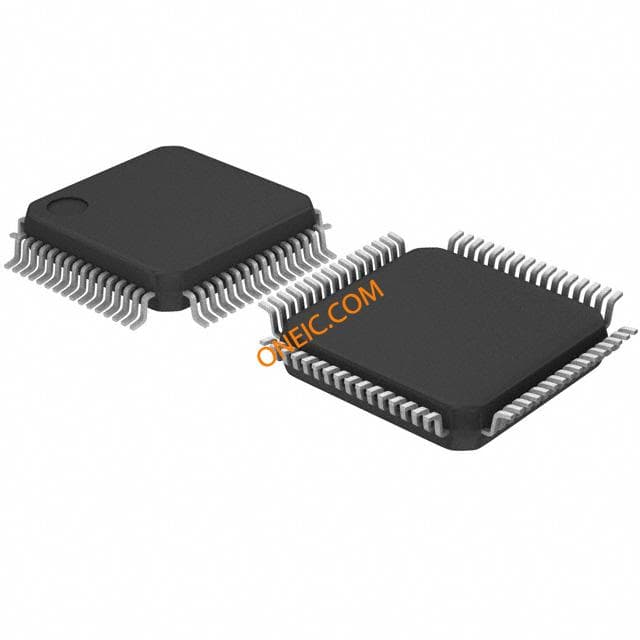

MCU 16-Bit MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP MCU 16-bit MSP430 MSP430 RISC 55KB Flash 3.3V 64-Pin LQFP Tray IC MCU 16BIT 55KB FLASH 64LQFP MSP430F1612IPM, 16 bit Microcontroller MSP430 8MHz 55, 256kB, B Flash, 5kb RAM, I2C SPI 64-Pin LQFP MSP430 FLASH MCU, SMD, LQFP64, 430 Microcontroller; Flash:55kB; RAM:5kB; 8MHz; QFP64 16-bit Ultra-Low-Power MCU, 55kB Flash, 5120B RAM, 12-Bit ADC, Dual DAC, 2 USART, I2C, HW Mult, DMA Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B，55 kB ROM 闪存, 5 kB RAM, 64针 LQFP封装 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr
EKI-LM3S811
texas instruments
Evaluation Board For LM3S811 Microcontroller Development Boards & Kits - ARM STELLARIS LM3S811 EVAL IAR KICKSTART KIT EVAL IAR LM3S811 EKI-LM3S811, Development Kit, 32 bit, ARM Cortex LM3S811, ICDI, IAR TOOL, EVAL KIT
TUSB3410IVF
texas instruments
USB To Serial Port Controller 32-Pin LQFP Tray USB Interface IC RS232/IrDA Ser-to-USB Converter USB TO SERIAL PORT CONTROLLER IC CTRLR SERIAL-TO-USB 32-LQFP TUSB3410IVF, USB Controller 12Mbit/s USB 2.0, 3.3V, 32-Pin, LQFP IC, USB TO SERIAL PORT CONTROLLER LQFP32 CONTROLLER, SERIAL-TO-USB, 32LQFP Interface; USB-UART; 3÷3.6VDC; LQFP32 RS232/IrDA Serial-to-USB Converter Texas Instruments 12MBps USB 控制器, 支持USB 2.0, 3.3 V, 32针 LQFP封装
SN74LVCH16244ADGGR
texas instruments

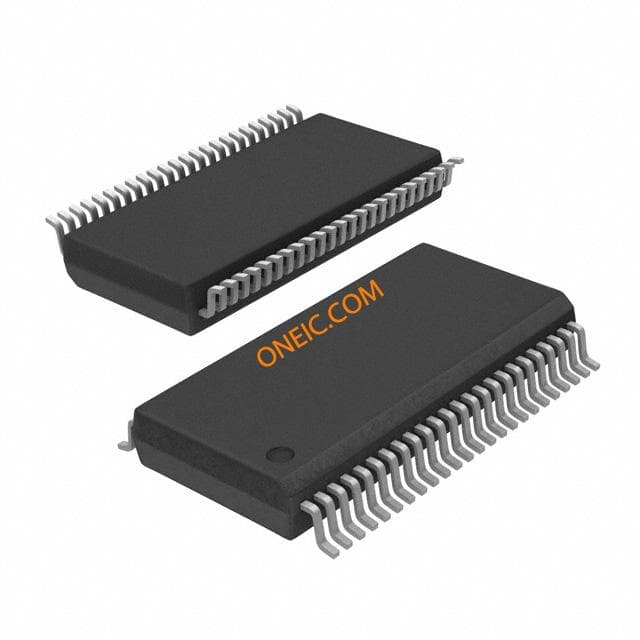

Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin TSSOP T/R IC BUFF/DVR TRI-ST 16BIT 48TSSOP Buffers & Line Drivers Tri-State 16-Bit BUFFER/DRIVER, 16BIT, TRI-STATE, TSSOP48 16-Bit Buffer/Driver With 3-State Outputs LVC, 16-Bit 三态 非反相 缓冲器，驱动器, 48针 TSSOP封装
RE933-02
Roth Elektronik

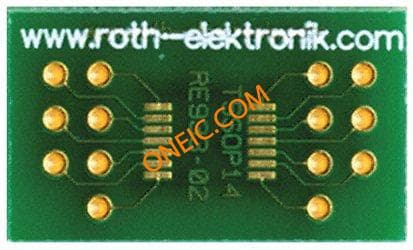

RE933-02, Surface Mount (SMT) Board TSSOP Epoxy Glass Double-Sided 23.5 x 13.5 x 1.5mm FR4 ADAPTOR, SMD, TSSOP-14, 0.65MM SMDmulti-adaptorTSSOP-14pin,RE933-02 Board: universal; multiadapter; W:13.5mm; L:23.5mm; TSSOP14 Laboratory card FR4 Epoxide + chem. Ni/Au TSSOP14 Adapter, RE933-02, Roth Elektronik
