TPS70302PWP
| 制造商 | Texas Instruments Incorporated |
| 描述 | LDO Regulator Pos 1.22V to 5.5V 1A/2A 24-Pin HTSSOP EP Tube IC REG LDO ADJ 1A/2A 24HTSSOP LDO Voltage Regulators 1A/2A Dual-Output IC, V REG, LINEAR, 2A, HTSSOP24 1A/2A Dual-Output LDO Voltage Regulator W/Power Up Seq. For Split Vo, Adjust. Outputs 1.22V - 5.5V Texas Instruments 双 LDO 调节器, 可调整的输出, 2A, 1.22 → 5.5 V输出 ±2%, 4.115W, 24针 HTSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-8021-5 | 产品类别 | LDO Voltage Regulators |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 60 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电源抑制比 | 22 | 噪声 | 78 |
| 输出端 | 2 | 精度 | ±2 % |
| 输出类型 | Adjustable | 额定功率 | 4115 W |
| 稳压器类型 | Linear | 额定电压 | 2.7 V |
| 电源调整率 | 0.01(Typ) %V | 负载调整率 | 1(Typ) mV |
| 输出电流 | 1|2 A | 供电电压 | 0.16@1A V |
| 输出数量 | 2 | 电压基准 | 1.224(Typ) V |
| 输出电流1 | :1A | 输出电流2 | :2A |
| 稳压器拓扑 | Positive Adjustable | 电容 @ Vr, F | Ceramic Non-Ceramic |
| 最大额定电流 | Catalog | 稳压器数量 | 2 |
| 最小输入电压 | 1.22 V ~ 5.5 V | 输出电压精度 | �2 % |
| 最大功耗 | 4115 mW | 静态电流 (Iq) | 0.18 |
| 直流输入电压（最小） | 2.7 V | 静态电流（最大） | 0.25 mA |
| 电压负载调整率 | 2 % | 输入偏置电流（最大） | 0.185 mA |
| 输出电压2（可调范围） | :5.5V | 最大持续工作电压（MCOV） | :6V |
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.003460 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :24 |
| 封装形式 | 24HTSSOP EP | 冷却的封装 | HTSSOP EP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 7.9(Max) |
| 包装数量 | HTSSOP EP | 位数 | 24 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 24-HTSSOP |
产品信息
| 类型 | LDO | 系列 | TPS70302 |
| 产品特性 | Good Power Signal|Thermal Shutdow... | 极性 | Positive |
| 软件 | SLVS285H | 拓扑 | LDO |
| 输出及类型 | Adjustable Output | 功能框图 | alt_slvs285h.gif |
| 使用的IC/零件 | View | 其他规格 | :1.22V to 5.5V |
| 印刷电路板数量 | 24 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
相关型号
SN74LVC1G125DBVR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 SN74LVC1G125DBVR, Bus Buffer, LVC, 4 @ 5 Vns, 32mA 1.65 to 5.5V 5-Pin SOT-23 IC, BUFFER GATE, BUS, SMD, SOT-23-5 IC, BUFFER, NON-INVERT, SOT-23-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SOT-23-5, SN74LVC1G125, SN74LVC1G125DBVR, Texas Instruments LVC 总线缓冲器, 4 ns @ 5 V, 32mA, 1.65 → 5.5 V, 5针 SOT-23封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE
SN74LVC1G125DCKR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-70 T/R IC BUS BUFF TRI-ST N-INV SC705 SN74LVC1G125DCKR, 1-Bit Buffer, Line Driver, LVC, 3-State Non-Inverting 1.65 to 5.5V 5-Pin SC-70 BUFFER GATE, SINGLE, SMD, SC-70-5 IC, BUFFER, NON-INVERT, SC-70-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SC-70-5, SN74LVC1G125, SN74LVC1G125DCKR, Texas Instruments LVC, 1-Bit 三态 非反相 缓冲器，线路驱动器, 5针 SC-70封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE
SN74LVC2G17DBVR
texas instruments
Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SOT-23 T/R IC BUFF DL SCHMIT TRIG SOT23-6 Buffers & Line Drivers Dual Schmitt-Trgr IC, SCHMITT TRIGGER BUFF, 2BIT, 6SOT-23 IC, SCHMITT TRIGGER BUFFER, SOT-23-6, FULL REEL Dual Schmitt-Trigger Buffer Logic IC SOT-23-6, SN74LVC2G17, SN74LVC2G17DBVR, Texas Instruments
SN74LVC2G17DCKR
texas instruments
Schmitt Trigger Buffer 2-CH Non-Inverting CMOS 6-Pin SC-70 T/R IC BUFF DL SCHMIT TRIG SC70-6 Buffers & Line Drivers Dual Schmitt-Trgr BUFFER, DUAL SCHMITT TRIGGER, SMD IC: digital; Schmitt trigger, buffer; Channels:2; SO70-6 Dual Schmitt-Trigger Buffer Logic IC SC-70-6, SN74LVC2G17, SN74LVC2G17DCKR, Texas Instruments Texas Instruments LVC 系列 双 非反相 施密特触发缓冲器 , 6针 SC-70封装
PCF8574N
texas instruments
REMOTE 8-BIT I/O EXPANDER FOR I2C I/O Expander 16-Pin PDIP Tube I2C GPIO Expander 6V 16-Pin PDIP Tube IC I/O EXPANDER I2C 8B 16DIP PCF8574N, I/O Expander, 16-Pin PDIP Interface - I/O Expanders 8bit I/O Expndr I/O EXPANDER, 8BIT, 12C, 100KHZ, DIP-16 Remote 8-Bit I/O Expander for I2C-Bus 8通道 输入/输出扩展器, I2C, SMBus接口, 16针 PDIP封装
TMS320VC5507PGE
texas instruments
DSP Fixed-Point 16-Bit 200MHz 400MIPS 144-Pin LQFP IC DSP FIXED-POINT 16BIT 144LQFP Digital Signal Processors & Controllers - DSP, DSC Fixed-Pt Dig Sig Proc IC, DSP, FXD-PT, 200MHZ, 144LQFP Fixed-Point Digital Signal Processor Texas Instruments 16bit 数字信号处理器, 200MHz, 64 kB ROM ROM, 128 kB RAM, 144针 LQFP封装
SN74CB3T3245DW
texas instruments
Bus Switch 1-Element CMOS 8-IN 20-Pin SOIC Tube Digital Bus Switch ICs 8-Bit FET 2.5/3.3V Lo-Vltg Bus Switch IC SWITCH BUS FET HS 20-SOIC LOGIC, SWITCH BUS FET HS, 20SOIC 8-Bit FET 2.5-V/3.3-V Low-Voltage Bus Switch With 5-V Tolerant Level Shifter , CB3T系列 总线开关, 8 x 1:1, 2.3 → 3.6 V电源, 20针 SOIC封装

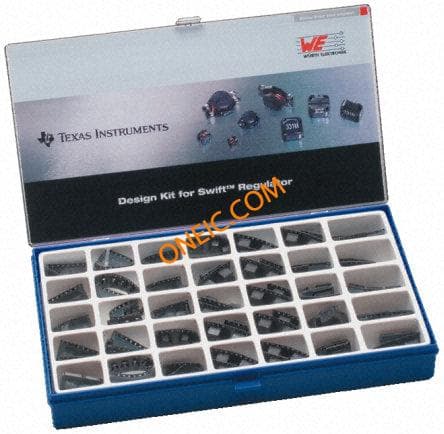

744728
Wurth Electronics
Inductor Kits & Accessories TI Design Kit DESIGN KIT INDUCTORS FOR TI Wurth Elektronik Power Inductor Inductor Design Kit, 176 Pieces DESIGN-KIT SMD-POWER CHOKES FOR TI Wurth Elektronik 176件 电感器套件, 套件包含功率电感器
TPS3801I50DCKR
texas instruments
Volt Supervisor Supply 1.8V/2.5V/2.7V/3V/3.3V/5V 5-Pin SC-70 T/R IC 4.55V SUPPLY MON SC-70-5 Supervisory Circuits 4.55V IC, VOLTAGE DETECTOR, MICRO, SUP. Processor Supervisory Circuits

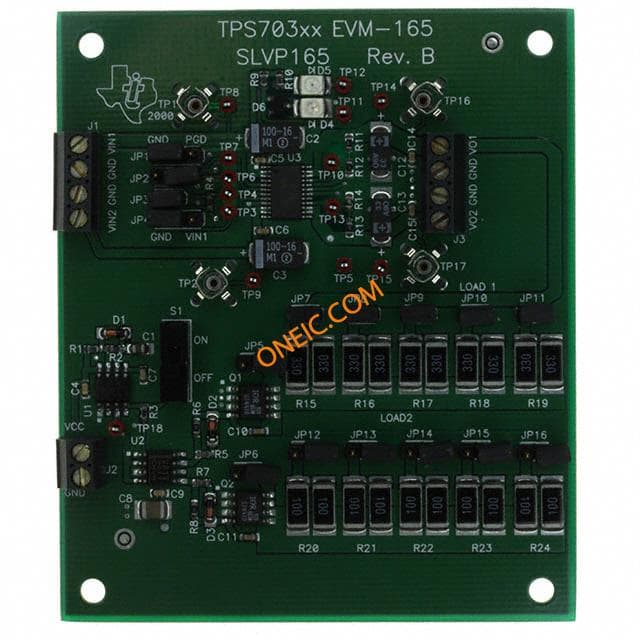

TPS70351EVM-165
texas instruments
Development Tools, Evaluation Module For TPS70351 Power Management IC Development Tools TPS70351-165 Eval Mod EVAL MOD FOR TPS70351

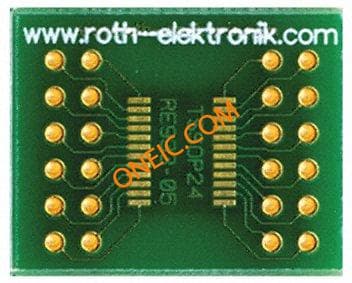

RE933-05
