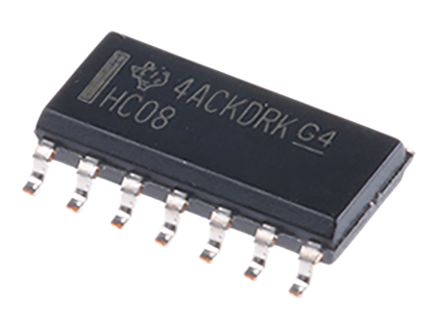

点击放大查看
SN74HC08D
| 制造商 | Texas Instruments Incorporated |
| 描述 | AND Gate 4-Element 2-IN CMOS 14-Pin SOIC Tube IC QUAD 2-INPUT AND GATE 14-SOIC SN74HC08D, Logic Gate Quad 2 Input AND, HC, 5.2mA 2 to 6V 14-Pin SOIC Logic Gates Quad 2-Input IC, QUAD 2-INPUT AND, SMD, 74HC08 IC, QUAD AND GATE, 2I/P, SOIC-14 Quadruple 2-Input Positive-AND Gates Logic IC SOIC-14, SN74HC08, SN74HC08D, Texas Instruments Texas Instruments 逻辑门, 5.2mA, 2 → 6 V, 14针 SOIC封装 |
| 分类 |
商业参数
| 产品 | AND | 产品类别 | Logic Gates |
| 标准包装数量 | Bulk, Rail / Tube | 工厂包装数量 | 50 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :74HC08 | 抗辐射加固 | No |
电气参数
| 电压 | 5 | 输入类型 | CMOS |
| 逻辑类型 | HC | 输出类型 | CMOS |
| 位数 | 4 | 额定电压 | 2 V |
| 输出电流 | :5.2mA | 输入数量 | 2-IN |
| 供电电压 | 2 V ~ 6 V | 输出数量 | 1 |
| 传播延迟 | 50pF | 元件数量 | 4 |
| 最大额定电流 | Catalog | 输出1频率 | 70 |
| 最小供电电压 | 6 V | 静态电流 (Iq) | 2 uA |
| 传播延迟时间 | 100 ns | 逻辑电压 - VIL, VIH | 0.5 V ~ 1.8 V |
| 静态电流（最大） | 2µA | 输出高/低电流 | 5.2mA, 5.2mA |
| 最大传播延迟 @ V, 最大CL | 100@2V|20@4.5V|17@6V ns | 传播延迟 tpLH / tpHL（最大） | 28 |
| 共模瞬态抗扰度（最小） | Commercial | ||
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 8.65mm | 重量 | 0.004318 oz |
| 风扇类型 | :HC | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :14 |
| 封装形式 | 14SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 8.75(Max) |
| 包装数量 | SOIC | 尺寸/外形 | 8.65 x 3.91 x 1.58mm |
| 位数 | 14 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 14-SOIC | ||
产品信息
| 系列 | SN74HC08 | 已删除 | Compliant |
| 工艺（或'制程'，根据具体值如CMOS） | CMOS | 功能 | AND |
| 软件 | SCLS081F | 基本单元 | :74 |
| 技术 | CMOS | 图案编号 | Y |
| 门数量 | 4 | 线路数量 | 2 / 1 |
| 电路数 | 4 | 射频系列/标准 | HC |
| 使用的IC/零件 | View | 印刷电路板数量 | 14 |
| 输入数量及类型 | 0 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
