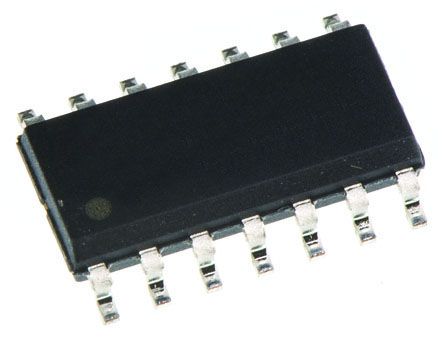

点击放大查看
CD74HC08M
| 制造商 | Texas Instruments Incorporated |
| 描述 | AND Gate 4-Element 2-IN CMOS 14-Pin SOIC Tube IC QUAD 2-IN AND GATE 14-SOIC Logic Gates Quad 2-Input HS IC, 74HC CMOS, SMD, 74HC08, SOIC14 High Speed CMOS Logic Quad 2-Input AND Gates Texas Instruments 96 逻辑门, 5.2mA, 2 → 6 V, 14针 SOIC封装 |
| 分类 |
商业参数
| 产品 | AND | 其他名称 | 296-9169-5 |
| 产品类别 | Logic Gates | 标准包装数量 | Bulk, Rail / Tube |
| 工厂包装数量 | 50 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :74HC08 | 抗辐射加固 | No |
电气参数
| 电压 | 5 | 输入类型 | CMOS |
| 逻辑类型 | HC | 输出类型 | CMOS |
| 位数 | 4 | 额定电压 | 2 V |
| 输出电流 | :5.2mA | 输入数量 | 2-IN |
| 供电电压 | 2 V ~ 6 V | 输出数量 | 1 |
| 元件数量 | 4 | 最大额定电流 | Catalog |
| 输出1频率 | 70 | 最小供电电压 | 6 V |
| 静态电流 (Iq) | 2 uA | 传播延迟时间 | 90 ns |
| 逻辑电压 - VIL, VIH | 1.5 V ~ 4.2 V | 静态电流（最大） | 2µA |
| 输出高/低电流 | 5.2mA, 5.2mA | 输出源/灌电流 | -24/24 |
| 最大传播延迟 @ V, 最大CL | 90@2V|18@4.5V|15@6V ns | 传播延迟 tpLH / tpHL（最大） | 23 |
| 共模瞬态抗扰度（最小） | Military | ||
机械参数
| 宽度 | 4(Max) | 重量 | 0.004564 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :14 |
| 封装形式 | 14SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 8.75(Max) |
| 包装数量 | SOIC | 位数 | 14 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 14-SOIC |
产品信息
| 系列 | CD74HC08 | 工艺（或'制程'，根据具体值如CMOS） | CMOS |
| 功能 | AND | 软件 | SCHS118C |
| 基本单元 | :74 | 技术 | CMOS |
| 门数量 | 4 | 线路数量 | 2 / 1 |
| 电路数 | 4 | 射频系列/标准 | HC |
| 使用的IC/零件 | View | 印刷电路板数量 | 14 |
| 输入数量及类型 | 0 | ||
环境参数
| 测试温度 | -55 to 125 | 工作温度 | -55 to 125 °C |
