MSP430F2618TPM

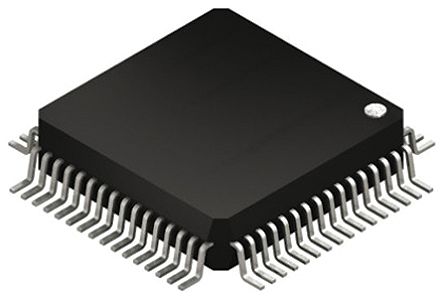

点击放大查看

MSP430F2618TPM

制造商
Texas Instruments Incorporated
描述MCU 16-bit MSP430 RISC 116KB Flash 2.5V/3.3V 64-Pin LQFP Tray 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr MCU MCU 16-bit MSP430 MSP430 RISC 116KB Flash 2.5V/3.3V 64-Pin LQFP Tray IC MCU 16BIT 116KB FLASH 64LQFP MSP430F2618TPM, 16 bit Microcontroller MSP430 16MHz 116, 256kB, B Flash, 8kb RAM, I2C LIN SPI 64-Pin LQFP IC, MCU, 16BIT, 116K FLASH, 64LQFP 16-Bit Ultra-Low-Power MCU, 116kB Flash, 8KB RAM, 12-Bit ADC, Dual DAC, 2 USCI, HW Mult, DMA Microcontroller 16 Bit LQFP-64, MSP430 F2618, MSP430F2618TPM, Texas Instruments Texas Instruments MSP430 系列 16 bit MSP430 MCU, 16MHz, 116 kB，256 B ROM 闪存, 8 kB RAM, 64针 LQFP封装
分类
集成电路嵌入式微控制器无线MCU
对参数有疑问？问 AI 助手

商业参数

商标名MSP430产品类别16-bit Microcontrollers - MCU
标准包装数量Trays工厂包装数量160
标准封装名称QFP

合规参数

RoHSRoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85423190
零件状态ACTIVE抗辐射加固No
认证机构No安全特性N/A

电气参数

GPIO48转速16 MHz
定时器10 x 16 bit存储器3
RAM 大小8 KB内核大小16-Bit
核心类型MSP430频率16 MHz
接口I2C/SCI/SPI/UART时钟速率16 MHz
比较器数量Yes延迟时间1
分辨率16bit存储器容量8 KB
I/O 数量48, 64计数器/定时器2
位数12额定电压1.8 → 3.6 V
看门狗定时器1时钟频率:16MHz
数据转换器A/D 8x12b, D/A 2x12b最大频率16MHz
DAC数量2振荡器类型Internal
串行协议2供电电压2.5|3.3 V
分辨率（位）12bit通道数量8
模拟输入/输出ADC12 - 8ch非易失性存储器116
程序存储器大小116 KB程序存储器类型Flash
ADC/DAC 数量8最小输入电压3.6
最小供电电压1.8 V频率（中心/带宽）16bit
平均正向功率0.5每元件位数12 bit
供电电压 (Vcc/Vdd)1.8 V ~ 3.6 V

机械参数

宽度10.2mm高度1.45mm
长度10.2mm重量0.012088 oz
包装方式Tube引脚样式Gull-wing
端接方式:SMD安装类型Surface Mount
安装样式SMD/SMT引脚数:64
封装形式64LQFP冷却的封装LQFP
材料表面处理:MSL 3 - 168 hours总长度10.2(Max)
包装数量LQFP尺寸/外形10.2 x 10.2 x 1.45mm
位数64外壳尺寸-插件1.45(Max)
核心数/总线宽度16 Bit脉冲宽度失真（最大）3 x 16 bit, 7 x 16 bit

产品信息

SPI4USB0
系列2 Series产品特性Watchdog Temp Sensor Brown Out Reset
协议2软件SLAS541K
引导加载程序UART闪存大小:116KB
倍率16x16片内RAM（通道数×位宽）8-chx12-bit
外设Brown-out Detect/Reset, DMA, POR, PWM, WDT特殊I/ON/A
架构RISC连接性I²C, IrDA, LIN, SCI, SPI, UART/USART
可编程性Yes定时器数量2
射频系列/标准MSP430使用的IC/零件View
DigiKey可编程Yes印刷电路板数量64
A/D转换器数量:8

环境参数

测试温度-40 to 105工作温度-40 to 105 °C
结工作温度105C

文档与媒体

PDF 文档
slas541k.pdf
在线文档
MSP430F241x,261x Datasheet
PDF 文档
1772494.pdf
PDF 文档
msp430f2618.pdf
在线文档
msp430f2618
