点击放大查看

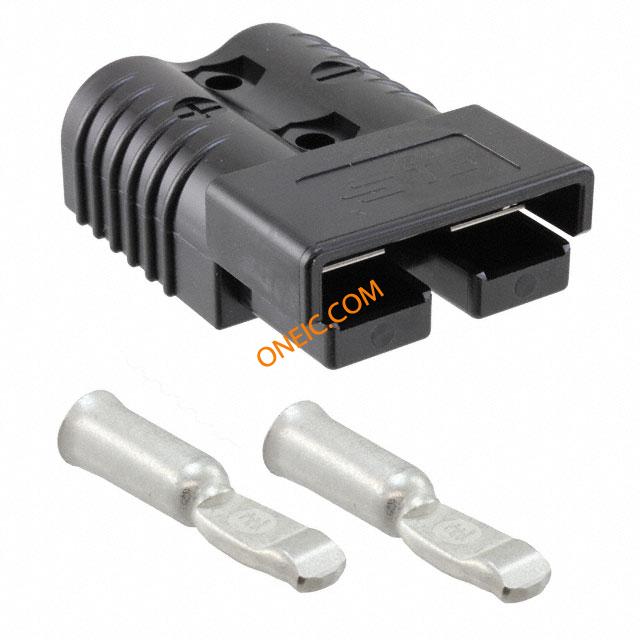

1604042-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Power to the Board KIT,175A,1/0 AWG BLACK KIT,175A,1/0 AWG,BLACK KIT,175A,1/0 AWG,BLACK Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONN PLUG 2POS INLINE CRIMP |
| 分类 |
商业参数
| 其他名称 | A116445 | 标准包装规格 | 50 |
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 连接器阻抗 | 压接 | 最大额定电流 | 175 A |
机械参数
| 颜色 | Black | 宽度 | 53.5 mm [ 2.11 in ] |
| 高度 | 25.4 mm [ 1 in ] | 长度 | 78.2 mm [ 3.08 in ] |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 电缆类型 | 绞线 |
| 导线线规 | 1/0 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 电缆直径 | 98676 – 118412 |
| 连接器类型 | Assembly (Kit), Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 安装样式 | Wire |
| 排数 | 1 | 连接器样式 | 2 Poles |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate (PC) |
| 面板安装类型 | 不带 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 2 |
| 位数 | 2 | 外壳尺寸-插件 | 插头/插座 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 安装孔直径 | 带有 |
| 接触镀层厚度 | 50µin (1.27µm) | 线规或范围 - AWG | 2 |
产品信息
| 系列 | 175 | 产品子类型 | Connectors |
| 应用细节 | Power | 装配配置 | Kit |
环境参数
| 工作温度 | -20°C ~ 105°C | ||
