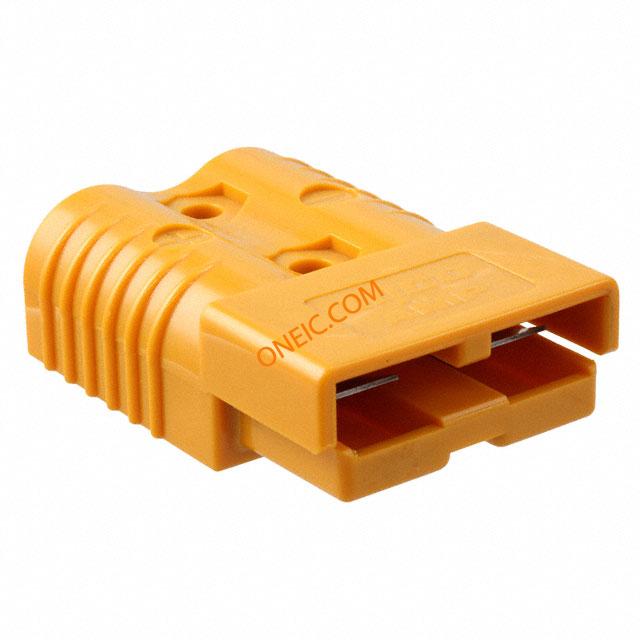

点击放大查看
1604037-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 2 POS ST Bulk Power Connectors CONN HOUSING 2POS ORANGE Power to the Board HSG SUB-ASY ORANGE 175A 175A HOUSING SUB-ASSY,ORANGE 175A HOUSING SUB-ASSY,ORANGE Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant |
| 分类 |
商业参数
| 标准包装规格 | 50 | 产品类别 | Power to the Board |
| 标准包装数量 | Bag | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 600 | 最大额定电流 | 175 A |
机械参数
| 颜色 | Orange | 宽度 | 53.5 mm [ 2.11 in ] |
| 高度 | 25.4 mm [ 1 in ] | 长度 | 78.2 mm [ 3.08 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 橙色 | 电缆类型 | 分离式导线 |
| 导线线规 | (1/0)-4 AWG | 触头类型 | Non Gendered |
| 安装类型 | Straight | 电缆直径 | 41444 – 118412 |
| 连接器类型 | Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 排数 | 1 |
| 触头材料 | Copper | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 50 | 面板安装类型 | 不带 |
| 触点数 | 2 | 堆叠方向 | Side to Side |
| 接触件端接 | Crimp | 绝缘直径 | 18 mm [ .7 in ] |
| 位数 | 2 | 外壳尺寸-插件 | 插头/插座 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | 护套 |
| 应用细节 | Power | ||
环境参数
| 工作温度 | -20°C ~ 105°C | ||
