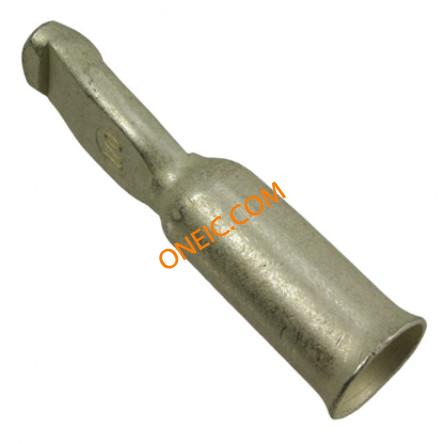

点击放大查看
1604039-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 2AWG AMP Power series 175 crimp contact,2 AWG Power to the Board CONTACT 175A/180A 2 AWG Power Connectors Product Highlights:Contact175 AMP Series, 180 AMP SeriesWire Size (AWG/CM) = 2 AWGCurrent = 175 Amps., 180 Amps.Wire Insulation Diameter, Max. = 22.86 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONTACT,175A/180A,#2AWG,L/P CONTACT,175A/180A,#2 AWG,L/P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 300 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V ac/dc | 供电电压 | 600 |
| 最大额定电流 | 175 A, 180 A | 连接器类型 - 电压输入 | 冷间锻造 |
机械参数
| 镀层 | 银 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 2 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 触点形状 | 直式 | 安装类型 | 闭式压线筒 |
| 释放力 | 带有 | 电缆直径 | 67100 – 69073 |
| 连接器类型 | Connector Power | 接触镀层 | Silver |
| 外壳材料（壳体） | 镍 | 插入件材料 | 铜合金 |
| 触头材料 | Copper | 壳体材料 | Copper |
| 包装数量 | 400 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 接触件端接 | Crimp |
| 典型触点布局 | Power | 接触镀层厚度 | 50 µm [ 1.27 µin ] |
| 线规或范围 - AWG | 2 | 护套（绝缘）厚度 | 50 µm [ 1.27 µin ] |
产品信息
| 类型 | Machined | 连接器性别 | SKT |
| 产品子类型 | Contacts | 应用细节 | Power |
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
