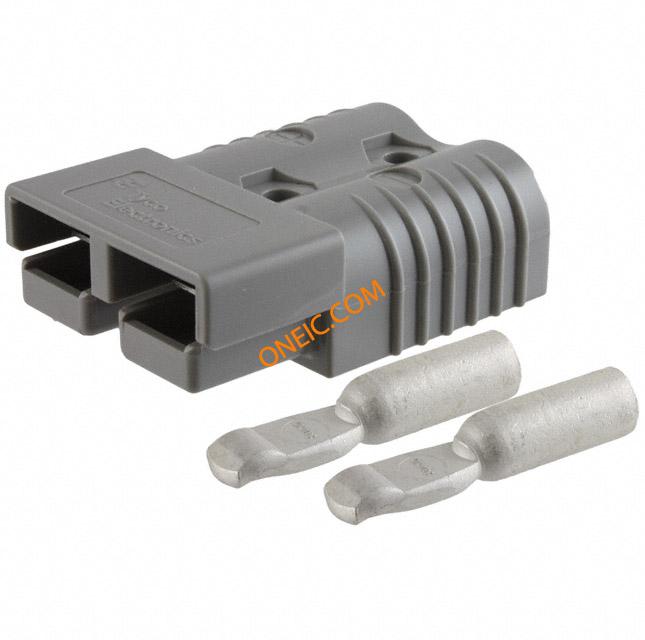

点击放大查看
1604044-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Battery PL 2 POS ST 2 Terminal 1 Port Power Connectors CONN PLUG 2POS 4AWG SILVER CRIMP Power to the Board 175A 4AWG GRAY Conn Battery PL 2 POS ST 2 Terminal 1 Port Product Highlights:Connector Kit175 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 4 AWGCurrent = 175 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant KIT,175A, 4 AWG,GRAY |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600V | 供电电压 | 600 |
| 连接器阻抗 | 压接 | 最大额定电流 | 175A |
机械参数
| 颜色 | Gray | 宽度 | 53.5 mm [ 2.11 in ] |
| 高度 | 25.4 mm [ 1 in ] | 长度 | 78.2 mm [ 3.08 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 灰色 | 电缆类型 | 绞线 |
| 导线线规 | 4 AWG | 端接方式 | Crimp |
| 安装类型 | Straight | 电缆直径 | 41444 |
| 连接器类型 | Assembly (Kit), Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 排数 | 1 |
| 连接器样式 | 2 Poles | 触头材料 | Copper Alloy |
| 壳体材料 | 聚碳酸酯, 聚碳酸酯 | 面板安装类型 | 不带 |
| 端接样式 | 插针/插座 | 位数 | 2 |
| 外壳尺寸-插件 | 插头/插座 | 绝缘材料 - 材质 | Polycarbonate (PC) |
| 安装孔直径 | 带有 | 线规或范围 - AWG | 4 |
产品信息
| 类型 | Battery | 连接器性别 | PL |
| 产品子类型 | 连接器组件 | 应用细节 | Power |
| 装配配置 | Kit | ||
环境参数
| 工作温度 | -20°C ~ 105°C | ||
