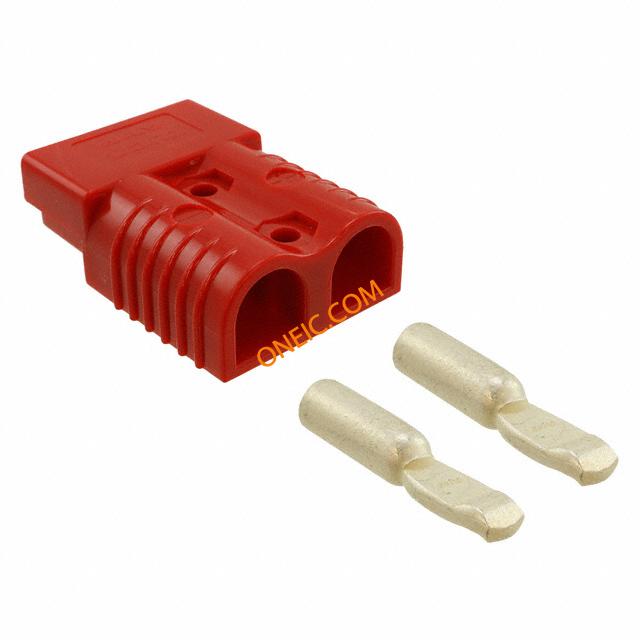

1604044-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Battery PL 2 POS ST 2 Terminal 1 Port Power Connectors CONN PLUG 2POS 4AWG SILVER CRIMP Power to the Board KIT 175A 4AWG RED Conn Battery PL 2 POS ST 2 Terminal 1 Port Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONNECTOR KIT,175A, 4 AWG,RED |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600V | 最大额定电流 | 175A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Red | 重量 | 0 |
| 包装方式 | Bulk | 导线线规 | 4 AWG |
| 端接方式 | Crimp | 安装类型 | Straight |
| 连接器类型 | Assembly (Kit), Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 安装样式 | Panel |
| 排数 | 1 | 连接器样式 | 2 Poles |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate (PC) |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 2 | 接触件端接 | :Crimp |
| 位数 | 2 | 绝缘材料 - 材质 | Polycarbonate (PC) |
| 线规或范围 - AWG | 4 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Battery | 连接器性别 | PL |
| 系列 | AMP Power | 产品子类型 | Connectors |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -20°C ~ 105°C | 结工作温度 | 105C |
