点击放大查看

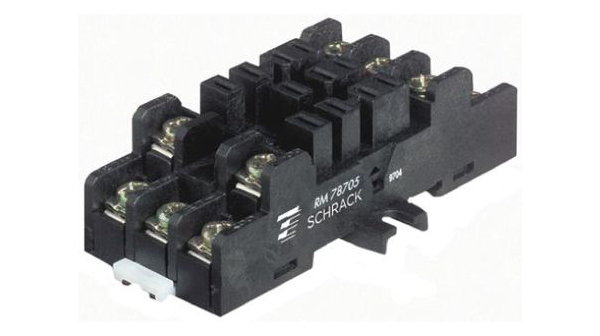

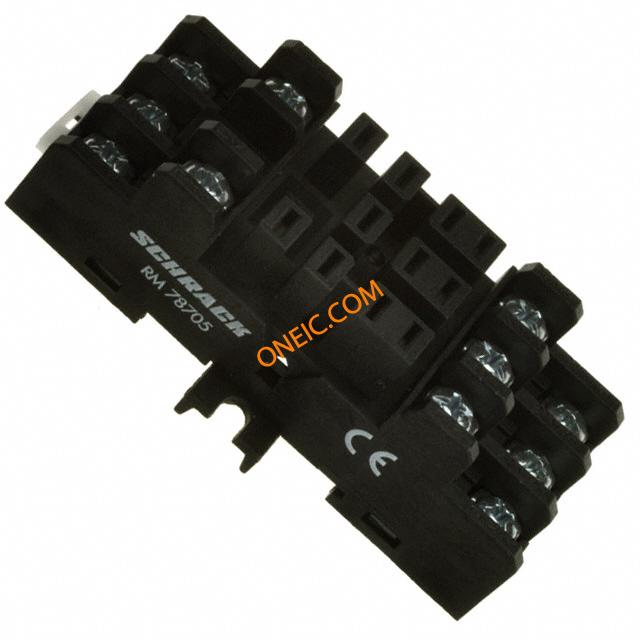

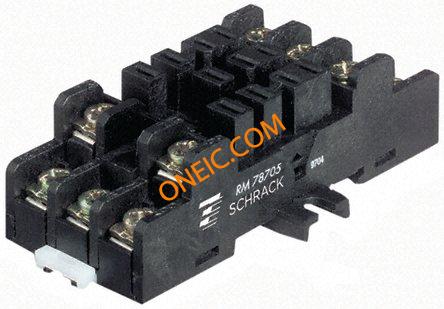

RM78705
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Relay Socket SKT 11 POS Screw ST Relay Sockets & Hardware SCRW TRM SCKT FOR RM SOCKET RELAY SCREW RM SERIES Relay Socket For Use With RM Series Conn Relay Socket SKT 11 POS Screw ST Product Highlights:SocketRM SeriesNumber of Poles = AllTerminal Type = ScrewWithout Grounding Provision RELAY SOCKET Socket,Relay;RMSERIES,ALLPOLES,PANELMOUNT,SCREWTERMINALS Relay socket, RM78705, TE Connectivity RM78705 |
| 分类 |
商业参数
| 零件号别名 | 2-1393844-5 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | Bulk | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 标准 | VDE |
| 海关税号 | 85364110 | ||
电气参数
| 额定电压 | :250VAC | 承载电流 | :16A |
| 隔离电压 | 400V | 最大额定电流 | :16A |
| 最小供电电压 | 250V | ||
机械参数
| 重量 | 0.064 | 端接方式 | Screw |
| 安装类型 | Straight | 连接器类型 | :Screw |
| 安装样式 | Socket | 引脚数 | :11 |
| 端接样式 | Screw | 触点数 | 11 |
| 位数 | 11 | ||
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | RM | 功能 | GeneralPurpose |
| 制造商全称 | RM,PowerRelay | 附件类型 | Socket |
| 有铅工艺兼容 | :No | 适用产品/相关产品 | RM, SCHRACK |
环境参数
| 测试温度 | :No | ||
