RM702615
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 3PDT 16Amp Pwr Relay RELAY GEN PURPOSE 3PDT 16A 115V Electromechanical Relay 3PDT 40A 115VAC 1.85KOhm Plug-In Electromechanical Relay 3PDT 40A 115VAC 1.85KOhm Plug-In Product Highlights:RM2/3/7 SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 16 Amps.Monostable Coil Magnetic SystemInput Voltage = 115 VAC POWER RELAY, 3PDT, 115VAC, 16A, PLUG IN RM702615 |
| 分类 |
商业参数
| 零件号别名 | 1-1393844-0 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 2.7 VA |
| 量程（°/s） | :TE - RM7 Series | 线圈电阻 | 1850 Ohms |
| 输出电流 | :16A | 供电电压 | 115 VAC |
| 开关电压 | 440VAC - Max | Vgs(th)（最大）@ Id | 34.5 VAC |
| 触点电压（最大） | :400V | 平均正向功率 | 2.8 VA |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 92 VAC | 触点额定电流 | 16A |

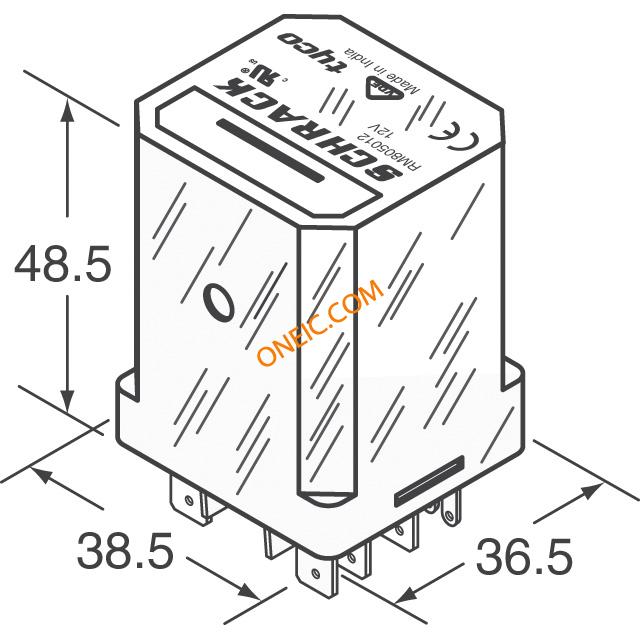

机械参数

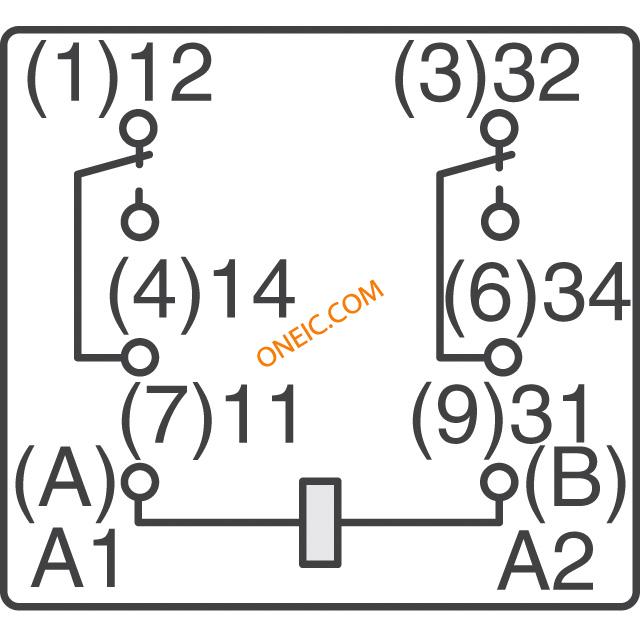

| 宽度 | 38.5 mm | 高度 | 48.5 mm |
| 长度 | 35.5 mm | 重量 | 0.082 |
| 包装方式 | Bulk | 触点形式 | 3 Form C (3PDT-BM) |
| 安装类型 | Socketable | 安装样式 | Quick Connect |
| 触头材料 | Silver Cadmium Oxide | 端接样式 | Quick Connect |
| 接触件端接 | Terminals | 典型触点布局 | :3PDT |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | RM2/3/7 |
| 产品特性 | Mechanical Indicator | 继电器类型 | General Purpose |
环境参数
| 工作温度 | -45°C ~ 50°C | ||
