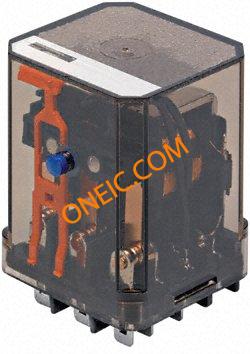

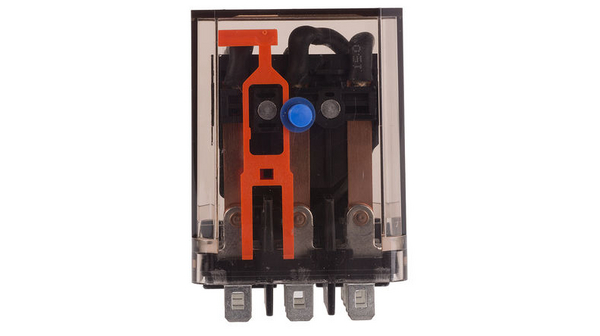

RM732012
| 制造商 | TE Connectivity Ltd. |
| 描述 | RELAY GEN PURPOSE 3PDT 16A 12V Power relay 3c/o 16A 12Vdc w/ Test Industrial Relays (General Purpose) Industrial Relays (General Purpose) Product Highlights:RM2/3/7 SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 16 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWERRELAY3C/O16A12V Power relay 12 VDC 1.7 W, RM732012, TE Connectivity RM732012 |
| 分类 |
商业参数
| 其他名称 | 8-1419082-5 | 标准包装规格 | 25 |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 1.7 W |
| 电感量 | 86 | 线圈电流 | 141.67mA |
| 释放时间 | 10ms | 输入功率 | 1700 |
| 核心电压 | 1500 – 2500 | 测试电压 | 4 |
| 额定电压 | 400 | 线圈电阻 | 86 Ohms |
| 浪涌电流 | 16 | 供电电压 | 12VDC |
| 开关电压 | 440VAC - Max | 开关容量 | 6000 VA |
| Vgs(th)（最大）@ Id | 1.2 VDC | 连接器阻抗 | 3 Form C (CO) |
| 开关电流 | 16 A | 跳闸电流 | 40 |
| 最大额定电流 | 16 | 输出1频率 | 单稳态、直流 |
| 输出浪涌功率 | 6 kVA | 额定电流（安培） | 10 – 20, 16 |
| 绝缘电阻 | 14.9 mm [ .587 in ] | 集电极-发射极饱和电压（最大）@ Vge, Ic | 9 VDC |
| 触点额定电流 | 16A | 输出源/灌电流 | 100mA @ 24V |
| 放电电流（最大）（8/20µs） | 16 | 阳极-阴极电压（Vak）（最大） | 440 |
机械参数
| 尺寸 | 35.5 x 38.5 x 48.5 mm | 深度 | 35.5mm |
| 宽度 | 35.5 mm [ 1.398 in ] | 高度 | 56.2mm |
| 长度 | 38.5mm | 重量 | 81 g [ 2.859 oz ] |
| 包装方式 | Tray | 绝缘类型 | 端子和线圈间 4000 V 初始浪涌耐电压 |
| 触点形式 | 3PDT (3 Form C) | 高度（最大） | 40 – 50 |
| 致动器类型 | DC | 安装类型 | Socketable |
| 端子类型 | Tab | 触头材料 | Silver Cadmium Oxide (AgCdO) |
| 变压器类型 | RM732012 | 绝缘高度 | 8 |
| 端接样式 | Plug In, QC - 0.187" (4.7mm) | 触点数 | 3 change-over (CO) |
| 初级绕组 | UL 线圈绝缘类 B | 介电材料 | 2500 |
| 绝缘直径 | 4 mm [ .157 in ] | 宽度/横截面 | 30 – 40 |
| 典型触点布局 | 3PDT | 第一连接器安装类型 | 插座 |
产品信息
| 系列 | RM 2/3/7 | 产品特性 | Mechanical Indicator, Test Button |
| 继电器类型 | General Purpose | 应用细节 | Power |
环境参数
| 动作时间 | 15ms | 防护等级 | RTI |
| 工作温度 | -45°C ~ 60°C | 初始介电强度 | 1500 |
相关型号
