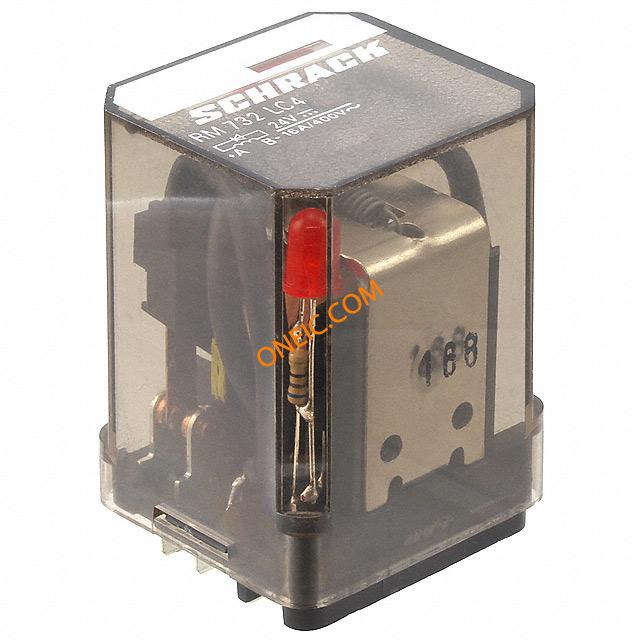

RM732LC4

制造商	TE Connectivity Ltd.
描述	RELAY GEN PURPOSE 3PDT 16A 24V Industrial Relays (General Purpose) Industrial Relays (General Purpose) Product Highlights:RM2/3/7 SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 16 Amps.Monostable Coil Magnetic SystemWith Coil Suppression Diode RM732LC4
分类	工业电源组件和继电器功率继电器，2安培以上自锁继电器

商业参数

其他名称	1393147-6	标准包装规格	25
标准包装数量	25

合规参数

RoHS

Not applicable / RoHS Compliant

电气参数

线圈类型	Non Latching	线圈功率	1.7 W
线圈电流	70.8mA	释放时间	10ms
输入功率	1700	核心电压	1500 – 2500
额定电压	400	线圈电阻	345 Ohms
浪涌电流	16	供电电压	24VDC
开关电压	440VAC - Max	Vgs(th)（最大）@ Id	2.4 VDC
连接器阻抗	3 Form C (CO)	跳闸电流	40
最大额定电流	16	输出1频率	单稳态、直流
额定电流（安培）	10 – 20, 16	绝缘电阻	14.9 mm [ .587 in ]
集电极-发射极饱和电压（最大）@ Vge, Ic	18 VDC	触点额定电流	16A
输出源/灌电流	100mA @ 24V	放电电流（最大）（8/20µs）	16
阳极-阴极电压（Vak）（最大）	440

机械参数

宽度	35.5 mm [ 1.398 in ]	高度	48.5 mm [ 1.909 in ]
长度	38.5 mm [ 1.515 in ]	重量	81 g [ 2.859 oz ]
包装方式	Tray	绝缘类型	端子和线圈间 4000 V 初始浪涌耐电压
触点形式	3PDT (3 Form C)	高度（最大）	40 – 50
致动器类型	DC	安装类型	Socketable
触头材料	Silver Cadmium Oxide (AgCdO)	绝缘高度	8
端接样式	Plug In, QC - 0.187" (4.7mm)	触点数	3
初级绕组	LED, UL 线圈绝缘类 B, 保护二极管, 电气指示灯	介电材料	2500
绝缘直径	4 mm [ .157 in ]	宽度/横截面	30 – 40
第一连接器安装类型	插座

产品信息

产品特性

Diode, LED Indicator, Mechanical Indicator, Test Button

继电器类型

General Purpose

环境参数

动作时间	15ms	防护等级	RTI
工作温度	-45°C ~ 60°C	初始介电强度	1500
