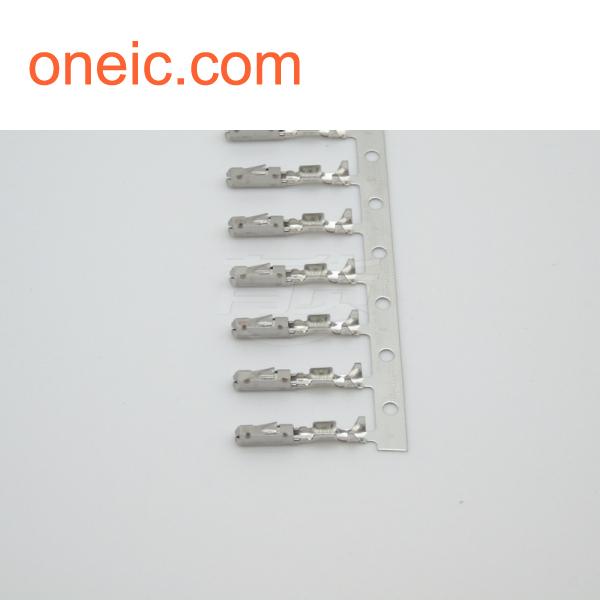

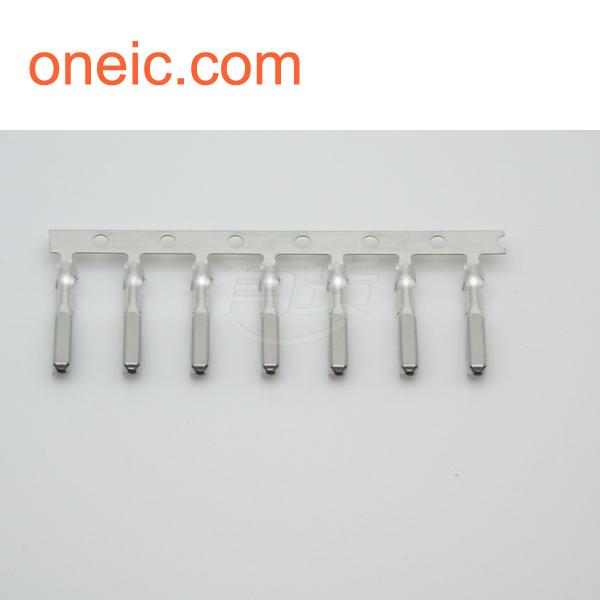

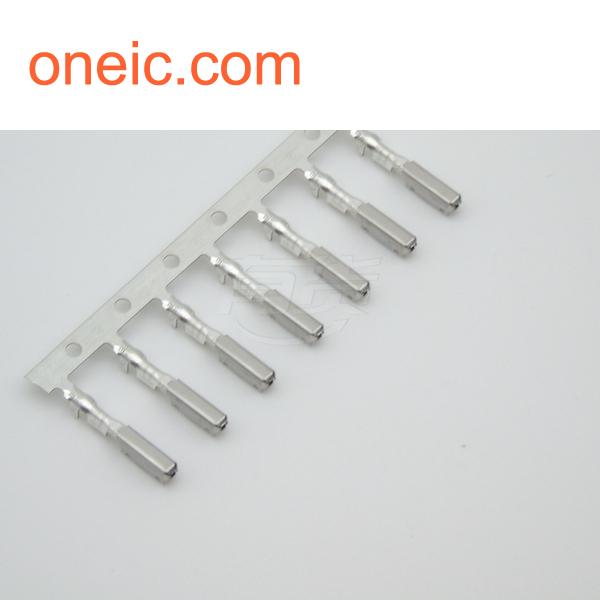

928999-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Micro-Power & Power Quadlok System CONN SOCKET 20-24AWG TIN CRIMP Crimp Contact Female 24-20 awg Automotive Connectors RECPT CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ReceptacleContact Style = NoneSilver Plate Contact FinishWire Range = 0.20-0.60² [24-20] mm [AWG]Not SealedSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, CONTACT, SOCKET, 0.25 TO 0.35MM2, CRIMP CONTACT, CRIMP, PIN, SNAP, REEL CrimpContactFemale24-20awg Contact; female; 0.2÷0.6mm2; tinned; crimped 12-Position Unsealed Micro Quadlok System TE Connectivity Micro Quadlock System 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 产品 | Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 13000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 7.5 A | ||
机械参数
| 间距 | Not Required mm | 长度 | 13.6mm |
| 重量 | 0.001 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 重量（g） | 11.2 | 触头类型 | Power |
| 安装类型 | Crimp | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 安装样式 | Wire | 触头材料 | Copper-Nickel-Silicon |
| 壳体材料 | Not Required | 包装数量 | 1 |
| 连接器 - 电缆 | contact | 第一触头极性 | :Socket |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 线规或范围 - AWG | :24AWG | 线规或范围 - mm² | 0.2...0.6mm2 |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :1.60mm |
产品信息
| SPG | 1 | 名称 | 端子 |
| 类型 | Contact | 单位 | PCS |
| 连接器性别 | SKT | 系列 | :MQS |
| 数量 | 52000.0 | 制造商全称 | MQSSeries |
| 端口数 | 1 Port | 单元数量 | 13000 |
| 制造国家 | 西班牙 | 设备部件号 | 928999-1.pdf |
| 最小起订量 | 1 | 适用产品/相关产品 | :Micro-Power & Power Quadlok System |
环境参数
| 结工作温度 | 120C | ||
