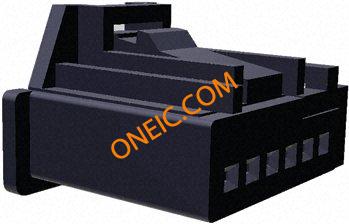

点击放大查看
1355082-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 2.85mm Crimp ST Cable Mount MQS - Connectors MQS BU-GEH,ASSY 6P Housing FH 6 way Rec Quadlock Automotive Connectors MQS BU-GEH,ASSY 6P Conn Housing RCP 6 POS 2.85mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 6Without Tab ContactsWithout 2.5mm Pin Diameter ContactsWithout Fiber Optic ContactsSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, HousingFH6wayRecQuadlock |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 2500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94-HB |
电气参数
| 额定电压 | 12 | 供电电压 | 12 |
| 连接器阻抗 | 否 | ||
机械参数
| 颜色 | 黑色 | 深度 | 19mm |
| 间距 | 2.85 mm | 宽度 | 19 mm [ .748 in ] |
| 高度 | 8.45mm | 长度 | 24.4 mm [ .961 in ] |
| 包装方式 | Bulk | 出线方向 | 否 |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 端子样式 | Yes | 锁定特性 | On the terminal |
| 壳体材料 | PBT | 安装特性 | No |
| 主要材料 | Receptacle | 连接器 - 电缆 | No |
| 连接器颜色 | Black | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
| 法兰上方插针尺寸 | .63 mm [ .025 in ] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 极性 | 是 |
| 可密封 | 否 | 可维修 | Yes |
| 制造商全称 | MQSSeries | 应用细节 | Signal |
环境参数
| 工作温度 | -40 – 80 °C [ -40 – 176 °F ] | ||
