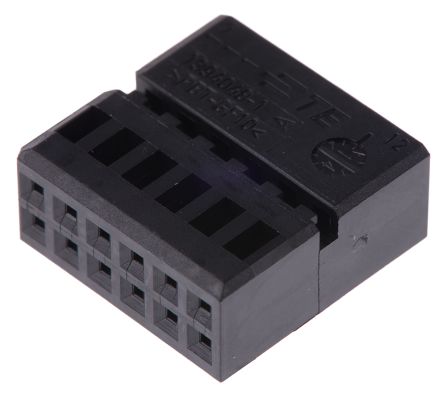

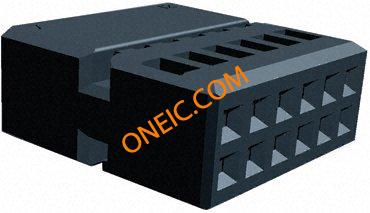

1394048-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS 2.54mm Crimp ST Cable Mount Bulk MQS - Connectors CONN PLUG HSNG 12POS DL .100 Housing FH 12 way Rec Quadlock Automotive Connectors MQS BU-GEH 12P Conn Housing PL 12 POS 2.54mm Crimp ST Cable Mount Bulk Product Highlights:HousingNumber of Positions = 12Without Tab ContactsWithout 2.5mm Pin Diameter ContactsWithout Fiber Optic ContactsSearch Keywords:Wire Termination and Splices, VDA, MPQ, PQ, power, terminal and splices, dead end plug, HousingFH12wayRecQuadlock TE Connectivity Micro Quadlock System 系列 2行 12路 电缆安装 黑色 公 外壳 MQS BU-GEH 12P |
| 分类 |
商业参数
| 产品 | Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94-HB |
电气参数
| 额定电压 | 12 | 供电电压 | 12 |
| 连接器阻抗 | 否 | ||
机械参数
| 颜色 | Black | 深度 | 16mm |
| 间距 | 2.54 mm | 宽度 | 16mm |
| 高度 | 7.8mm | 包装方式 | Bulk |
| 出线方向 | 根据附件添加 | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Receptacle | 排数 | 2 |
| 端子样式 | Yes | 连接器用途 | Z |
| 锁定特性 | On the terminal | 壳体材料 | PBT |
| 安装特性 | Yes | 主要材料 | Receptacle |
| 连接器 - 电缆 | No | 连接器颜色 | Black |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 法兰上方插针尺寸 | .63 mm [ .025 in ] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Micro Quadlok |
| 极性 | 是 | 可密封 | 否 |
| 可维修 | No | 制造商全称 | MQSSeries |
| 其他规格 | VW | 应用细节 | Signal |
环境参数
| 工作温度 | -40 – 120 °C [ -40 – 248 °F ] | ||
