9-212437-2
| 制造商 | |
| 描述 | Conn Shielded Circular DIN M 8 POS ST Cable Mount 8 Terminal 1 Port Circular DIN Connectors C-DIN 08P PLG KIT Shielded Circular DIN Connectors CONN PLUG DIN 8POS SHIELD BLACK Shielded Circular DIN Connectors Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = PinShieldedSearch Keywords:input/output, DIN 41524, DIN 45322, circular industrial, box to box, |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 900 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250VAC | 供电电压 | DIN |
| 最大额定电流 | 7.5A | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 屏蔽类型 | Yes | 端接方式 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Tin | 紧固类型 | Push-Pull |
| 屏蔽材料 | Brass | 壳体材料 | Nylon |
| 第一触头极性 | Socket (Female) | 外径 | 3.81 â 5.08 [0.150 â 0.200], 5.08 â 6.35 [0.200 â 0.250], 6.35 â 7.62 |
| 触点数 | 8 | 位数 | 8 |
| 外壳尺寸-插件 | DIN (270 Degree) | 安装孔直径 | Without |
| 外壳材料及表面处理 | Nylon, Glass Filled | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 备注 | This plug is designed for use in applications where either a separate or post m | 类型 | Shielded Circular DIN |
| 连接器性别 | PL | 产品特性 | Shielded |
| 产品子类型 | Connectors | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
相关型号

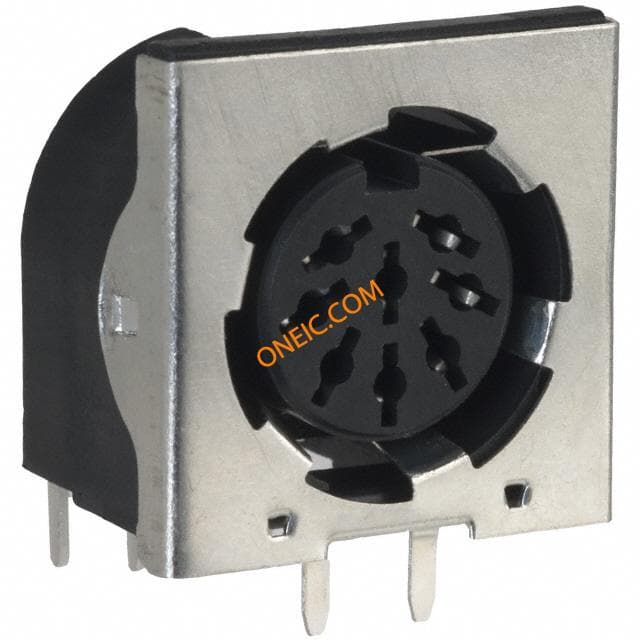

5212047-1
