点击放大查看

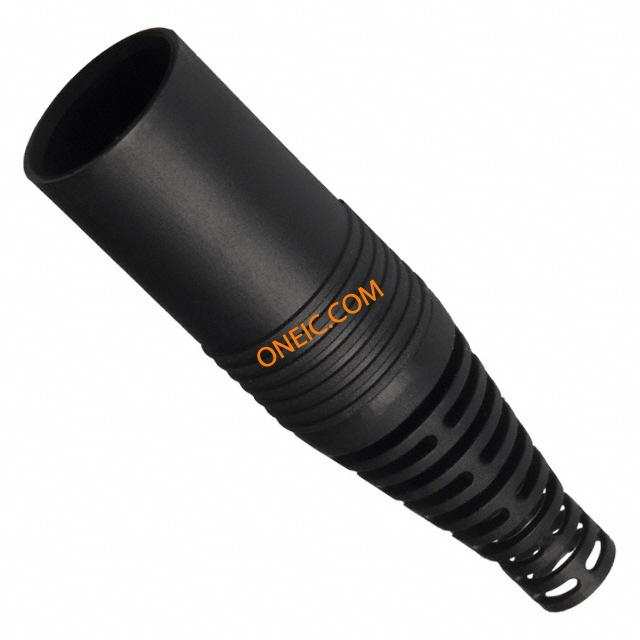

212800-1
| 制造商 | |
| 描述 | Connector Accessories Circular DIN Cord Guard Thermoplastic Polyether Ester Elastomer Circular DIN Connectors C-DIN ACC:CORD GUARD Shielded Circular DIN Connectors CONN CORD GUARD 3.81-6.35MM Connector Accessories Circular DIN Cord Guard Thermoplastic Polyether Ester Elastomer Product Highlights:Cord GuardCable Diameter Range = 3.81 - 6.35 mmSearch Keywords:input/output, DIN 41524, DIN 45322, circular industrial, box to box, CORD GUARD, DIN CONNECTOR |
| 分类 |
商业参数
| 产品类别 | Circular DIN Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 900 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| ESD保护 | 不带 | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28482 | CSA档案号 | LR 3507 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 供电电压 | 250 | ||
机械参数
| 颜色 | Black | 形状 | 圆形 |
| 材料（通用） | Polyether-ester Elastomer | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 绝缘类型 | 是 |
| 安装类型 | 不带 | 电缆直径 | 3.81 â 6.35 [0.150 â 0.250] |
| 连接器类型 | 线到板 | 接触镀层 | Tin |
| 安装样式 | Through Hole | 磁芯材质 | Thermoplastic |
| 绝缘颜色 | Black | 包装数量 | 1 |
| 端接样式 | Plug | 连接器颜色 | 黑色 |
| 绝缘材料 - 类型 | PVC-乙烯基 | 静电放电屏蔽 | 带有 |
产品信息
| 备注 | Complete assembly includes shield/housing, ferrule and contacts. | 类型 | Cord Guard |
| 可密封 | 否 | 产品子类型 | Cord Guard |
| 附件类型 | Cord Guard | 射频系列/标准 | 212800 |
| 适用产品/相关产品 | DIN Plug, Shielded One Piece | ||
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
