点击放大查看

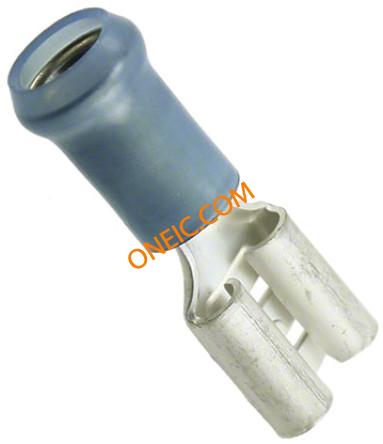

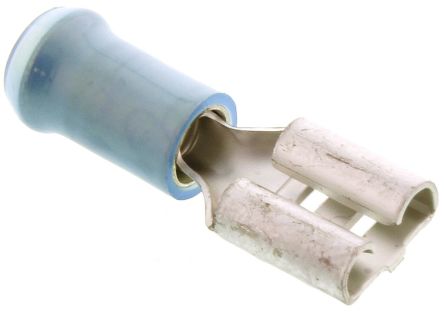

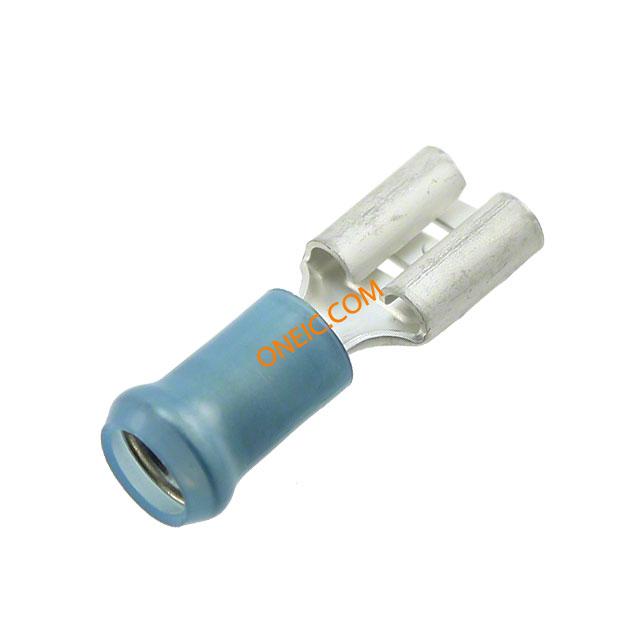

9-160313-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | PIDG Quick Disconnect Terminal 13.5-17AWG RCP 23.7mm 7.6mm Tin Loose Piece Terminals 250 PIDG FASTON REC Quick Disconnect Receptacles - Insulated CONN RCPT FASTON 13-17AWG PIDG Blue plastigrip female receptacle,0.25in PIDG Quick Disconnect Terminal 13.5-17AWG RCP 23.7mm 7.6mm Tin Loose Piece Product Highlights:Proprietary Name = PIDG FASTONReceptacle Style = StraightWire Range = 1.00-2.50² [17-13.5] mm [AWG]Tab Fit = 6.35 x 0.81 mmInsulation Diameter = 4.32 [.170] Max. mm [in]Search Keywords:Terminals and Splices CRIMP TERMINAL, FEMALE, BLUE Terminal: flat; 6.3mm; 0.8mm; female; 1÷2.5mm2; crimped; for cable Blade receptacle blue 6.3 x 0.8 mm, 9-160313-2, TE Connectivity TE Connectivity PIDG FASTON .250 系列 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 250 PIDG FASTON REC |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | 91603132 |
| 产品类别 | Terminals | 标准包装数量 | 1,000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | :300V | 供电电压 | 300 |
机械参数
| 颜色 | Blue | 宽度 | 6.3mm |
| 表面处理 | Tin | 长度 | 23.2 mm |
| 重量 | 0.0128 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.8mm | 绝缘类型 | Insulated |
| 插片长度 | 0.303" (7.70mm) | 导线线规 | 17-13 |
| 方向 | straight | 端接方式 | Crimp |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 7.6 mm x 7.7 mm |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 安装样式 | for cable | 线束直径 | 2.5 mm |
| 连接器样式 | Straight | 插入力 | Normal |
| 触头材料 | Brass | 套圈材料 | insulated |
| 绝缘颜色 | :Blue | 总长度 | 0.913" (23.20mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 连接器颜色 | :Blue |
| 绝缘直径 | 4.32 [.170] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | No | 线规或范围 - AWG | :16AWG |
| 线规或范围 - mm² | 1.00-2.50² [17-13.5] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :4.32mm | ||
产品信息
| SPG | 1 | 连接器性别 | Female |
| 系列 | 250 | 纹理 | Dimple with wire stop |
| 单元数量 | 1 | 专有名称 | PIDG FASTON |
环境参数
| 工作温度 | :105°C | ||
