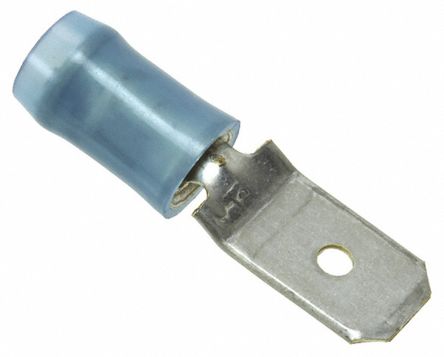

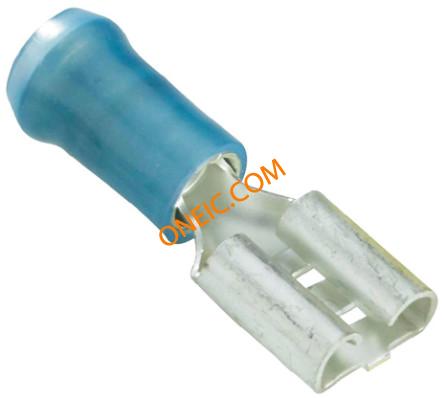

140971-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13.5-17AWG M 23.5mm 6.35mm Tin Loose Piece Terminals FASTON PIDG TAB 250 SER Quick Disconnect Tabs, Tab Adapters & Tab Caps Blue plasti-grip receptacle,1-2.6sq.mm Quick Disconnect Terminal 13.5-17AWG M 23.5mm 6.35mm Tin Loose Piece Product Highlights:TabTab Type = Wire CrimpInsulatedTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, CRIMP TERMINAL, BLADE, 0.25", BLUE CONN QC TAB 13-17AWG 0.250 CRIMP Blueplasti-gripreceptacle,1-2.6sq.mm Terminal: flat; 6.3mm; 0.8mm; male; 1÷2.5mm2; crimped; for cable Blade terminal blue 6.3 x 0.8 mm, 140971-2, TE Connectivity TE Connectivity 蓝色 PIDG FASTON .250 系列 绝缘 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FASTON PIDG TAB 250 SER |
| 分类 |
商业参数
| 产品 | Faston Terminals | 标准包装数量 | 1,000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Blue | 深度 | 6.35 mm |
| 宽度 | 6.3mm | 表面处理 | Tin |
| 重量 | 0.002 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.8mm | 电缆类型 | Regular Wire |
| 绝缘类型 | Yes | 插片长度 | 0.370" (9.40mm) |
| 导线线规 | 17 → 13.5 AWG | 方向 | straight |
| 端接方式 | :Crimp | 基体材料 | Brass |
| 安装类型 | Straight | 螺柱/焊片尺寸 | 6.35 mm x 0.81 mm |
| 插片厚度 | 0.81mm | 端子类型 | Standard |
| 连接器类型 | :Disconnect | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 触头材料 | Brass | 套圈材料 | insulated |
| 绝缘颜色 | :Blue | 总长度 | 23.5mm |
| 包装数量 | Loose Piece | 绝缘高度 | Without |
| 端接样式 | Crimp | 连接器颜色 | :Blue |
| 绝缘直径 | 3.90 [.154] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | :Nylon (Polyamide) | 安装孔直径 | Without |
| 线规或范围 - AWG | :16AWG | 线规或范围 - mm² | 1.00-2.50² [17-13.5] |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :3.9mm |
产品信息
| SPG | 1 | 连接器性别 | Male |
| 系列 | 250 | 产品特性 | Serrated Termination |
| 产品子类型 | Tab | 配置 | Regular |
| 单元数量 | 1 | 其他规格 | Wire Crimp |
环境参数
| 工作温度 | :90°C | ||
文档与媒体
