点击放大查看

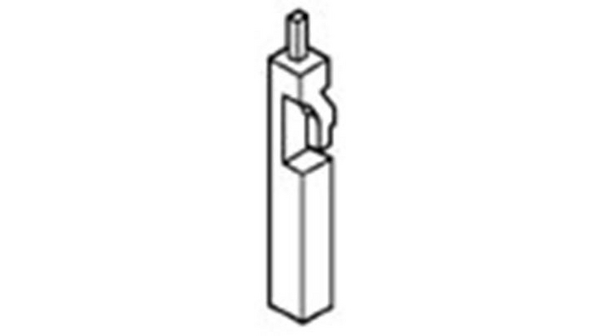

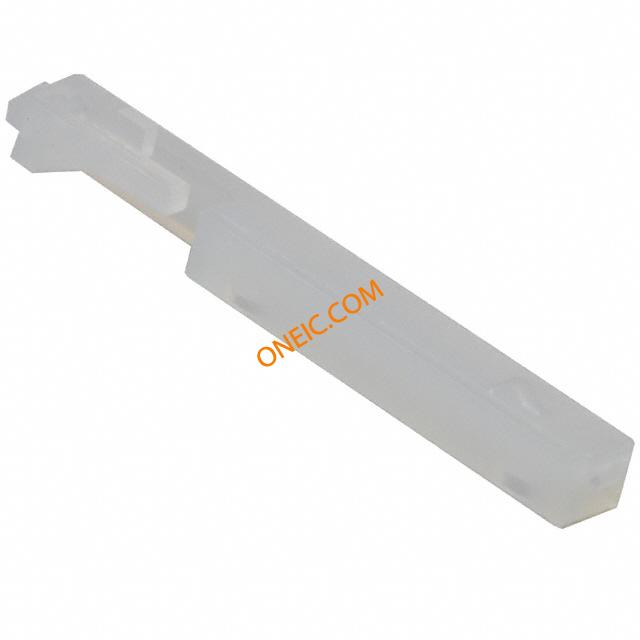

87077-2
| 制造商 | |
| 描述 | Connector Accessories Keying Plug Nylon Natural .100 AMPMODU Headers, Housings & Contacts CONN KEY PLUG .100 .600 HOUSING Polarising pin Headers & Wire Housings KEYING PLUG plugs into housing Connector Accessories Keying Plug Nylon Natural Product Highlights:AccessoryAccessory Type = Keying PlugMod IVSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMP;KEYINGPLUG;PLUGDIRECTLYINTOHOUSING Keying plug 15.5 mm natural, 87077-2, TE Connectivity TE Connectivity Mod IV 系列 公 键控插头 MOD IV KEYING PLUG |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | 天然色 | 深度 | 1.72 mm |
| 宽度 | 1.72mm | 高度 | 2.11mm |
| 长度 | 15.2mm | 材料（通用） | Nylon |
| 包装方式 | 包装 | 插头颜色 | Natural |
| 连接器类型 | Keying Plug | 壳体材料 | Nylon |
| 总长度 | 2.1 mm | 主要材料 | Interconnect |
| 连接器颜色 | Natural | 触点数 | 20 |
产品信息
| 类型 | Key | 连接器性别 | Male |
| 系列 | Mod IV | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Accessory |
| 附件类型 | Keying Plug | 射频系列/标准 | 87077 |
| 适用产品/相关产品 | .600 high housings | ||
