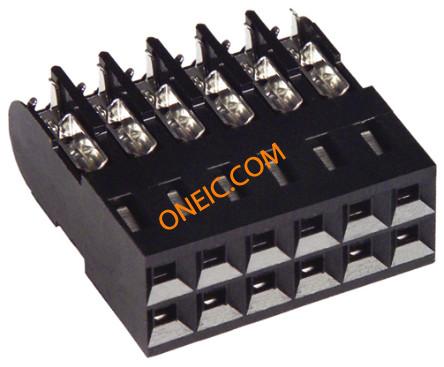

5-102398-4

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 12POS .100 IDC GOLD Connector,MT(IDC),26to22AWG Connector; MT (IDC); 26 to 22 AWG; Insulation Displacement Crimp; Dual; 12 Headers & Wire Housings HSG DUAL 12P 26-22 Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 12Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Connector;MT(IDC);26to22AWG;InsulationDisplacementCrimp;Dual;12 12 AMPMODU MT ASSY DR.100CL SN
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	其他名称	A33391
产品类别	Headers & Wire Housings	标准包装数量	Trays
工厂包装数量	200

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
材料阻燃等级	UL94V-0

电气参数

接触电阻	15 mohm	输入电阻	5000
连接器阻抗	刺破式压接 (IDC)	最大额定电流	3 A
保护额定电压（VPR）	600 V

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	6.1 mm
长度	0.6in	包装方式	Tray
导线类型	Discrete or Ribbon Cable	壳体颜色	黑色
电缆类型	Discrete or Ribbon Cable	导线线规	22-26 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触点形式	Female Socket	触头类型	Female Socket
引脚间距	0.100" (2.54mm)	第二连接器	Without
外壳颜色	Black	安装类型	Free Hanging (In-Line)
行程角度	Straight	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Wire
排数	2	插入件材料	铜合金
操作力	Standard	触头材料	Copper Alloy
壳体材料	Thermoplastic	总长度	15.24 mm
包装数量	200	主要材料	InterconnectSystem
电缆端接方式	IDC	连接器 - 电缆	Yes
插针孔直径	0.1"	端接样式	IDC
第一触头极性	Socket (Female)	触点数	12
绝缘直径	0.05"	位数	12
兼容外壳尺寸（如TM-700等）	公端	安装孔直径	不带
接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	RCP
系列	MT	产品特性	Closed End
主要用途	Closed End	制造商全称	MTSeries
产品子类型	Receptacles / Sockets - Housings	输出配置	Free Hanging (In-Line)
矩阵（列×行）	0.1x0.1
