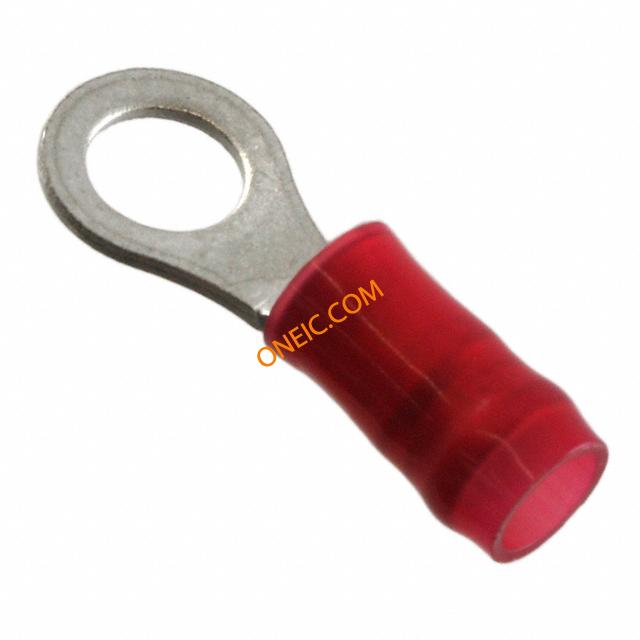

8-36154-1

点击放大查看

8-36154-1

制造商
TE Connectivity Ltd.
描述PIDG Ring Tongue Terminal 16-22AWG 21.44mm 7.92mm Tin Loose Piece Terminals PIDG R 22-16 COMM 22 Ring and Spade Tongue Terminals CONN RING 16-22 AWG #10 PIDG PIDG Ring Tongue Terminal 16-22AWG 21.44mm 7.92mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP, RED SEE512-446836154 PIDG R 22-16 COMM 22-18 MIL 10
分类
连接器解决方案压接与焊接端子/接头片形压接端子
对参数有疑问？问 AI 助手

商业参数

产品Ring Terminals其他名称8361541
产品类别Terminals标准包装数量Bulk
工厂包装数量100

合规参数

RoHSRoHS Compliant标准RoHSCompliant,ELVCompliant
海关税号85369010无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant认证机构标志No

电气参数

电压范围300VAC额定电压300 VAC
供电电压300

机械参数

颜色Red形状RING-041
表面处理Tin重量0.091
材料（通用）Copper包装方式Bulk
厚度0.031" (0.79mm)电缆类型Regular Wire
重型No绝缘类型Insulated
螺钉尺寸10导线线规16-22 AWG
本体表面处理PIDG端接方式Crimp
触点形状Ring Tongue安装类型Free Hanging (In-Line)
螺柱/焊片尺寸4.82 mm端子类型Circular
行程角度Straight连接器类型:Ring Tongue
接触镀层Tin连接器样式Straight
总宽度0.312"触头材料Copper
柄部直径0.197in.绝缘颜色:Red
总长度0.844" (21.44mm)刀片材料Copper
包装数量Loose Piece主要材料Ring
绝缘高度Insulation Support材料厚度0.031in.
绝缘直径3.56 [.140] Max.绝缘材料 - 类型Nylon
外缘宽度0.312" (7.92mm)绝缘材料 - 材质Polyamide (PA), Nylon
舌片内部开口0.79 [0.031]供应商器件封装PIDG
线规或范围 - AWG509 – 3,260线规或范围 - mm²0.30-1.40² [22-16]

产品信息

类型PIDG Ring Tongue Terminal连接器性别Female
系列361产品特性Serrated Termination
制造商全称AMP
