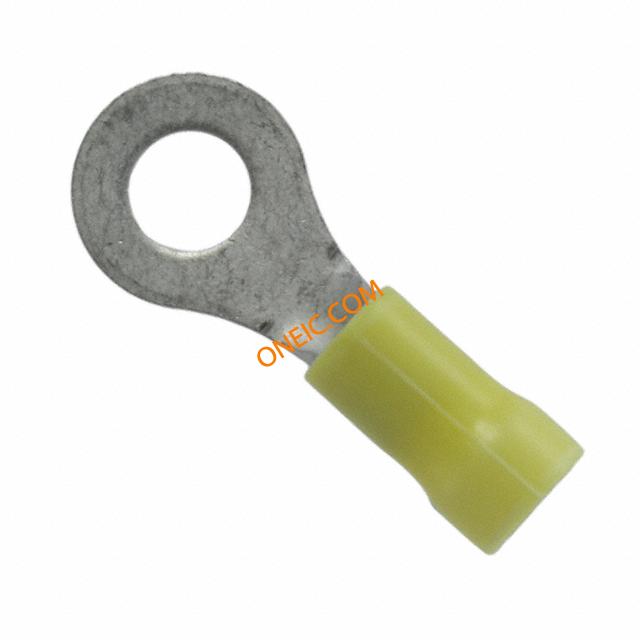

8-34855-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 33.71mm 13.49mm Tin Loose Piece Terminals PVC-RING 12-10 YEL #1/4 M6+ Ring and Spade Tongue Terminals TERMINAL PG RING 12-10 1/4 Ring Tongue Terminal 10-12AWG 33.71mm 13.49mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE 1/4IN CRIMP YELLOW SEE512-443634855 TERMINAL,PG R 12-10 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 8348552 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 额定电压 | 600 VAC | 供电电压 | 600 |
机械参数
| 颜色 | Yellow | 深度 | 13.49 mm |
| 形状 | RING-043 | 表面处理 | Tin |
| 重量 | 0.122 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.039" (0.99mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6.35 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Copper | 绝缘颜色 | :Yellow |
| 总长度 | 1.327" (33.71mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Insulation Support | 绝缘直径 | 6.35 [.250] Max. |
| 绝缘材料 - 类型 | Vinyl | 外缘宽度 | 0.531" (13.49mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 舌片内部开口 | 1.07 [0.042] |
| 供应商器件封装 | PLASTI-GRIP | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 348 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
