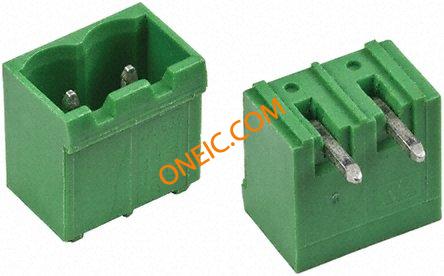

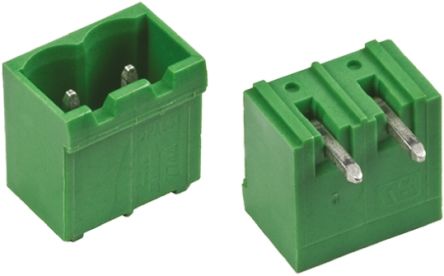

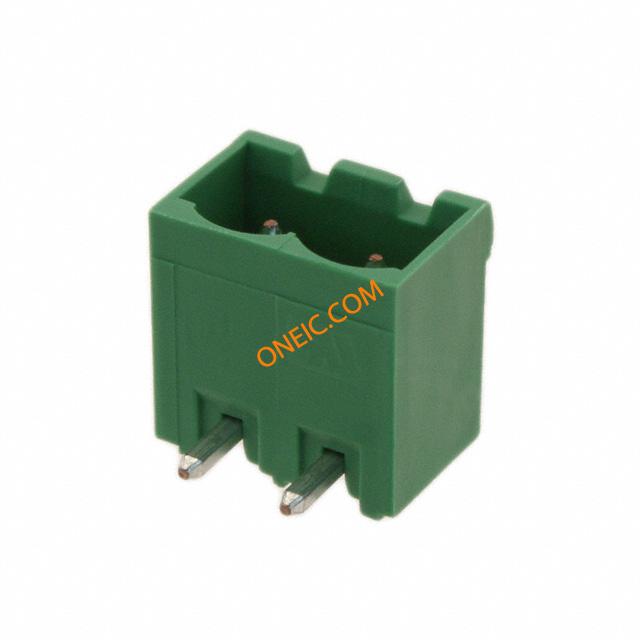

796638-2
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5.08MM TE Connectivity Eurostyle Series 5.08mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 15A Pluggable Terminal Blocks 5.08MM RA HDR 2P Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end HEADER, 5.08MM, 2WAY TERMI-BLOCKHEADER2WAY Pluggable terminal block; socket; male; angled 90°; 5.08mm; 15A TE Connectivity Buchanan 系列 5.08mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 15A , 通孔 2POS 5.08MM CE R/A HDR,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 量程（°/s） | :- | 额定电压 | 300 V ac |
| 极数 | 2 | 最大额定电流 | 15A |
机械参数
| 颜色 | Green | 深度 | 12mm |
| 间距 | 5.08 mm | 高度 | 8.35mm |
| 长度 | 11.98mm | 重量 | 0.00091 |
| 包装方式 | Bulk | 引脚样式 | Right Angle |
| 方向 | angled 90° | 端接方式 | Solder |
| 柱间距 | 5.08mm | 基体材料 | polyamide |
| 安装类型 | Through Hole | 连接器类型 | male |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 300 | 尺寸/外形 | see |
| 连接器 - 电缆 | socket | 连接器颜色 | green |
| 排针方向 | 90°, Right Angle | 触点数 | 2 |
| 接触件端接 | :PCB | 位数 | 2 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| SPG | 300 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | Eurostyle |
| 单元数量 | 1 | 层数 | 1 |
| 每层位数 | 2 | ||
环境参数
| 工作温度 | -40...105°C | ||
