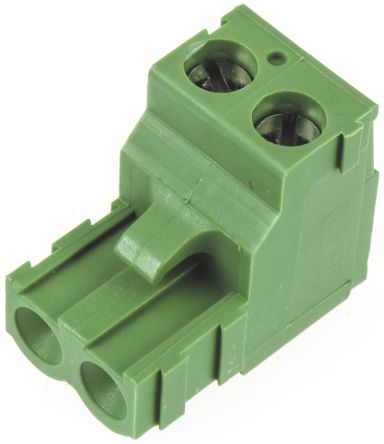

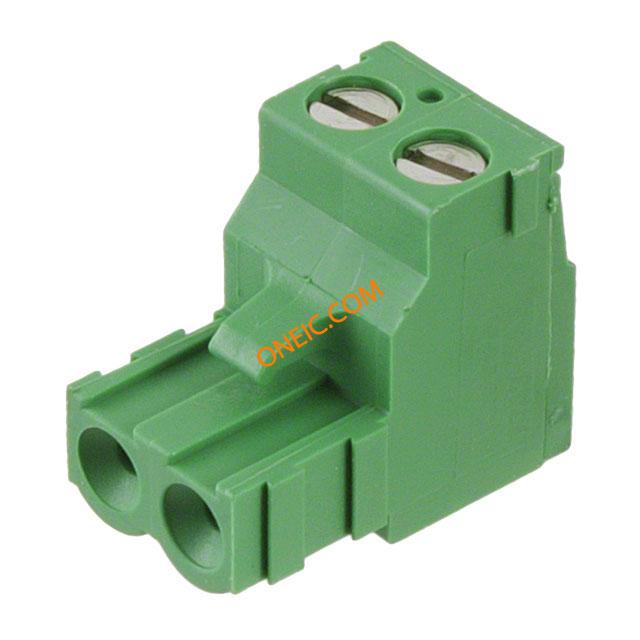

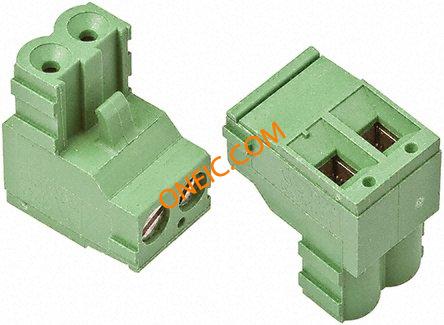

282807-2

点击放大查看

282807-2

制造商
TE Connectivity Ltd.
描述
Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 15A/Contact Terminal Block Connectors TERM BLOCK PLUG 2POS STR 5.08MM Termi-Block Plug 2 way 15-13AWG Pluggable Terminal Blocks TermBlok 2POS RA GRN Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK,PLUG, 5.08 MM, 2WAY Termi-BlockPlug2way15-13AWG Pluggable terminal block; plug; female; 5.08mm; ways:2; 15A; green TE Connectivity Buchanan 系列 5.08mm 节距 2 路 母 绿色 直角 插头, 电缆安装, 螺钉拧紧端接 TERMI-BLOK PLUG STACKING 2P.5,
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Pluggable Terminal Blocks标准包装数量Bulk
工厂包装数量300

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

电流15A电压300V
量程（°/s）:-额定电压300 V ac
极数2Poles供电电压300
最大额定电流15A连接器类型 - 电压输入assembling possibility

机械参数

颜色Green深度15.5mm
间距5.08 mm宽度18.4mm
高度15.5mm长度10.16mm
重量0.02材料（通用）Nylon
包装方式Bulk遮蔽类型No
引脚样式Side螺钉尺寸M3
导线线规13-30 AWG端接方式Screw
柱间距5.08mm基体材料polyamide
外壳颜色Green安装类型Cable Mount
连接器类型Plug接触镀层Tin
法兰特征Without安装样式for cable
排数1螺丝材料Brass
插头进线方向180°触头材料Phosphor Bronze
壳体材料Polyamide 6.6包装数量300
主要材料PCB尺寸/外形see
连接器 - 电缆plug插针孔直径5.08mm
连接器间距Side端接样式Through Hole
连接器颜色Green触点数2
位数2接线端子类型Plug, Female Sockets
进线位置Side中心触点材料5.08 [0.200]
螺钉材料 - 镀层Nickel线规或范围 - mm²0.03 – 2.50

产品信息

SPG300类型Terminal Block
级别SingleLevel连接器性别F
系列Eurostyle产品特性Retention Latches (Non-Wire Side), Side Stacking (Interlocking)
制造商全称Buchanan产品子类型Connector
侧面可堆叠Yes单元数量1
层数1互连系统With
每层位数2

环境参数

工作温度-40...105°C

文档与媒体

PDF 文档
1650926.pdf
在线文档
282807-2?RQPN=282807-2
