点击放大查看

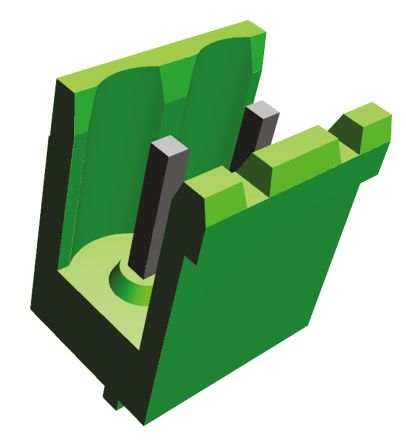

282825-2
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 2POS VERT 5.08MM Pluggable Terminal Blocks HDR 2P VERT 5.08MM Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5.08mm 节距 2 路 公 绿色 直 PCB 管座, 面板安装, 焊接端接 TERMI-BLOK HEADER,ASSY90 2P.5, |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 额定交流电压 | 300 |
| 跳闸电流 | 15 | 最大额定电流 | 15 A |
| 最小供电电压 | 300VAC | ||
机械参数
| 颜色 | Green | 深度 | 8.35 mm |
| 间距 | 5.08 mm | 宽度 | 8.35mm |
| 高度 | 12 mm | 长度 | 10.16mm |
| 材料（通用） | 聚酰胺 | 端部样式 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 绿色 |
| 方向 | 直 | 端接方式 | Solder |
| 引脚长度（针脚） | 3.5 mm [ .138 in ] | 第二连接器 | 否 |
| 外壳颜色 | Green | 安装类型 | Through Hole |
| 连接器类型 | 公插 | 接触镀层 | Tin |
| 法兰特征 | 是 | 安装样式 | Through Hole |
| 排数 | 1 | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 10.16 mm | 包装数量 | 300 |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 排针方向 | Vertical | 触点数 | 2 |
| 位数 | 2 | 接线端子类型 | Header, Male Pins, Shrouded (2 Side) |
| 螺纹/螺钉/孔尺寸 | 不带 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | Buchanan | 层数 | 1 |
| 互连系统 | 不带 | 每层位数 | 2 |
| 并排堆叠 | 是 | ||
文档与媒体
相关型号
284041-2
te connectivity / amp
Conn Terminal Block F 2 POS 5.08mm ST Thru-Hole 15A/Contact Pluggable Terminal Blocks PLUG 2P VERT 5.08mm Terminal Block Connectors TERM BLOCK PLUG 2POS 5.08MM Conn Terminal Block F 2 POS 5.08mm ST Thru-Hole 15A/Contact Product Highlights:ConnectorConnector Type = Plug (left-hand)Housing Color = GreenSide StackableWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK VERTICAL PLUG S

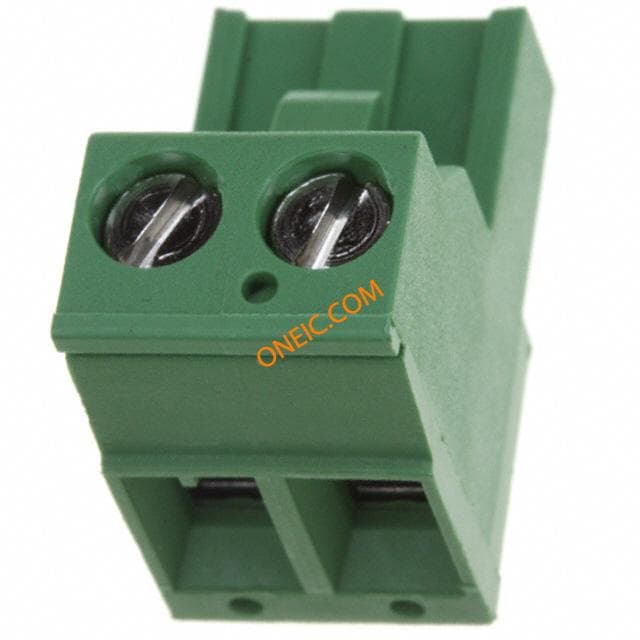

796634-2
te connectivity / amp
Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 2POS STR 5.08MM Non-Fused Terminal Block Cable Mount 2 Way, Screw Down, 300V ac Pluggable Terminal Blocks 5.08MM RA PLUG 2P Conn Terminal Block F 2 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorHousing Color = GreenNot StackedWithout Threaded FlangeWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK PLUGGABLE, 2POS, 30-12AWG Conn;TermBlk;Plug;2;5.08mm;SideWireEntry;30-12;Green; Pluggable terminal block; plug; female; straight; 0.03÷2.5mm2 TE Connectivity 2 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 300 V 交流 2 POS 5.08MM R/A PLUG,TRM BLK
284047-2
te connectivity / amp
Conn Terminal Block F 2 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks 2P 12-30 AWG TIN Terminal Block Connectors TERM BLOCK PLUG 2POS 5.08MM Conn Terminal Block F 2 POS 5.08mm Screw ST Cable Mount 15A/Contact Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK VERTICAL PLUG STACK
1-1986160-2
te connectivity / amp
CRIMP STYLE HOUSING, 5.08, GRA Pluggable Terminal Blocks Crimp Style housing 5.08 Gray 2 posn TERM BLOCK PLUG 2POS STR 5.08MM Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount
1986160-2
te connectivity / amp
CRIMP STYLE HOUSING, 5.08, GRE Pluggable Terminal Blocks Crimp Style housing 5.08 Gre Eurostyle Terminal Blocks TERM BLOCK PLUG 2POS STR 5.08MM Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Conn Housing PL 2 POS 5.08mm Crimp ST Cable Mount Product Highlights:ConnectorType of Connector = PlugShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUGGABLE, 2POS Crimp Style housing, 5.08, Green, 2 posn

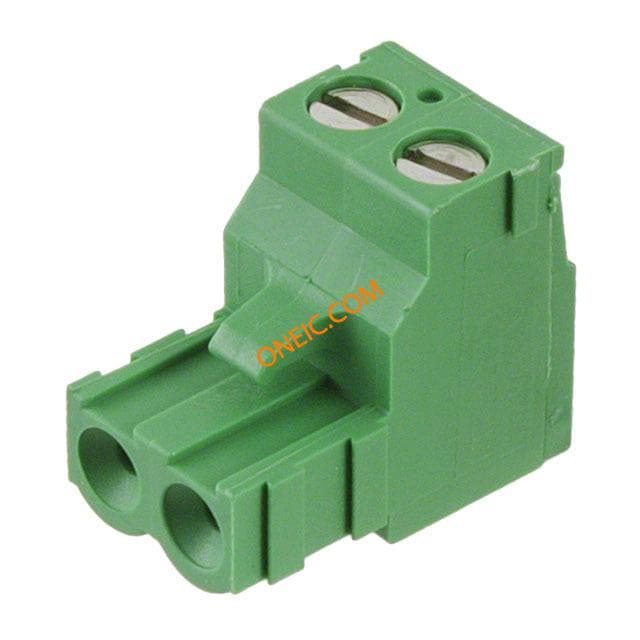

282807-2
