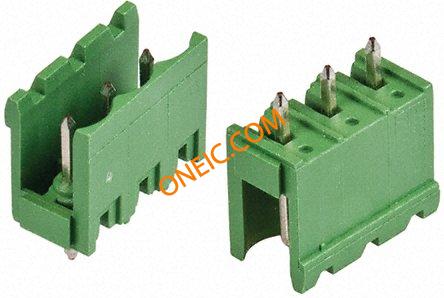

点击放大查看
282824-2
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 2POS VERT 5.08MM Termi-Block Header 2 way pcb straight Pluggable Terminal Blocks HDR 2POS VERT GRN Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK,HEADER, 5.08 MM, 2WAY Pluggable terminal block; socket; male; without side walls; 12A TE Connectivity Buchanan 系列 5.08mm节距 2路 (1排) 直 印刷电路板接线端子块, 焊接端接, 15A , 通孔 TERMI-BLOK HEADER,ASSY90 2P.5 |
| 分类 |
商业参数
| 产品 | Headers | 标准包装数量 | Bulk |
| 工厂包装数量 | 300 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 量程（°/s） | :- | 额定电压 | 300 V ac |
| 极数 | 2 | 最大额定电流 | 15A |
| 连接器类型 - 电压输入 | assembling possibility | ||
机械参数
| 颜色 | Green | 间距 | 5.08 mm |
| 高度 | 12mm | 长度 | 10.16mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 方向 | straight | 端接方式 | Solder |
| 柱间距 | 5.08mm | 基体材料 | polyamide |
| 安装类型 | Through Hole | 连接器类型 | male |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 300 | 尺寸/外形 | see |
| 连接器 - 电缆 | socket | 端接样式 | Through Hole |
| 连接器颜色 | green | 排针方向 | Vertical |
| 触点数 | 2 | 位数 | 2 |
| 接线端子类型 | Header, Male Pins, Shrouded (2 Side) | ||
产品信息
| SPG | 300 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | Eurostyle |
| 产品特性 | Side Stacking (Interlocking) | 单元数量 | 1 |
| 层数 | 1 | 每层位数 | 2 |
环境参数
| 工作温度 | -40...110°C | ||
