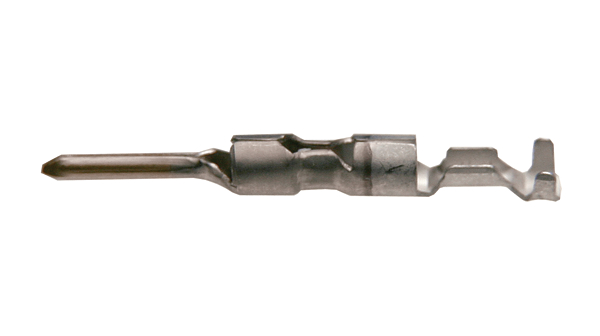

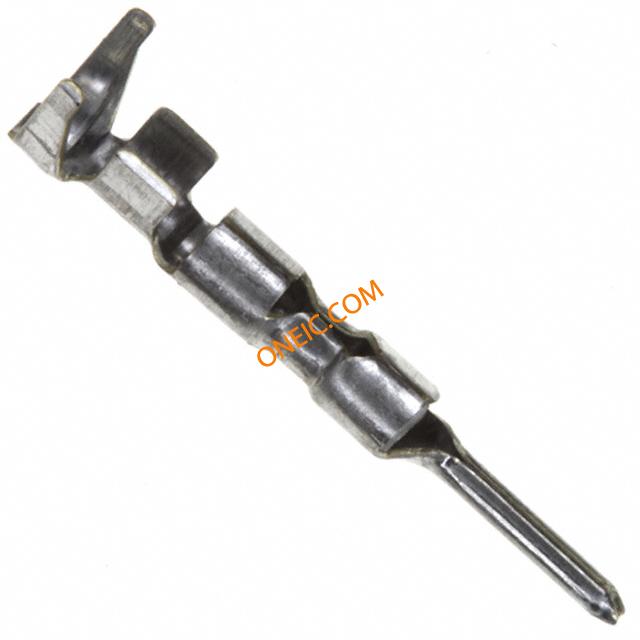

794228-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG TIN CRIMP Contact,crimp,pin,mini Matenlok,22-18awg Pin & Socket Connectors PIN CONTACT 22-18AWG Tin Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2PinLoose PieceWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP PIN, 0.3-0.8MM CONTACT, PIN, 22-18AWG, CRIMP MINIUMNL2LP,MINIUMNL2PIN22-18AWGSNLP Crimp pin 9.5 A Male 22...18 AWG, 794228-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 公 压接触点, 压接, 镀锡触点 MINI UMNL2 PIN 22-18 AWG SN LP |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 接触电阻 | 20mΩ |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VDC/600VAC |
机械参数
| 深度 | 3.81 mm | 间距 | Not Required mm |
| 高度 | 4.42 mm | 重量 | 0.013 |
| 包装方式 | Bulk | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Snap In |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 20.2 mm | 端接样式 | Quick Connect |
| 第一触头极性 | Pin (Male) | 触点数 | 1 |
| 接触件端接 | Crimp | 线规或范围 - AWG | 22-18 |
| 线规或范围 - mm² | :0.8mm² | 外径-未扩张 | :2.39mm |
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | Mate-N-Lok II | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :Mini-Universal MATE-N-LOK 2 Connectors |
