点击放大查看

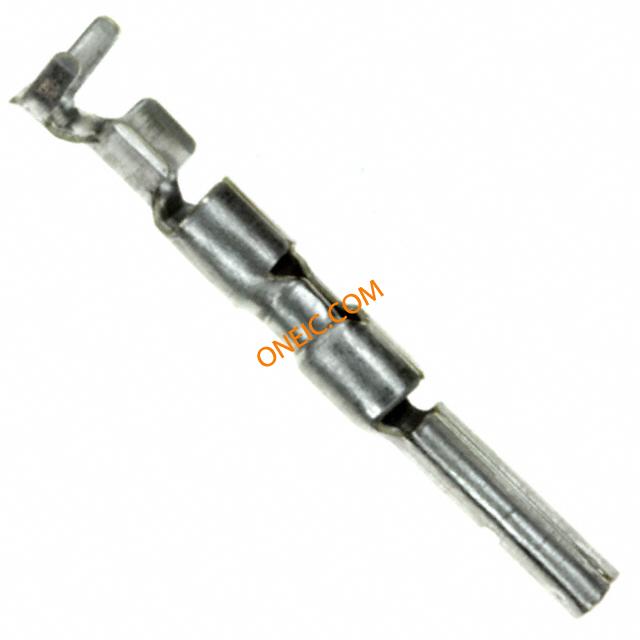

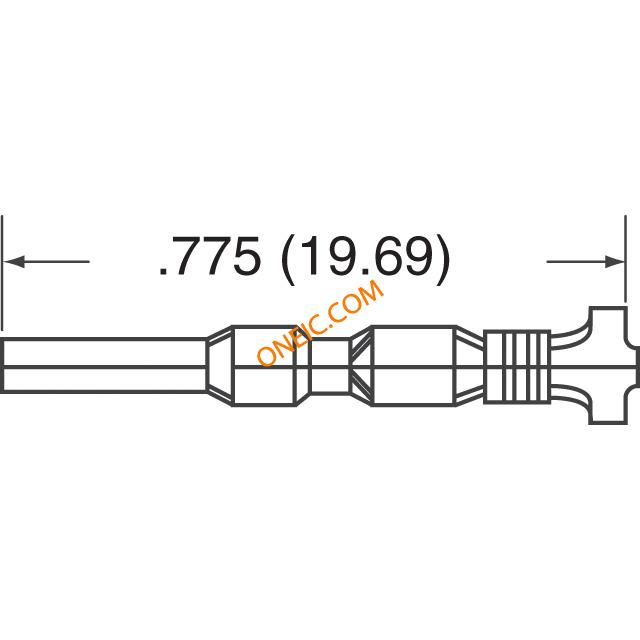

794227-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG TIN CRIMP Contact,crimp,rec,mini Matenlok,26-22awg Pin & Socket Connectors MINI UMNL2 SOK 26-22 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOK 2SocketLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Contact,Socket,Mini-Universal-MATE-N-LOK2,26-22AWG TE Connectivity Mini-Universal MATE-N-LOK II 系列 母 压接接线端子, 压接, 镀锡触点 MINI UMNL2 SOK 26-22 AWG SN LP |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | 标准编号 | CSA, UL |
| UL阻燃等级 | UL 94V-0, UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 接触电阻 | 20mΩ | 最大额定电流 | 9.5 A |
机械参数
| 镀层 | 预镀锡 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 插针或插孔 | Socket | 电缆直径 | 0.4mm² |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 包装数量 | 1000 | 端接排数 | 压接 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 适用端子尺寸 | No | 接触件端接 | Crimp |
| 绝缘直径 | 1.19 – 1.75 mm [ .047 – .069 in ] | 兼容外壳尺寸（如TM-700等） | 插头护套 |
| 接触件表面处理 - 配合 | 预镀锡 | 法兰上方插针尺寸 | 1 mm [ .039 in ] |
| 线规或范围 - AWG | 26-22 | ||
产品信息
| 备注 | 这些端子仅可用于小型通用 MATE-N-LOK 2 插头或帽护套。 | 连接器性别 | SKT |
| 系列 | Mate-N-Lok II | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contacts | 应用细节 | Power |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号

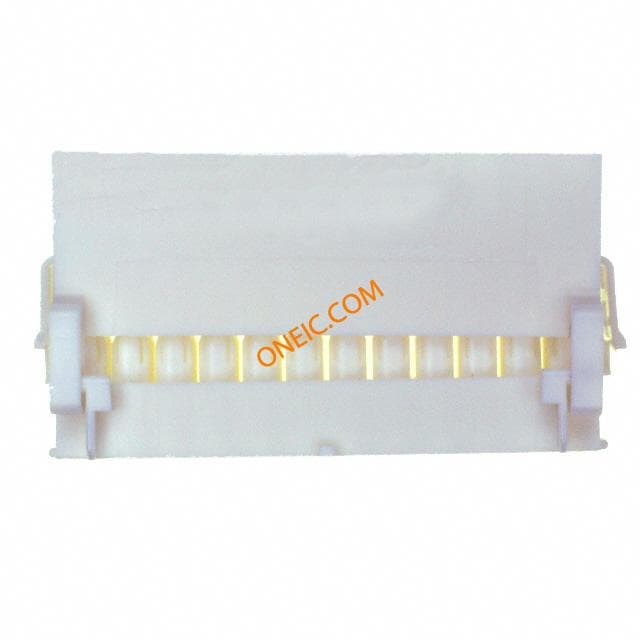

794215-1
te connectivity / amp
Conn Housing RCP 24 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 24POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 24 POS Conn Housing RCP 24 POS 4.14mm Crimp ST Individual Product Highlights:HousingHousing Type = Receptacle (Cap)Mini-Universal MATE-N-LOK 24.14 mm CenterlineDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 24P MINI UMNL2 CAP HSG UL94V0

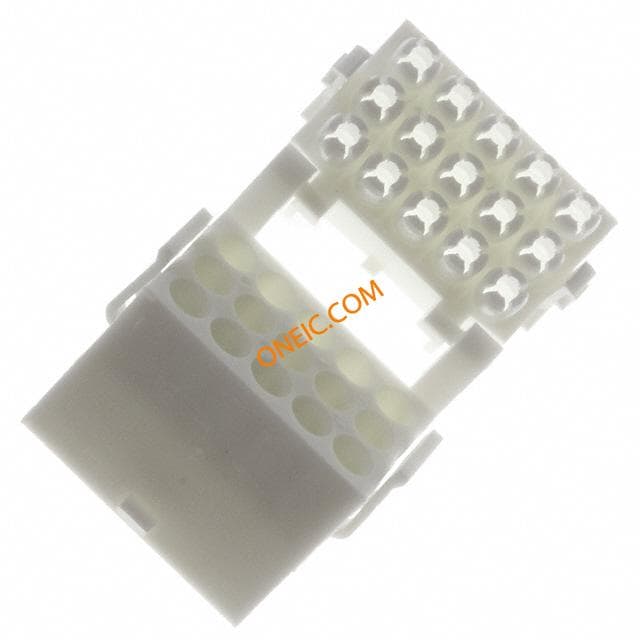

794205-1
te connectivity / amp
Conn Housing RCP 15 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 15POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 15 POS Conn Housing RCP 15 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 154.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 3 x 5 MATE-N-LOK II Mini Universal, 794205-1, TE Connectivity 15P MINI UMNL2 CAP HSG UL94V0

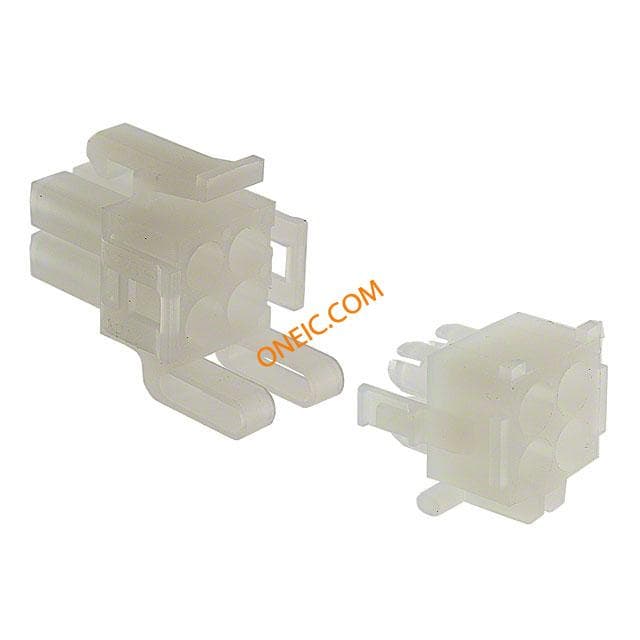

794241-1
te connectivity / amp
Conn Housing PL 4 POS 4.14mm Crimp ST .163" Centerline, 600 V, 9.5 A max. CONN HOUS PLUG MATE-N-LOK 4CIRC Power to the Board 04P MINI PLUG UL94V2 Conn Housing PL 4 POS 4.14mm Crimp ST Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 04P MINI UMNL2 PLUG HSG UL94V2

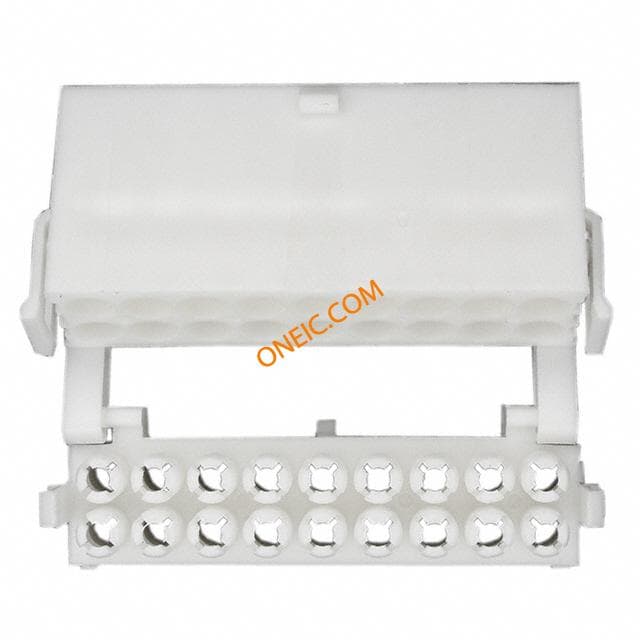

794209-1
te connectivity / amp
Conn Housing RCP 18 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 18POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 18 POS Conn Housing RCP 18 POS 4.14mm Crimp ST Individual Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 2 x 9 MATE-N-LOK II Mini Universal, 794209-1, TE Connectivity 18P MINI UMNL2 CAP HSG UL94V0

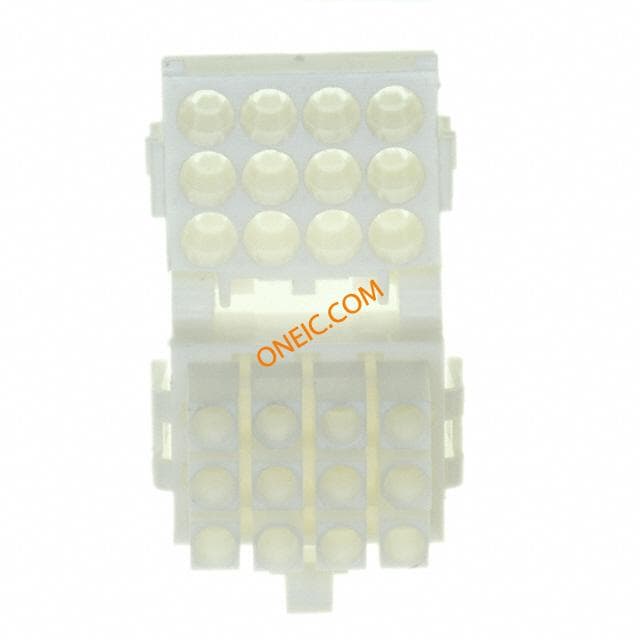

794200-1
te connectivity / amp
Conn Housing PL 12 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 12POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,matrix,12Wy Pin & Socket Connectors CONN PLUG 12 POS Conn Housing PL 12 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 124.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Housing,plug,miniMate-n-lok,matrix,12Wy TE Connectivity Mini-Universal MATE-N-LOK II 系列 3 行 4.14mm 节距 12 路 直 公 压接连接器外壳 12P MINI UMNL2 PLUG HSG MATRIX
794239-1
te connectivity / amp
Conn Housing PL 3 POS 4.14mm Crimp ST Cable Mount .163" Centerline, 600 V, 9.5 A max. CONN PLUG HOUSING 3POS IN-LING Pin & Socket Connectors 03P MINI UMNL2 PLUG HSG UL94V2 03P MINI UMNL2 PLUG HSG UL94V2 03P MINI UMNL2 PLUG HSG UL94V2 Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVERSALMATE-N-LOK03PMINIUMNL2PLUGHSGUL94V2
90758-1
te connectivity / amp
Assembly Tools, PRO Crimper II Hand Tool Crimpers TOOL ASSY W/DIE SET MINI UNIV MNL PROCRIMPER III W/DIE 22-26 AWG Service crimp tool,26-22 awg HAND TOOL, MATE-N-LOK, 26-22AWG Crimper;Ratchet;26-22AWG;MiniUniversalMate-N-Lok;90758-2Die;PRO-CRIMPERIII Crimping tool, 90758-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 Mini-Universal MATE-N-LOK Contacts 压接工具 , 适用于26 → 22 AWG 线规格 PROCRIMP TL W/DIE MIN UNIV MNL
90758-2
te connectivity / amp
Connector Accessories Compatible Pin Die Set Punches & Dies PROCRIMP DIE MINI UMNL DIE SET FOR PRO-C III 26-22 AWG Die set,Mini Matenlock,26-22awg DIE, MINI U/MNL, MINI CPC MINIMATENLOCK26-22DIE Crimp die set 26...22 AWG, 90758-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 26 → 22 AWG 线规格, Mini-Universal MATE-N-LOK Contacts PROCRIMP DIE MINI UNIV MNL
794211-1
te connectivity / amp
Conn Housing RCP 20 POS 4.14mm Crimp ST Individual Pin & Socket Connectors CONN CAP 20 POS .163" Centerline, 600 V, 9.5 A max. CONN CAP 20POS MINI UNIV-MATE 2 Conn Housing RCP 20 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Crimp housing Pitch4.14 mm Poles 2 x 10 MATE-N-LOK II Mini Universal, 794211-1, TE Connectivity 20P MINI UMNL2 CAP HSG UL94V0
91529-1
te connectivity / amp
Assembly Tools, Certi Crimp II Tool Crimpers CERTICRIMP 2 SAHT MINI UMNL TOOL AHT 22-26 AWG MINI UMNL Mate-N-Lok crimp tool,26-22awg CRIMP TOOL, FOR UNI MATE-N-LOCK Crimper;SAHTRatchet;26-22AWG;MiniCPC,UniversalMiniMATE-N-LOK;CERTI-CRIMPII CERTI-CRIMP II Straight Action Hand Tool Crimping tool, 91529-1, TE Connectivity TE Connectivity CERTI-CRIMP II 系列 Mini-Universal MATE-N-LOK Contacts 压接工具 , 适用于26 → 22 AWG 线规格 CERTICRIMP 2,SAHT MINI UMNL

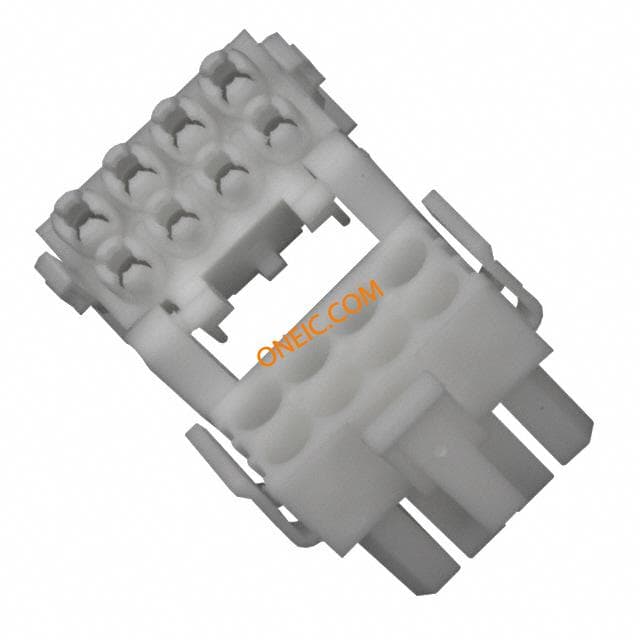

794192-1
te connectivity / amp
Conn Housing PL 8 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 8POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,2 row,8 Way Pin & Socket Connectors 08P MINI UMNL2 PLUG Conn Housing PL 8 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 84.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Seri MINIUMNL2HOUSINGS,08PMINIUMNL2PLUGHSGUL94V0 TE Connectivity Mini-Universal MATE-N-LOK II 系列 2 行 4.14mm 节距 8 路 直 公 压接连接器外壳 08P MINI UMNL2 PLUG HSG UL94V0
794186-1
te connectivity / amp
Conn Housing PL 3 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,1 row,3 Way Pin & Socket Connectors 3P MINI PLUG HSG Conn Housing PL 3 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON HOUSING,PLUG,MINI-UNIVERSALMATE-N-LOK2,3POSITION,FREEHANGING,IN-LINE Crimp housing Pitch4.14 mm Poles 1 x 3 MATE-N-LOK II Mini Universal, 794186-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 3 路 直 公 压接连接器外壳 03P MINI UMNL2 PLUG HSG UL94V0

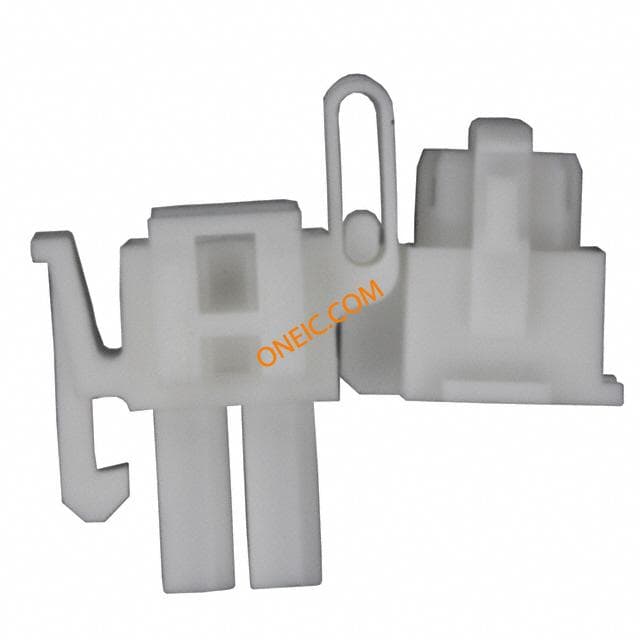

794184-1
te connectivity / amp
Conn Housing PL 2 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 2POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,1 row,2 Way Pin & Socket Connectors CONN PLUG 2 POS Conn Housing PL 2 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING IN-LINE, 2WAY HOUSING,PLUG,MINI-UNIVERSALMATE-N-LOK2,2POSITION,FREEHANGING,IN-LINE Crimp housing Pitch4.14 mm Poles 1 x 2 MATE-N-LOK II Mini Universal, 794184-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 2 路 直 公 压接连接器外壳 02P MINI UMNL2 PLUG HSG UL94V0

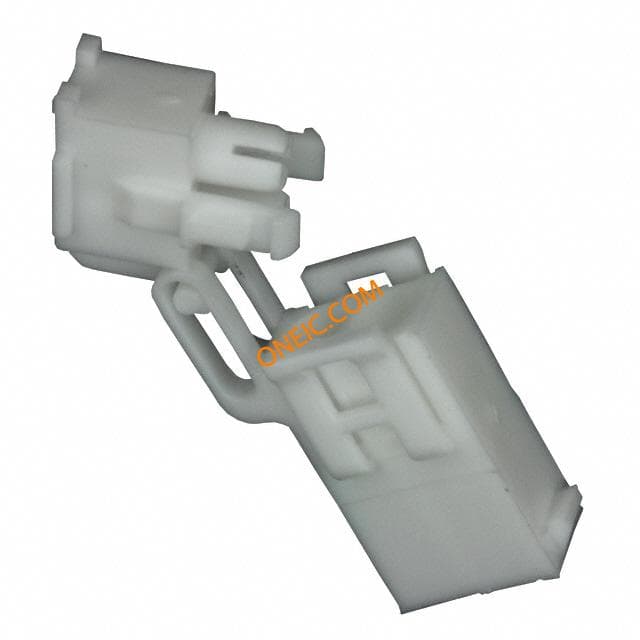

794185-1
te connectivity / amp
Conn Housing RCP 2 POS 4.14mm Crimp ST Individual CONN CAP 2POS MINI UNIV-MATE 2 Housing,cap,mini Mate-n-lok,1 row,2 Way Pin & Socket Connectors CONN CAP 2 POS Conn Housing RCP 2 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING Housing,cap,miniMate-n-lok,1row,2Way Crimp housing Pitch4.14 mm Poles 1 x 2 MATE-N-LOK II Mini Universal, 794185-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 4.14mm 节距 2 路 直 母 压接连接器外壳 02P MINI UMNL2 CAP HSG UL94V0

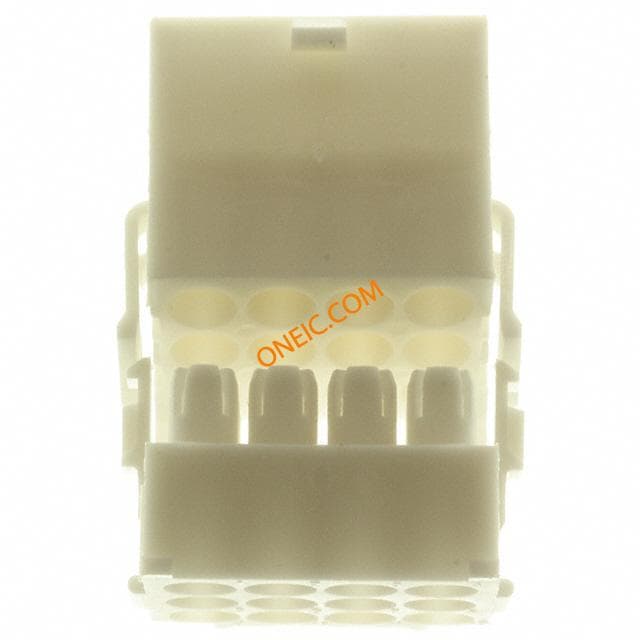

794201-1
te connectivity / amp
Conn Housing RCP 12 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 12POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 12 POS 794201-1 Conn Housing RCP 12 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 124.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 3 x 4 MATE-N-LOK II Mini Universal, 794201-1, TE Connectivity 12P MINI UMNL2 CAP HSG MATRIX

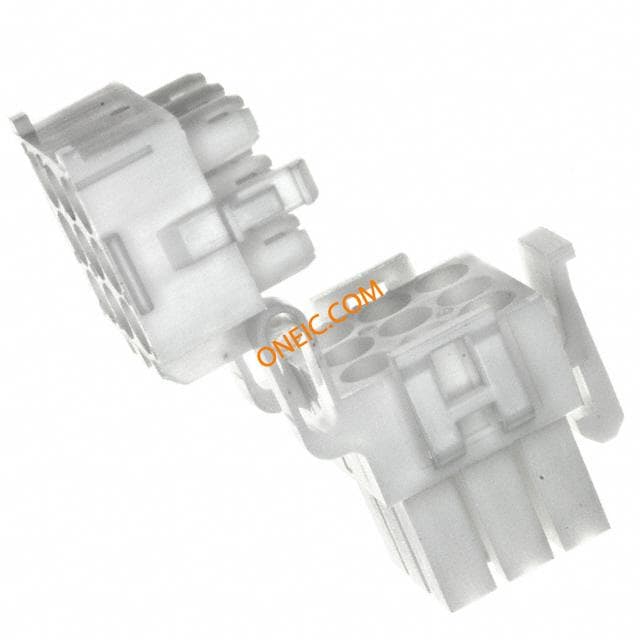

794194-1
te connectivity / amp
Conn Housing PL 9 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 9POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN PLUG 9 POS Conn Housing PL 9 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 94.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Crimp housing Pitch4.14 mm Poles 3 x 3 MATE-N-LOK II Mini Universal, 794194-1, TE Connectivity 09P MINI UMNL2 PLUG HSG UL94V0

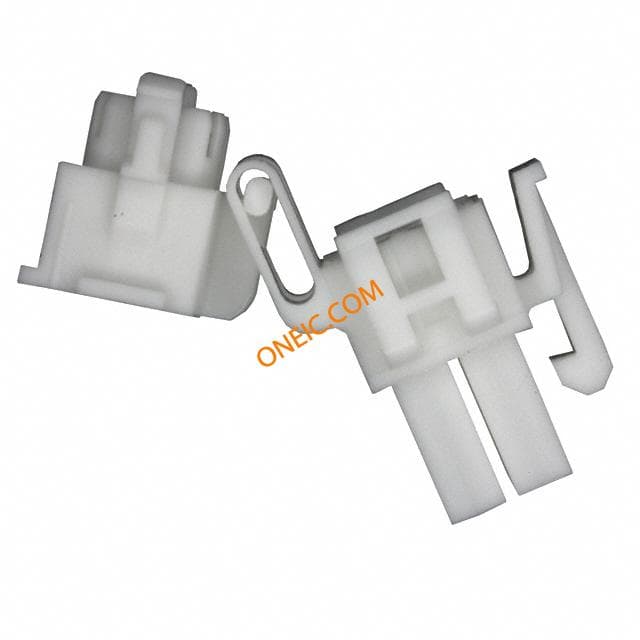

794188-1
te connectivity / amp
Conn Housing PL 4 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 4POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,2 row,4 Way Pin & Socket Connectors PLUG HOUSE 4P Conn Housing PL 4 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING IN-LINE, 4WAY CONNECTOR,SOFTSHELL,MINI-UNIVERSALMATE-N-LOK,4POSITION,NYLON,WHITE Crimp housing Pitch4.14 mm Poles 2 x 2 MATE-N-LOK II Mini Universal, 794188-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 2 行 4.14mm 节距 4 路 直 公 压接连接器外壳 04P MINI UMNL2 PLUG HSG UL94V0

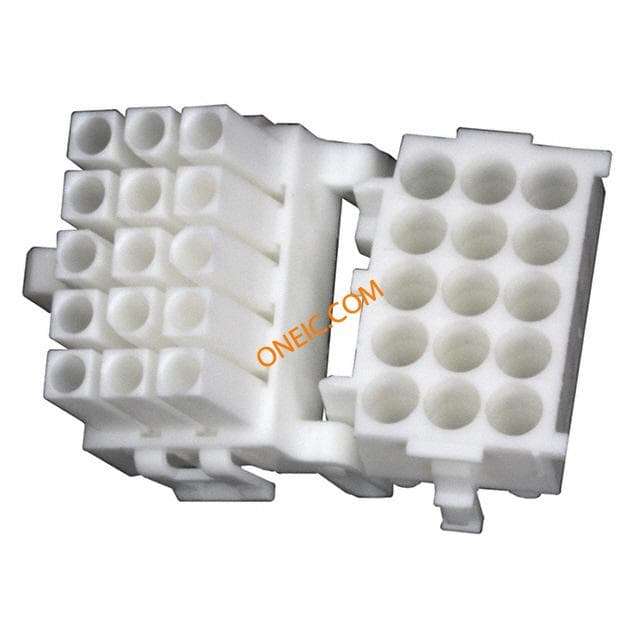

794204-1
te connectivity / amp
Conn Housing PL 15 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 15POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,matrix,15Wy Pin & Socket Connectors 15P MINI UMNL2 PLUG Conn Housing PL 15 POS 4.14mm Crimp ST Individual Product Highlights:HousingHousing Type = PlugMini-Universal MATE-N-LOK 24.14 mm CenterlineMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING,PLUG,MATRIX,15WAY Crimp housing Pitch4.14 mm Poles 3 x 5 MATE-N-LOK II Mini Universal, 794204-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 3 行 4.14mm 节距 15 路 直 公 压接连接器外壳 15P MINI UMNL2 PLUG HSG UL94V0

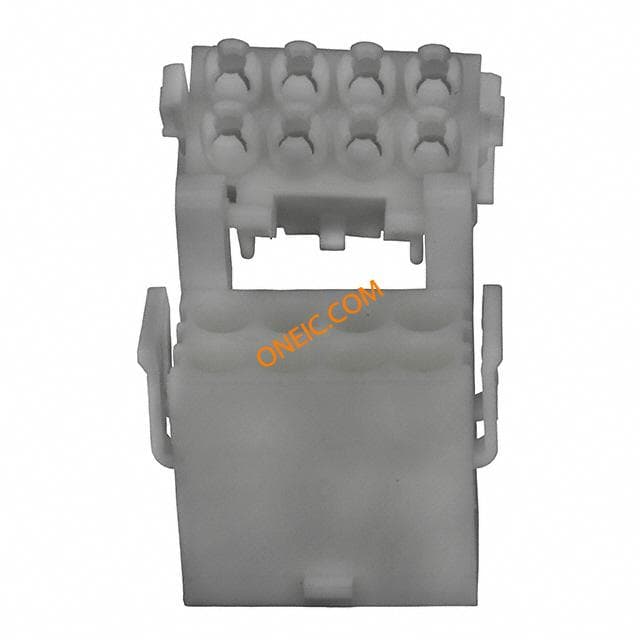

794193-1
te connectivity / amp
Conn Housing RCP 8 POS 4.14mm ST Loose Piece CONN CAP 8POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN CAP 8 POS Conn Housing RCP 8 POS 4.14mm ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 08P MINI UMNL2 CAP HSG UL94V0

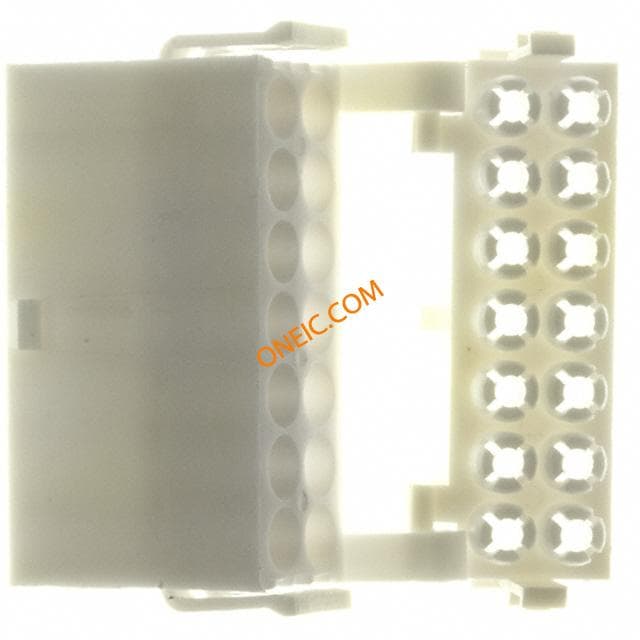

794203-1
