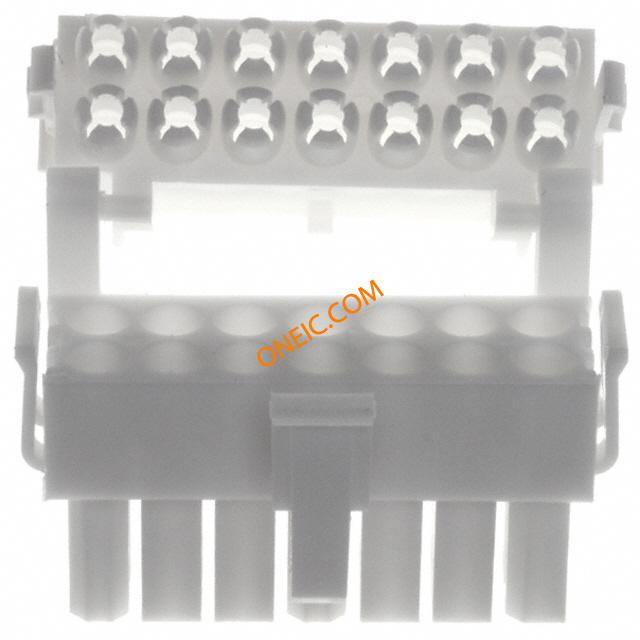

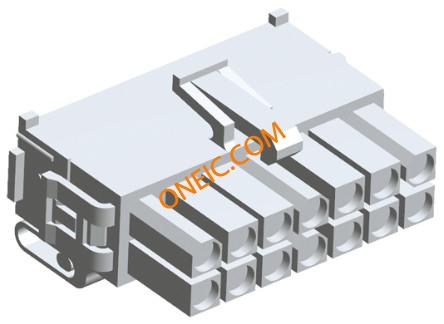

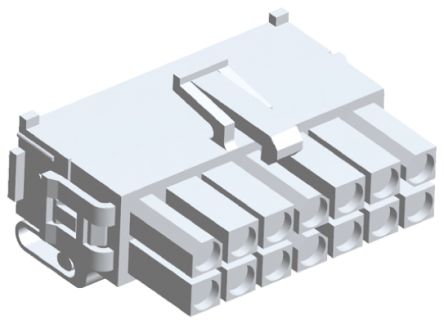

794202-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 14 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 14POS MINI UNIV-MATE 2 TE Connectivity Mini-Universal MATE-N-LOK 2 Series 4.14mm 14 Way 2 Row Straight Free Hanging Power Distribution Pin & Socket Connectors CONN PLUG 14 POS Conn Housing PL 14 POS 4.14mm ST Individual Product Highlights:HousingHousing Type = PlugMini-Universal MATE-N-LOK 24.14 mm CenterlineDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Housing14wayMiniUniversalMate-n-Lok Crimp housing Pitch4.14 mm Poles 2 x 7 MATE-N-LOK II Mini Universal, 794202-1, TE Connectivity TE Connectivity Mini-Universal MATE-N-LOK II 系列 2 行 4.14mm 节距 14 路 直 公 电缆安装 压接连接器外壳 14P MINI UMNL2 PLUG HSG UL94V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 300 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| 标准编号 | UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V ac | 极数 | 2 x 7 |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK 2 |
机械参数
| 颜色 | White | 深度 | 23.75 mm |
| 间距 | 4.14 mm | 宽度 | 17.25mm |
| 高度 | 17.25 mm | 长度 | 35.26mm |
| 密封型 | Not Sealed | 锁定类型 | Latch |
| 包装方式 | Bulk | 方向 | 直 |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触点形式 | Male or Female | 触头类型 | Male or Female |
| 引脚间距 | 0.163" (4.14mm) | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Tin | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 2 |
| 封装形式 | Plug | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 35.26 mm |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 14 | 接触件端接 | Crimp |
| 位数 | 14 | 兼容外壳尺寸（如TM-700等） | 小型通用 MATE-N-LOK 2 帽护套/印刷电路板插针接头 |
| 中心触点材料 | 4.14 x 4.14 [.163 x .163] | 典型触点布局 | Double-Row |
| 接触镀层厚度 | 0.99 [0.039] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mini-Universal MATE-N-LOK 2 |
| 产品子类型 | Housing | 连接方式 | Wire-Wire |
| 电路数 | 14 | 输出配置 | Free Hanging (In-Line) |
| 装配配置 | Without | 适用产品/相关产品 | Housing/PC Board Pin |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55...+105 °C |
