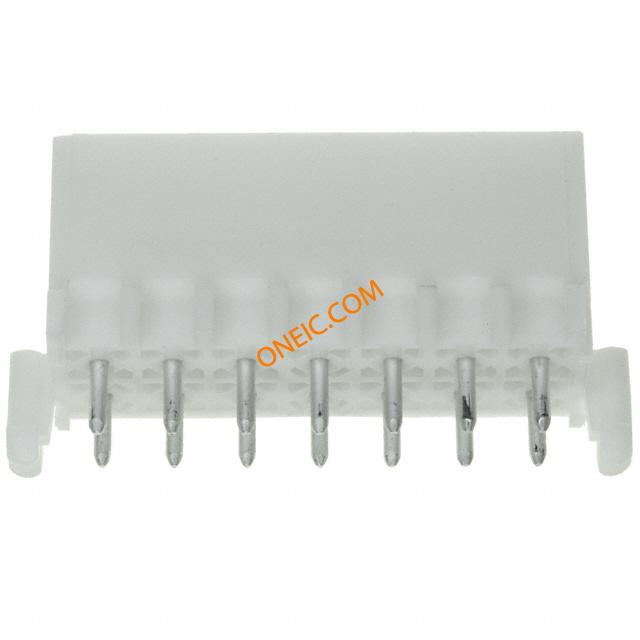

1-794067-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power PIN 14 POS 4.14mm Solder ST Thru-Hole 14 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 14POS STR DUAL .163 AU Headers & Wire Housings HEADER 14 POS GOLD DUAL ROW Conn Power PIN 14 POS 4.14mm Solder ST Thru-Hole 14 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 144.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, THT, 4.14MM, 14WAY 14P MINI UMNL HDR W/DH AU |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 其他名称 | A34925 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 高度 | 14.25 mm | 重量 | 0.02 |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 14 | 接触件端接 | :Through Hole Vertical |
| 位数 | 14 | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
文档与媒体
相关型号
770582-1
te connectivity / amp
Conn Housing M 14 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 14POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,14Way Pin & Socket Connectors FREE HANGING PLG 14P Conn Housing M 14 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 144.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, RECEPT MINI-UMNLPLGHSG,14PMINIUMNLPLUGHSG Pin housing Pitch4.14 mm Poles 2 x 7 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal, 770582-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.14mm 节距 14 路 直 公 电缆安装 压接连接器外壳 14P MINI UMNL PLUG HSG
