794074-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power PIN 14 POS 4.14mm Solder ST Thru-Hole 14 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 14CIRC DUPLEX Pin & Socket Connectors 14P MINI UMNL HDR W/O DH AU 14P MINI UMNL HDR W/O DH AU 14P MINI UMNL HDR W/O DH AU Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP |
| 分类 |
商业参数
| 标准包装规格 | 200 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
机械参数
| 颜色 | White | 间距 | 0.163" (4.14mm) |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 14 | 位数 | 14 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 系列 | Mate-N-Lok | 产品特性 | Board Lock |
| 产品子类型 | Receptacle Housings | 加载位置数 | All |
文档与媒体
相关型号

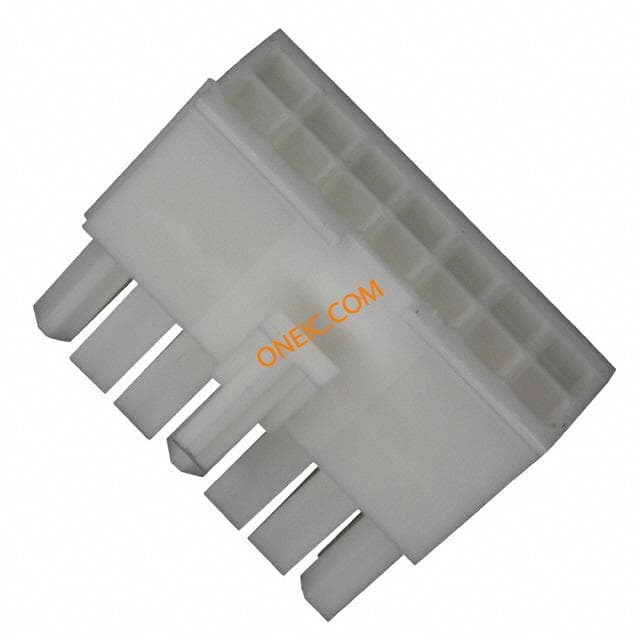

770582-1
