745553-1

点击放大查看

745553-1

制造商
TE Connectivity Ltd.
描述Connector Accessories Backshell and Cable Clamp Thermoplastic Individual D-Sub Backshells HDE CBL CLAMP KIT Cable Clamps CONN CABLE CLAMP COVER STR DB15 HDE CABLE CLAMP KIT
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

交货时间70 Days子类别Backshells
产品类别D-Sub Backshells标准包装数量Bulk
工厂包装数量1

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗180

机械参数

颜色Black外形尺寸(长x宽)2
材料（通用）Thermoplastic包装方式Individual Kit
屏蔽Unshielded出线方向180°
电缆类型Round外壳尺寸2
屏蔽类型No螺纹尺寸None
外壳镀层None电缆材料Thermoplastic
连接器类型滑入后盖屏蔽材料无
包装数量Individual Kit电缆端接方式Slide-on Back Cover
外径10.8 mm [ .425 in ]绝缘直径10.80 [0.425]
位数15衬套/护套类型Without
兼容外壳尺寸（如TM-700等）插头/母端

产品信息

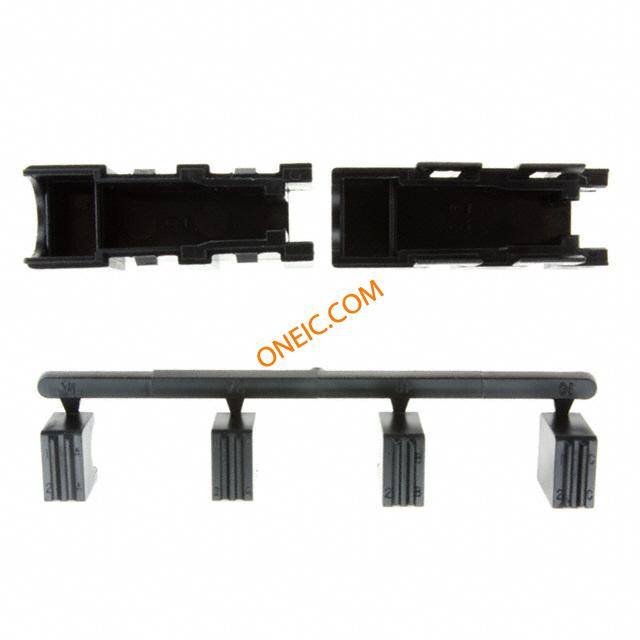

备注Each kit is comprised of two cover halves (F and M) and an assortment of cable类型Backshell and Cable Clamp
硬件配件Strain Relief产品子类型Backshell/Cable Clamp
附件类型Two Piece Backshell射频系列/标准745553

文档与媒体

在线文档
745553-1?RQPN=745553-1
