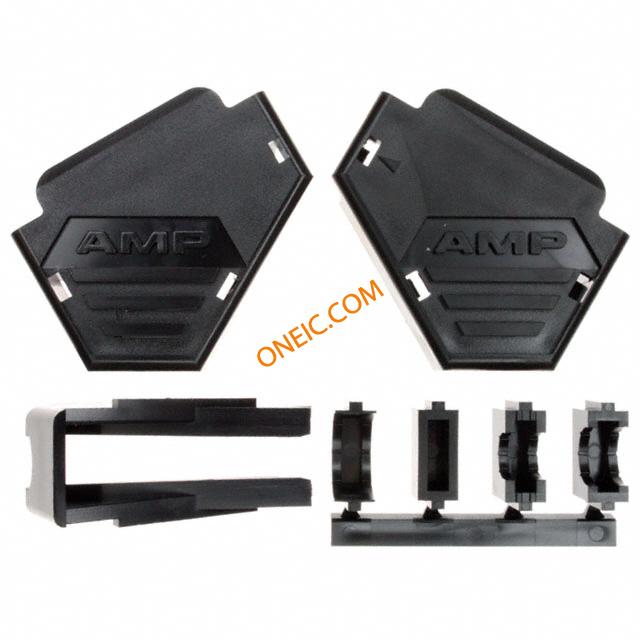

745306-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Backshell and Cable Clamp D-Sub Backshells CABLE CLAMP KIT SZ 3 Cable Clamps CONN BACKSHELL STR DB25 PLASTIC Backshell/Cable Clamp 90°/180° 3 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90°/180° 3 Shell Size Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Straight/90° ExitStraight(180°)/90° Cable Exit AngleCable Insulation Diameter = 13.97 mmShell Size = 3Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL,CABLECLAMPKIT,HDE-20,90DEG.,SIZE3,AMPLIMITE |
| 分类 |
商业参数
| 交货时间 | 70 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Black | 材料（通用） | Thermoplastic |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 出线方向 | Straight(180°)/90° | 电缆类型 | Round |
| 外壳尺寸 | 3 | 屏蔽类型 | No |
| 螺纹尺寸 | None | 外壳镀层 | None |
| 电缆材料 | Thermoplastic | 外壳材料（壳体） | Thermoplastic |
| 包装数量 | Individual Kit | 电缆端接方式 | Straight/90° Exit |
| 绝缘直径 | 13.97 [0.550] | 位数 | 25 |
| 衬套/护套类型 | Without | ||
产品信息
| 备注 | Each cable clamp assembly includes a yoke, male panel, female panel and four ca | 类型 | Backshell and Cable Clamp |
| 产品特性 | Assembly Kit | 硬件配件 | Cable Clamp |
| 产品子类型 | Backshell/Cable Clamp | 附件类型 | Two Piece Backshell |
| 射频系列/标准 | 745306 | ||
