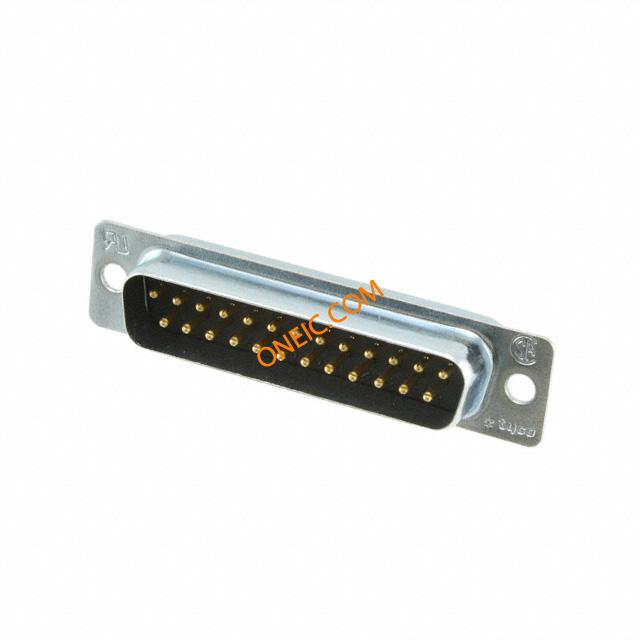

5-747912-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 25 POS 2.77mm Solder Cup ST Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors 25 PLUG SOLDER CUP Standard Cable Connectors CONN D-SUB PLUG 25POS SLD CUP AU Conn D-Subminiature PIN 25 POS 2.77mm Solder Cup ST Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 25PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub AMPLIMITE25PLUGSOLDERCUPSTDDUPL,ROHS |
| 分类 |
商业参数
| 其他名称 | 57479124 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 2.77 mm |
| 包装方式 | Tray | 绝缘类型 | Insulated |
| 外壳尺寸 | 3 | 端接方式 | Solder Cup |
| 触点尺寸 | 20 | 触头类型 | Solder Cup |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 外壳镀层 | Blue Zinc | 连接器类型 | Solder |
| 接触镀层 | Gold over Nickel | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 接地凹痕 | Without | 端接样式 | Solder |
| 触点数 | 25 | 绝缘材料 - 类型 | Polybutylene Terephthalate (PBT) |
| 位数 | 25 | 外壳尺寸-插件 | Full Metal Shell |
| 外壳材料及表面处理 | Steel, Blue Zinc Plated | 接触镀层厚度 | 8µin (0.20µm) |
| 线规或范围 - AWG | 0.5 - 0.6 [20] | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 类型 | D-Subminiature | 等级 | Standard |
| 连接器性别 | PIN | 系列 | HD-20 (Solder Cup) |
| 产品特性 | Grounding Indents | 产品子类型 | Connector |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
